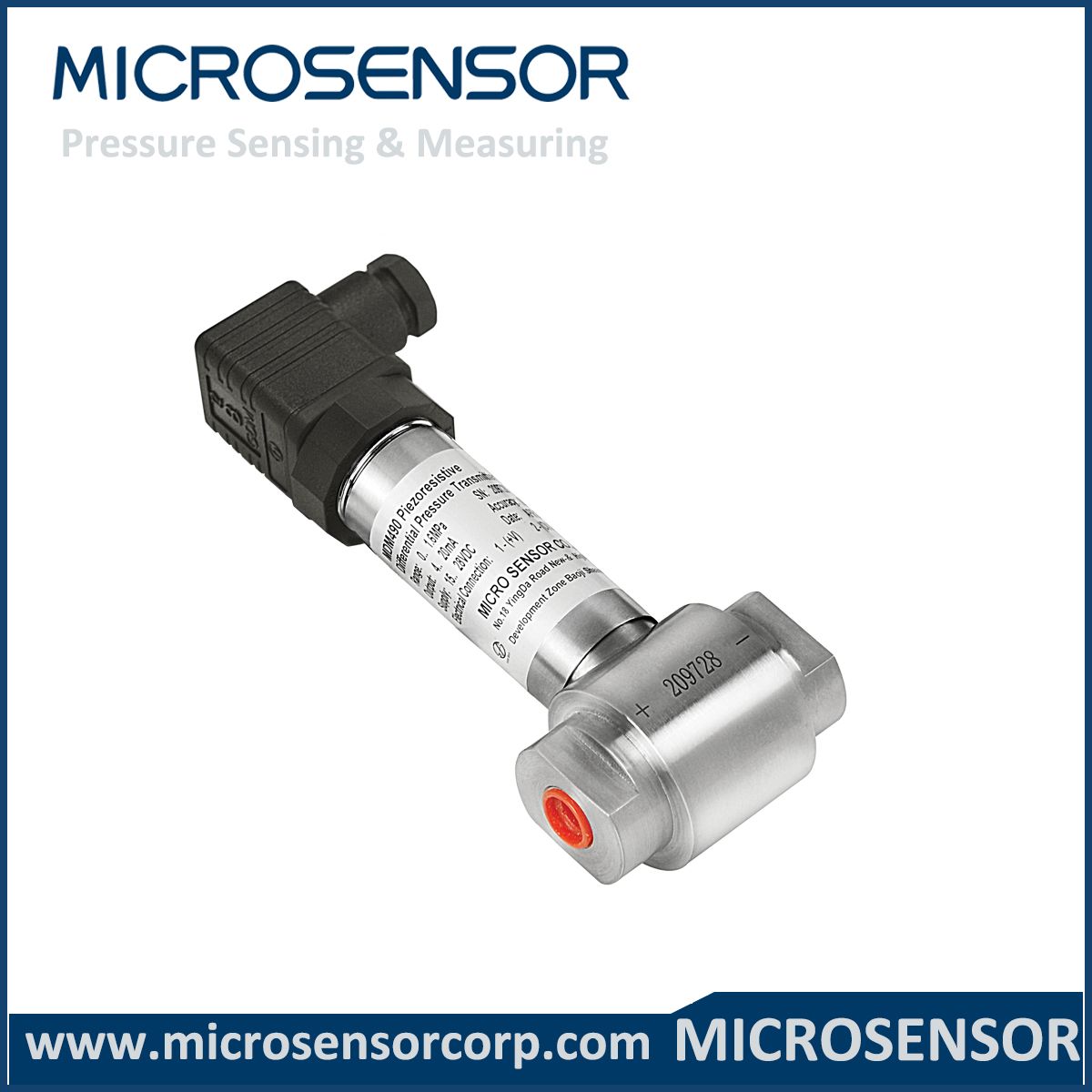

2-Wire Low Range Differential Pressure Sensor MDM490

Name: 2-Wire Low Range Differential Pressure Sensor MDM490
Brand: all-electronics-online.com
SKU: 838761785
Availability: InStock
Rating: 4.7 (131 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T,Western Union

Contact Supplier

Showroom Product Company Profile

2-Wire Low Range Differential Pressure Sensor MDM490

Features:

1.Full-sealed construction;
2.IP65;
3.Laser-welded;
4.Compact size;
5.Compensated temperature;
6.Zero and span adjustable outside;
7.Piezoresistive differential pressure sensor;

Certificates:

1.CE;
2.RoHS;
3.CCS;
4.ISO

Applications:

1.Petroleum;
2.Chemical industry;
3.Power;
4.Hydrology

Specification

Range code	0A	02	03	07	08	09	10	12	13
Unit	kPa						MPa
Measure range	0~35	0~70	0~100	0~200	0~350	0~700	0~1	0~2	0~3.5
+orvepressure	70	150	200	400	700	1400	2.0	4.0	7.0
-overpressure	35	70	100	200	350	700	1.0	1.0	1.0
Max.static pressure	≤20MPa

		Min.	Typ.	Max.	Unit
Accuracy	0~100kPa		0.25	0.5	%FS
	200~3500kPa		0.25	0.5
Zero Thermal error	0~100kPa		0.75	1.25	±%FS, @25ºC
	200~3500kPa		0.5	0.75
FS Thermal error	0~100kPa		0.75	1.25
	200~3500kPa		0.5	0.75
Stability	≤200kPa	0.5			%FS/year
	≤3500kPa	0.2
Static pressure effect		0.05			±%FS, each 100kPa
Compensation temp.		0~50			ºC
Operation temp.		-10~80
Storage temp.		-40~120

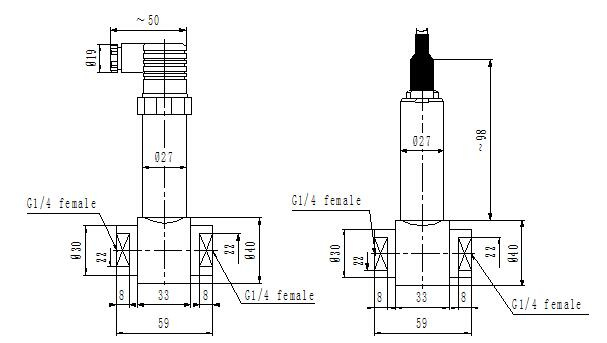

Outline Construction: (Unit:mm)

Plug Connection type Cable Connection

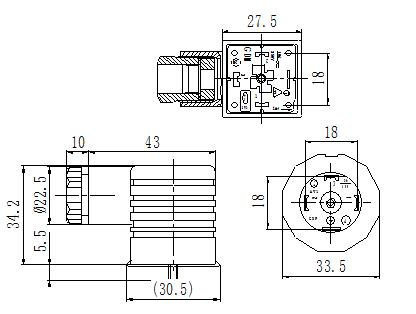

Plug Outline and Pin Arrangement

Order guide:

MDM490

Piezoresistive Differential Pressure Transmitter

Code

Pressure range: kPa or MPa

X[0~X]
kPa or MPa

Code

Pressure range
kPa

overpressurekPa

Code

Pressure
Range MPa

Overpressure MPa

0~35

0~0.7

1.4

0.7

0~70

150

0~1.0

2.0

1.0

0~100

200

100

0~2.0

4.0

1.0

0~200

400

200

0~3.5

7.0

1.0

0~350

700

350

Code

Output signal

4~20mADC

1~5VDC

0~5VDC

0~10mADC

0~20mADC

0~10VDC

Code

Construction material

Diaphragm

Pressure port

Housing

SS 316L

Code

Others

G1/4 female

Plug connection

Cable connection Default length: 1.5m

31/2LCD digital indicator(only 4~20mADC)

31/2LED digital indicator (only 4~20mADC)

Intrinsic safe version ExiaIICT6(>35kPa) /ExiaIIBT6Ga(<=35kPa)

Ship-use

Prod Model:	MDM490
Measurement Range:	0~35kpa...3.5MPa
Accuracy:	+-0.25%Fs(Typ.)
Protection:	IP68
Storage Temp:	-40~125c
Media Temperature:	-10~80c
Housing:	Aluminuim Alloy
Diaphragm:	Stainless Steel
Overpressure:	1.5 Times Fs
Display:	LED
Long Term Stability:	<=+-0.5%Fs/Y
