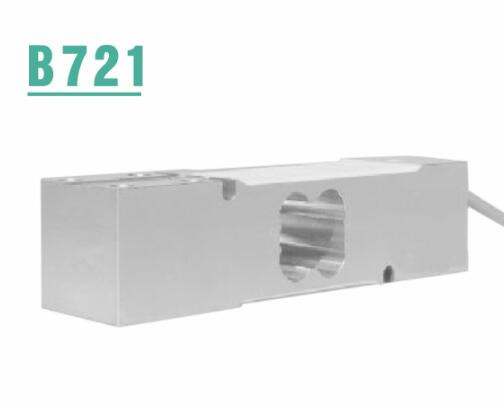

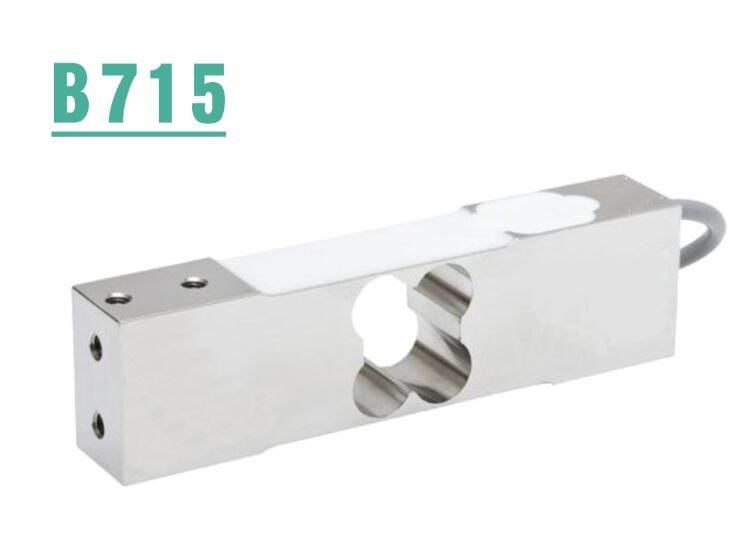

200kg Aluminum Weighing Scale Load Cell

Name: 200kg Aluminum Weighing Scale Load Cell
Brand: all-electronics-online.com
SKU: 838831785
Availability: InStock
Rating: 4.3 (68 reviews)

Price:	US $ 18-20/Piece
Min Order:	2/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

1. Name: 8,15,30,50,100,200kg high accuracy aluminum single point Load Cells
2. Material: Aluminum

3. Capacity:200g to 3kg
4. Accuracy: C3
l Made of aluminum alloy.
l High accuracy, high side load tolerance
l Easy to install, IP65 protection
l Mainly used for electronic scales, electronic balance, price computing scales and industrial weighing systems

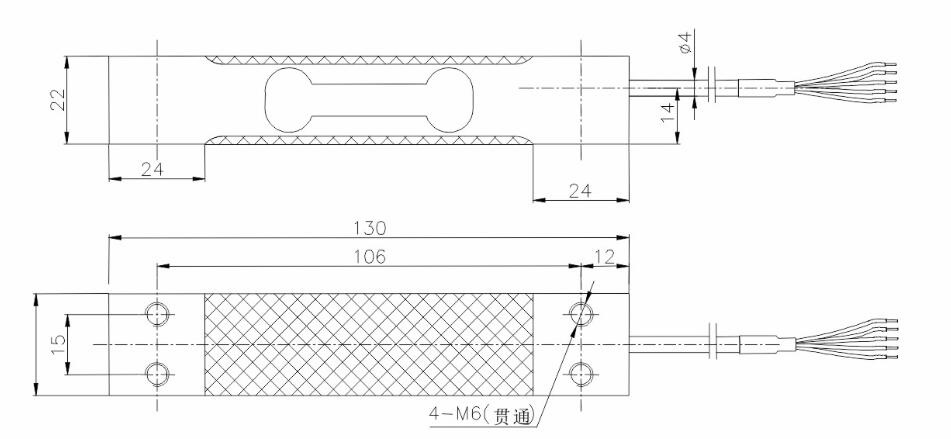

Design

5. Datasheet

Number	Specifications	Technique
1	Capacity	3,6,10,20 ,30kg
2	Accuracy class	C3
3	Rated output	2.0±10%mV/V
4	Zero balance	±2%F.S.
5	Non-linearity	0.015%F.S.
6	Hysteresis	0.015%F.S.
7	Repeatability	0.02%F.S.
8	Creep(30min)	0.0166%F.S.
9	Temp.effect on output	0.02%F.S./10ºC
10	Temp.effect on zero	0.02%F.S./10ºC
11	Input impedance	405±10Ω
12	Output impedance	350±5Ω
13	Insulation	≥5000MΩ/100VDC
14	Recommended excitation	5~15V
15	Maximum excitation	20V
16	Compensated temp range	-10~40ºC
17	Operation temp range	-20~60ºC
18	Safe overload	150%F.S.
19	Ultimate overload	300%F.S.
20	Cable size	Φ4×3000mm
21	Weight approx.	0.3kg
22	Material	aluminum alloy
23	IP Class	IP65
24	Max.platform size	300mm×300mm

It is made of aluminum with long-term stability. Mainly used for electronic scales, electronic balance, weigh machine, weighing packing machine, weighing batcher, price computing scales and industrial weighing systems.
www.bransensor.com

Prod Model:	200kg
Custom:	Size and Accuracy Could Be Customed
Applications:	Special for Weighing Scales
Key Features:	High Accuracy with Mini Dimension
Capacity:	8,15,30,50,100,200kg
Pattern:	Single Point
Out-Wire:	5 Wires
Feature:	High Precision
Production Process:	Strain Gauge
Material:	Aluminum
