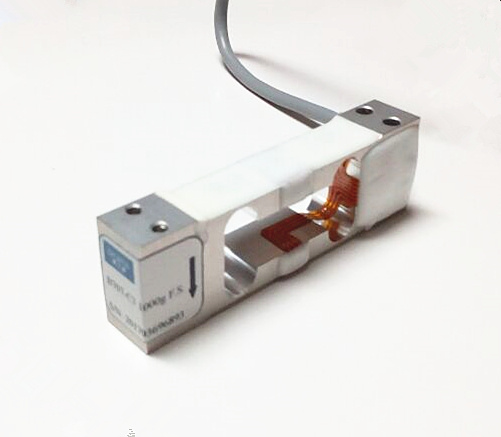

Miniature Single Point Load Cell (B707)

Name: Miniature Single Point Load Cell (B707)
Brand: all-electronics-online.com
SKU: 689470211
Availability: InStock
Rating: 5 (115 reviews)

Price:	US $ 40/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

1. Name: B707 Single Point Load Cell,Precise Weighing of Small Masses up to 3 kg

2. Details

This small single point load cell is made of aluminum and features class C3 accuracy for weighing loads up to 3 kg. It is based on proven strain-gauge technology and is thus very precise. The load cells are available in different maximum capacity ranges. The B707 is ideal for batching, filling, and checkweighing of small packages, for instance, in the pharmaceutical or cosmetics as well as in the food and beverage industries. The single point load cell provides extremely precise measurement results, while offering an excellent price to performance ratio.

Accuracy Class: C3 according to OIML R60
Mindestteilungswert: bis 0,05 g
Maximum capacities: 0,3 kg up to 3 kg

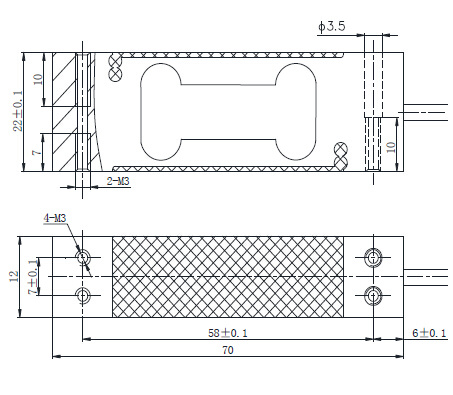

3. Design

4. Technical Datasheet

Number	Specifications	Technique
1	Capacity	300g,500g,1,1.5,2,3,4 kg
2	Accuracy class	C3
3	Rated output	0.9±10%mV/V(300g,500g) 2.0±10%mV/V(1~5kg)
4	Zero balance	±2%F.S.
5	Non-linearity	0.015%F.S.
6	Hysteresis	0.015%F.S.
7	Repeatability	0.015%F.S.
8	Creep(30min)	0.0166%F.S.
9	Temp.effect on output	0.017%F.S./10ºC
10	Temp.effect on zero	0.02%F.S./10ºC
11	Input impedance	405±5Ω
12	Output impedance	350±3Ω
13	Insulation	≥5000MΩ/100VDC
14	Recommended excitation	5V
15	Maximum excitation	10V
16	Compensated temp range	-10~40ºC
17	Operation temp range	-20~60ºC
18	Safe overload	150%F.S.
19	Ultimate overload	300%F.S.
20	Cable size	Φ4×350mm
21	Weight approx.	0.1kg
22	Material	aluminum alloy
23	IP Class	IP65
24	Max.platform size	200mm×200mm

5. Key features

(1) High accuracy

Weighing system with C3 accuracy class up to 3,000 divisions
Very small temperature coefficient of zero up to 0.0140%/10K, corresponding to a ratio of minimum verification interval Y = 10,000
Off-center load compensation

(2) Excellent protection

IP65 degree of protection
Shielded connector plug
CE-compliant immunity to electromagnetic interference
Temperature compensation
Nominal (rated) temperature range from -10 to +40 °C

(3) Plug & Weigh

Fast integration through 1.5-m-long connection cable with edge connector
Compact design, ideal for platform sizes up to 200 x 200 mm
Available with four maximum capacities for weighing extremely small masses (0.3 kg, 0.5 kg, 1kg, 2 kg, 3 kg)

Very high precision is the main advantage of this load cell. www.bransensor.com

Prod Model:	B707
Feature:	Strain Gauge
Material:	Aluminum
Certification:	SGS
