Sartorius Pr6221 Truck Scale Load Cell (wighing bridge-BP-7)

Name: Sartorius Pr6221 Truck Scale Load Cell (wighing bridge-BP-7)
Brand: all-electronics-online.com
SKU: 687679611
Availability: InStock
Rating: 4.5 (31 reviews)

Price:	US $ 160-180/Piece
Min Order:	4/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

Prod Model:	BP-7
Capacity:	50t
Out-Wire:	5 Wires
Feature:	High Accuracy
Production Process:	Strain Gauges

Product Description

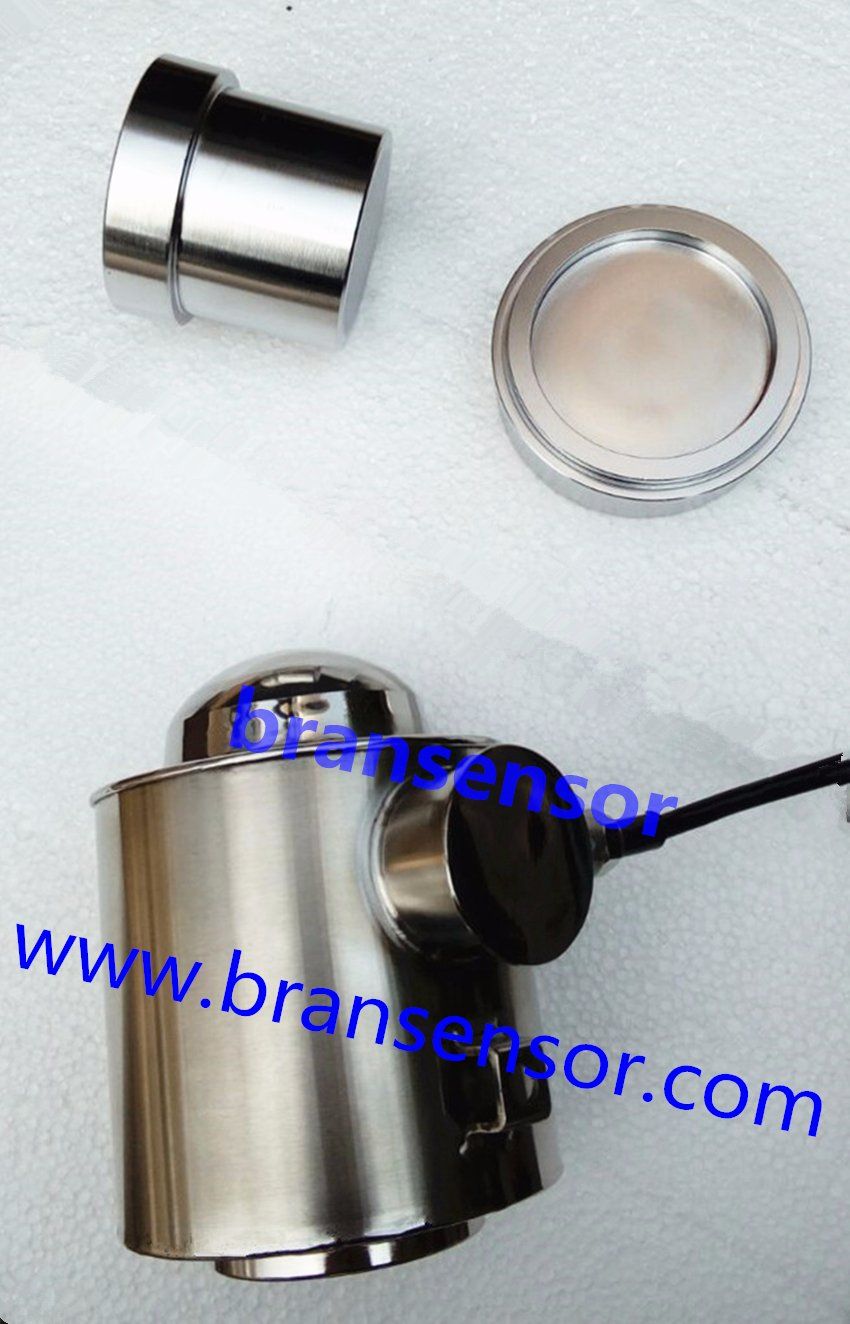

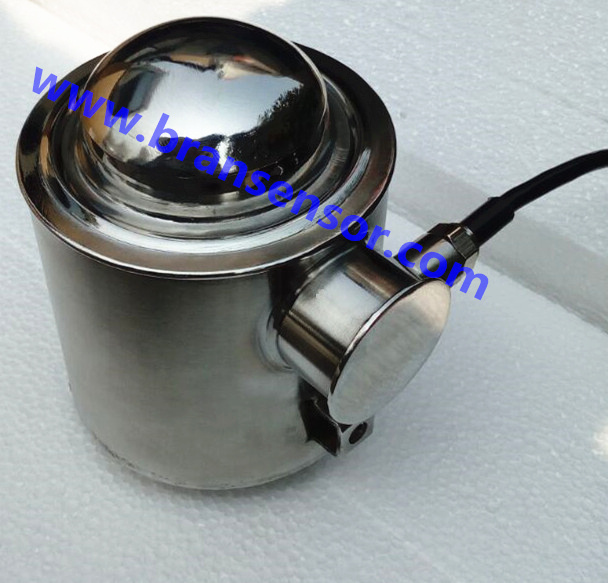

Product Name: WeighBridge Load Cells Replace Sartorius PR6221 Truck Load Cell
Model: BP-7
Material: Stainless Steel
Cpacity: 20t, 30t, 50t

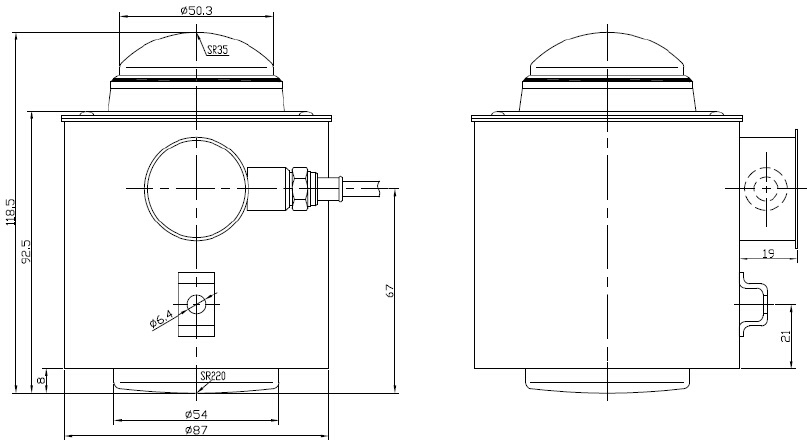

Design

Datasheet

Number	Specifications	Technique
1	Capacity	20t, 30t, 50t
2	Accuracy class	C3
3	Rated output	1.0±0.01mV/V 2.0±0.01mV/V
4	Zero balance	<±1%F.S.
5	Non-linearity	<±0.02%F.S.
6	Hysteresis	<±0.02%F.S.
7	Repeatability	<±0.01%F.S.
8	Creep(30min)	<±0.02%F.S.
9	Temp.effect on output	<20PPM/ºC of Applied Load
10	Temp.effect on zero	<20PPM/ºC of Applied Load
11	Input impedance	1080±10Ω/385±10Ω
12	Output impedance	1010±5Ω/350±5Ω
13	Insulation	≥5000MΩ/100VDC
14	Recommended excitation	10V DC/AC
15	Maximum excitation	20V DC/AC
16	Compensated temp range	-10~50ºC
17	Operation temp range	-20~60ºC
18	Safe overload	150%F.S.
19	Ultimate overload	300%F.S.
20	Cable size	Φ5.4×16000mm
21	Material	Stainless steel
22	IP Class	IP68

Main Features

Ideally suited to use in weighbridges
Standardized, maintenance-free, extremely compact design
Extremely robust design in hermetically sealed stainless steel housing
Special strain-gauge technology for significantly improved lightning protection
High overload range (up to 150 %)
100 % compatible with PR 6221
Reaches stability quickly which ensures short weighing times
High EMC compatibility (10 V/m)
Additional reliability thanks to diagnostic function

This load cells could replace Satorious PR6221 load cells directly with same design and performance. This is special for truck scales clients. Looking forward to your favorable reply.
www.bransensor.com

What you could get from Brans?

Load Cells, Miniature and sub-miniature force sensors, Pressure Transducers/sensors, Torque Transducers, Temperature sesensors, Flow senesors, Displacement Transducers (LVDTs), Digital Gauges, Strain Gauges, Instrumentation for Test, amplifiers and data acquisition systems as well as software for structural durability investigations, tests and analysis, Measurement and Other Applications.

Why choose Brans?

Brans cooperate with HBM, FLINTEC, METTLER TOLEDO, Honeywell, Vishay and other famous brand electronic measuring instruments and system. We could learn and get the most advanced technology and news of procedures. Good manufactures means good products.

We could OEM for miniature and sub-miniature load cells with tension or compression; Big capacity load cells/sensors Brans also could make it with good quality material.

Brans products (load cells, force sensors, amplifiers… ) have been certified per ISO9001, OIML, CE, RoHS, NETP AND ATEX. Brans could promise you the best quality for measuring products.

Who Brans cooperate with?

Brans have developed solutions for a wide range of industries including automotive, aerospace, military and defense, oil and gas, R&D and material/test labs, machine and automation equipment designers and builders, off highway and heavy equipment manufacturers, medical device manufacturers, semiconduct or fabricators, utilities and energy companies, marine equipments and shipbuilding.
