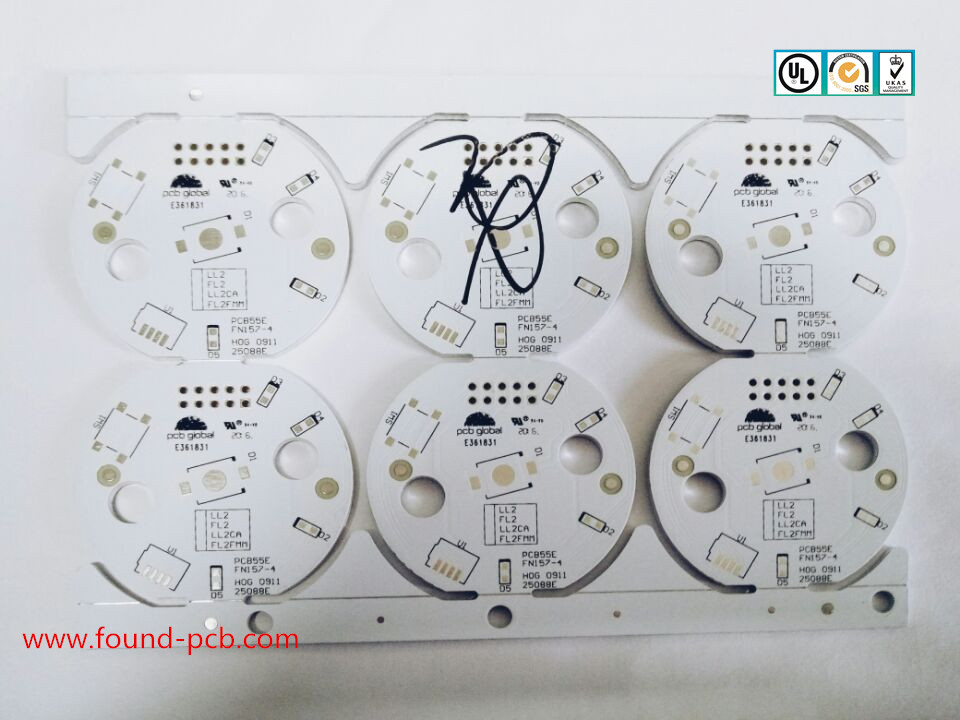

2017 High Quality Aluminium Based/ Metal Core PCB
| Price: |
US $ 1/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Paypal |
Layers: 1-22
*Base material: FR-4 CEM-1
*Thickness: 0.2-5.0mm
*Solder mask: Green, black, red, yellow, white
*Min. Line width: 0.075mm
*Min. Line space: 0.075mm
*Min. Hole diameter: 0.1mm
*Surface treatment: Immersion gold, OSP. Lead free HASL.
*Blind/buried via holes: OK
*lead time: Seven to ten days (HDI: About 30 days)
We can also make quick pcb. As customers plates copied from the PCB, PCB design, prototype production, production, processing, and other SMT one-stop service.
Single-double sides pcb delivery time: 12-24 hours
4 layer- 8 layer pcb delivery time: 48-96 hours - Payment: T/T in advance (Western Union , payple is welcomed)
2. Production lead time 100PCS: 5-7days, 500~1000PCS: 7-10days, above 1000PCS 15-20days.
3. Sample can be delivered in 3days
4. Shipping freight are quoted under your requests
5. Shipping port: Shen zhen,Mainland China
6. Discounts are offered based on order quantities
7. MOQ: 1PCS
Equipment | Technical capability & support |
| |
| FOUND aims to be the leading PCB manufacturer, and provide quality PCB products for electronic industry. |
| |
| Layers | 1-16 layers | Min Board Thickness(2-layer) | 0.2mm | | Max Board Size | 635 × 1100mm | Min Board Thickness(4-layer) | 0.6mm | | Min Board Size | 20 × 30mm | Min Inner-layer Thickness | 0.1mm | | Min Trace | 0.1mm | Min Annular Ring | 0.1mm | | Min Space | 0.1mm | Min Hole Location Tolerance | ±0.075mm | | Min Hole Size | 0.2mm | Min Hole Size Tolerance | ±0.05mm | | Board Wrap | ≤ 1° | Min Outer Dimension Tolerance | ±0.1mm | | Solder Mask | Green, Yellow, Red, Black, Blue, White | | Surface Finish | HAL, HASL, Immersion Gold, Immersion Silver, Plating Gold, Plating Nickel, Plating Silver, Gold Finger, OSP | | Board Material | FR-4, High Tg FR-4, Halogen Free FR-4, Thick Copper FR-4, Aluminium Based, Rogers, Taconic | | Acceptable file | Gerber file(RS-274-X or RS-274-D with aperture list and drill files),Protel,PADS,POWERPCB,AutoCAD,ORCAD | | CAM software | Genesis, CAM350 |
|
| |
| Service for productoion |
| |
| FOUND employs and develops a team of experienced management directors and efficient production workers, with its sustainable development, career planning, advanced training-system and satisfactory welfare for all staff. On the other hand, FOUND strives to improve quality and lead time through management and technology innovation. |
| Standard leatime |
| Double sides | 4WD | | 4 layers | 5WD | | 6 layers | 6WD | | 8 layers | 7WD | | 10 layers | 8WD | | 12 layers | 8WD | | 14 layers | 9WD | | More than 16 layers | Up to difficulty |
|
| |
| Competitive Price |
| FOUND puts many PCB prototype and sample jobs on one panel, and produces them together. And our experienced management team keep the management and production cost under controlled. These advantages provide enough profits to FOUND, as well as greatly reduce customer's purchase cost. |
| |
| FOUND works with customers to reduce their purchase cost, by our rich experience in management and manufacture, maximized utilization of materials and facilities, and well-trained operational workers. FOUND's price can be as low as 20% only of some other competitors on some cases. |
| Management Innovation | Raw Material Utilization Rate | Facilities Utilization Rate | Labor Efficiency | | FOUND | 100% | 100% | 95% | | Competitors | 50% | 30% | 50% | | Values | Maximized raw material utilization reduces the material cost greatly, and enables FOUND to use better raw materials. | Maximized facilities utilization improves FOUND's production efficiency and shorten the lead time. | High labor efficiency reduces labor cost, and enables FOUND to provide better training and welfare for the workers. | | Customer Benefits | Better quality with better raw materials. | Saves valuable time and money for customer. | Well trained and efficient worker improves quality and lead time. |
|
|
| Others service can be provided |
Quick response, FOUND will reply Customer's any enquiry within 2 hours;
More than 180 type of PCB can be worked out Every day;
24 hours technique Support;
24 hours Engineering Gerber files treatment.
24 hours English Engineering Questions Confirmation by E-mail.
Experienced Impedance Designer.
Supply the best project fit for production customized |
| Prod Model: |
FD-BOARD |
| Type: |
Rigid Circuit Board |
| Dielectric: |
FR-3 |
| Material: |
Fiberglass Epoxy |
| Flame Retardant Properties: |
V0 |
Found PCB, established in 2005, Shenzhen Found Printed Circuit Board Co., Ltd. is part of Found group. Found PCB dedicated to provide one-stop service, to meet highest technology, quality and quick turn over challenges with lowest cost.
Shenzhen Found Circuit Board Co., Ltd supply all kinds of PCBs more than 10 years. Products including Rigid PCB (1-20 layers), flex PCB(1-4 layer), metal core PCB, Rigid-Flex PCB, especially in the metal core PCB, they use widly in the LED lighting.
A lot of comepays from Europe and North American buy from Found, cause we are the source, we can offer very good price, we think we can save a lot of your purchasing cost.
We also offer PCB solution. Such as Rigid-flex PCB, a lot of factories in China can not made this kind of the rigid-flex PCB. But Found is good at this...
With several year's rapid development, the production capability of our factory reachs 25, 000 square meters with over 500 employees and 180, 000 sq. M production area. Found PCB has been certified by International Quality System IS09001, ISO14001, TS16949 and UL (E361831).
We welcome the every opportunity to working for you. We have the good name in the PCB market.
