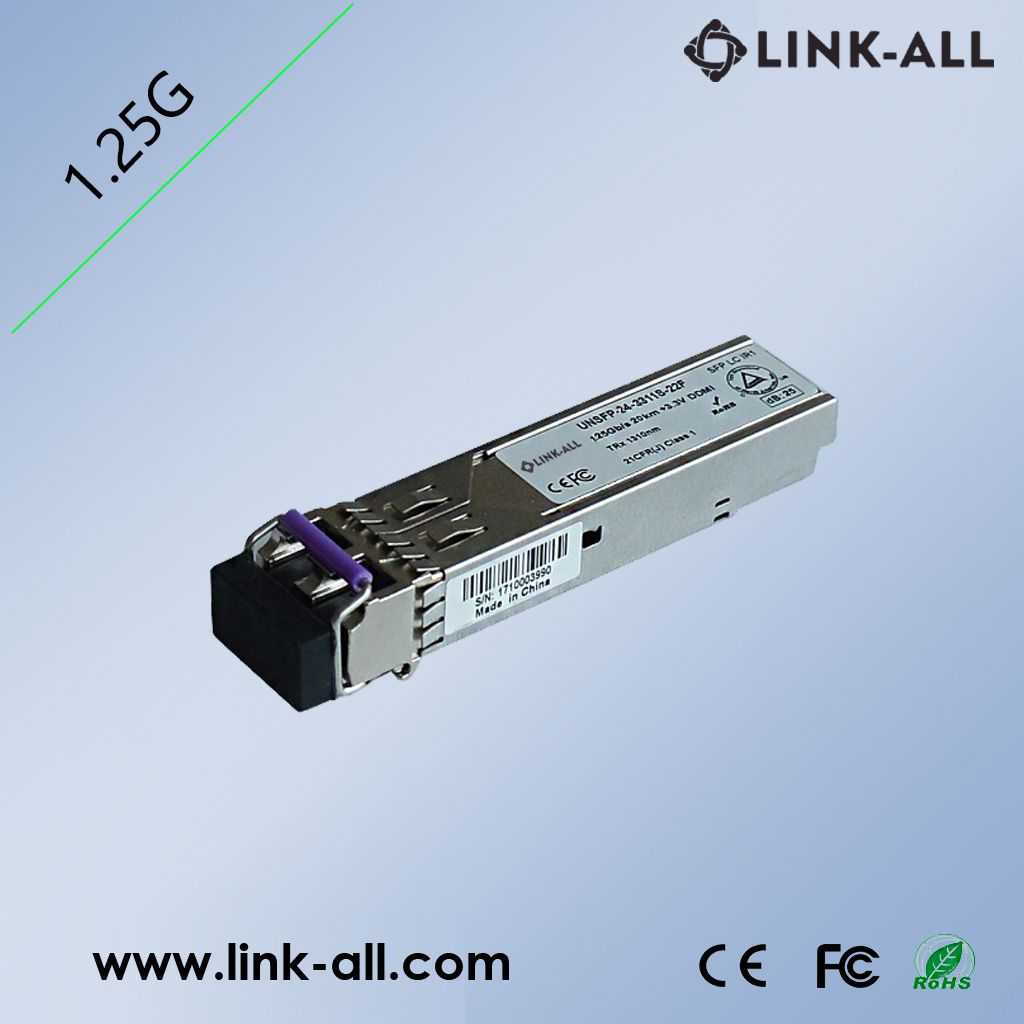

20km 1.25GB/S Dual Fiber Single-Mode SFP Optical Transceiver

Name: 20km 1.25GB/S Dual Fiber Single-Mode SFP Optical Transceiver
Brand: all-electronics-online.com
SKU: 837204535
Availability: InStock
Rating: 4.9 (137 reviews)

Price:	US $ 8.5/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	UNSFP-24-0571S-22F
Product Type:	Single-Mode Optical Transceiver
Speed Rate:	1.25g
Wavelength:	1310 Nm
Fiber Type:	Dual Mode Fiber
Connector Type:	LC
Transmitting Distance:	20 Km
Module Type:	SFP
Voltage:	3.3 V
Package:	Blister Box
Usage:	Ge, Fiber Channel, Router/Server Interface
Type:	Wired
Support Network:	Ethernet
Information Content:	Data
Certification:	RoHS
Condition:	New

Product Description

1.25Gb/s Single Mode SFP 20km Optical Transceiver

Features

Compliant with Specifications for IEEE802.3Z
Multi-Source Package with Duplex LC Connector
Up to 1.25Gb/s Data Links
Single +3.3V Power Supply
Hot-Pluggable
Compliant with Bellcore TA-NWT-000983
Eye Safety Designed to Meet Laser Class1, Compliant with IEC60825-1
RoHS Compliant Products

Applications

Gigabit Ethernet
1x Fiber Channel
Switch to Switch Interface
Switched Backplane Applications
Router/Server Interface
Other Optical Links

Specification

Transmitter

Parameter	Symbol	Min.	Typical	Max.	Unit
Data Rate	B	-	1250	-	Mb/s
Output Center Wavelength	λ_C	1480	1550	1580	nm
Output Spectral Width	△λ(-20dB)	-	-	1	nm
Average Output Power	P_o	0	-	+5	dBm
Extinction Ratio	E.R.	9	-	-	dB
Data Input Voltage-High	V_IHS	V_cc-1.16	-	V_cc-0.89	V
Data Input Voltage -Low	V_ILS	V_cc-1.82	-	V_cc-1.48	V
Supply Current	I_CC	-	90	130	mA
Output Optical Eye	Compliant with IEEE802.3Z
Receiver
Parameter	Symbol	Min.	Typical	Max.	Unit
Receive Sensitivity	P_min	-	-	-32	dBm
Maximum Input Power	P_MAX	-3	0	-	dBm
Signal Detect Threshold-De-Assert	S_D	-	-	-33	dBm
Signal Detect Threshold-Assert	S_A	-43	-	-	dBm
Hysteresis	-	-	2.0	-	dBm
Output High Voltage	V_OH	V_cc-1.03	-	V_cc-0.89	V
Output Low Voltage	V_OL	V_cc-1.82	-	V_cc-1.63	V
Operating Wavelength	λc	1100	-	1600	nm
Supply Current	I_CC	-	80	110	mA

Ordering Information
