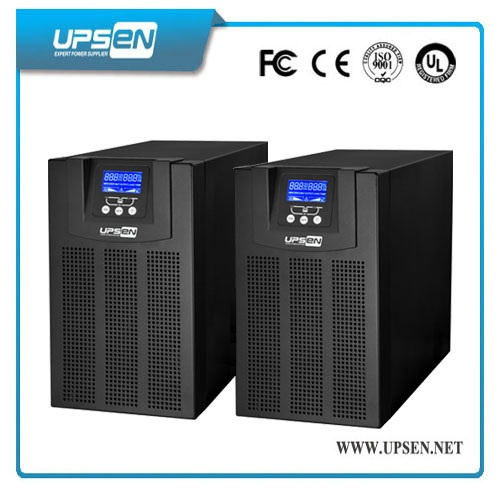

220v 50/60Hz High frequency online UPS with Advanced MCU Tech
Model: High Frequency Online UPS Queen Star Series 1K-3Kva (1ph in/1ph out)
Applications
Telecom systems,Monitoring,plants,energy stations,Automation systems,Data processing systems,Renewable energy systems (solar, wind and hydro-electric)Emergency lighting systems etc.
Key Features:
1: Voltage regulator circuit
2: Pure Sine Wave, Double Conversion Online
3: Advanced MCU microprocessor control technology
4: Input N/L Inspection function and date line protection
5: Humanization bypass output, can be adjustable.
6: Smart RS232 communication with monitoring software
7: Large Blue LCD digital display for UPS status and operation
8: Lightning, surge, short circuit, Network,fax,modem surge protection.
9: Set Output voltage, Frequency parameter and bypass function on the display
10: Adjustable speed smart fan and effective energy conservation to reduce noise
11: Set the work mode on the touch screen directly, UPS mode ECO mode EPS mode
12: DC start when power off, convenient and reliable; Restart automatically when Electricity is restored.
Technical Specification
| MODEL | Q1K | Q1KL | Q2K | Q2KL | Q3K | Q3KL |
| Rated capacity | 1KVA/800W | 2KVA/1600W | 3KVA/2400W |
| Input | Voltage | 115 - 300Vac |
| Frequency | 40-60Hz / 50-70Hz |
| Power factor | 0.99 |
| Output | Voltage | 220/230Vac(1±2%) |
| Frequency |
Synchronize with utility power(utility mode);
50 / 60Hz ± 0.2Hz(battery mode) |
On-load factor | 0.8 |
| Overload rating | 125% overload,1min |
| Battery | Type | Valve-control lead acid maintenance-free battery |
| Back up time |
> 11min
(half load) |
External |
> 11min
(half load) |
External |
> 11min
(half load) |
External |
| Rated voltage | 36V | 72V | 96V |
| Transfer time | 0 |
| Operating environment | Humidity: 20%-90%, Temperature:0oC-40oC |
| Size (WxDxH)mm | 350 x 144 x 229 | 424 x 190 x 328 | 424 x 190 x 328 |
| Net Weight(kg) | 11.5 | 5.7 | 22.2 | 10 | 26.3 | 10 |
Competitive Advantages:
1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
2: Good after-sales service, we will be full responsible for any faults caused by our side
3: Professional experience in power field more than 10 years
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
Shenzhen UPSEN Electronic Co., Ltd. Which is located in south of China, Shenzhen City, close to Pearl of the Orient HK, with beautiful environment and convenient transport.
We are a private high-tech enterprise integrating researching & development, production & operation and technical services as a whole, which is specialized in Electric, Electronic and Energy fields for a long time. Our main products are UPS Power, Inverter Power, Battery Power, Solar&Wind Power. We are dedicated to offer quality power and power solution for Data-center, Telecom, Bank, Hospital, Transportation, Industry, Army, Security, and civil & office area etc. Moreover, we have mastered the core technology of power products through our independent research, we are one of few domestic enterprises which can meet the customers' customized requirements, and provide professional power solutions.
We already past ISO9001 international quality system certification, and established a complete quality system ranging from material source, process, assembling to testing. All our products are with CE Certificate, which exported to more than 30 countries and areas, like Australia, Europe, Africa, North America, South America, the Middle East, central Asia, southeast Asia etc.
We will always offer excellent quality and products to customers. Hope to make Integrity and Double-Win business with you, and to be your professional power supplier and solve your any power problems. We are sure UPSEN can achieve more successes with our efforts and your support.
