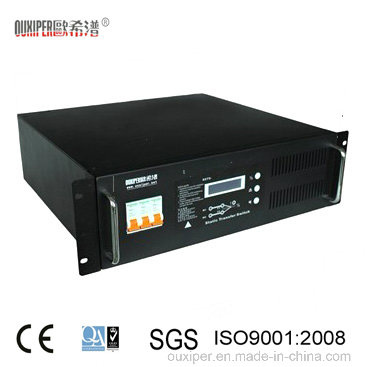

220VAC 100AMP Single Phase 2 Pole Static Transfer Switch

Name: 220VAC 100AMP Single Phase 2 Pole Static Transfer Switch
Brand: all-electronics-online.com
SKU: 804779005
Availability: InStock
Rating: 4.5 (83 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

STS of RSTS-series is the sophisticated product with the high performance which is designed as for the Chinese level A computer room. It is the second generation of the fast load switch system researched with the fully new digital technology. It adopts the delay topology structure and realizes the precision of switch time fully to perfectly transfer the load. RSTS- series own the own the high protection which improves the safety and reliability of the system operation. RSTS-series have the harmonious LCD interface design to realize the zero-distance communication between the human and computer; RSTS-series add the STS and PC in communication. The users can learn the work status of STS through using RS232 to conduct the communication; With the application concept that the safety is the first, it is no doubt that STS of RSTS- series is the best choice of you.

Application fields:
SOHO small-scale official environment;
Small-scale communication switch;
SOHO network equipment;
Commercial POS machine;
Work station and its peripheral equipment.

Performance features

High reliability
* The digital control technology and the perfect protection function is adopted to realize the ultra-strong stability.
* The original imported SCR template design is adopted and the product has the strong overload and impact resistance capability;
* The delay topology structure is adopted and the precision of switch has been realized.
* The product has the extremely strong power adaptability and RSTS series can input the power situation of the same phase and the different phases at the same time.

High humanity:
* The product has the harmonious human and computer interface design and adopts the LCD display and displays the RSTS operation status to realize the zero-distance human and computer communication.
* Display contents of LCD: Machine No., parameter of input voltage, parameter of output voltage, whether the voltage is normal or abnormal, whether the over current is normal or abnormal and the work status.

High synchronism:
* The products of this series adopt the synchronous control technology and high-sampling template to ensure that consistence in the switch and the perfect transfer of the load.

Main Technical Parameters:
Model		RSTS-1125	RSTS-1132	RSTS-1140	RSTS-1163	RSTS-11100
Standard Volume		5.5KW	7KW	8.8KW	13.8KW	22KW
Rated Current		25A	32A	40A	63A	100A
Switch Time		≤5ms
Output Interface		Cable row
Priority		Automatic setting
Input	Scope of input voltage of M1circuit	110VAC-240V
	Scope of input voltage of M2 circuit	110VAC-240V
	Scope of input frequency	50HZ-60HZ
	Power environment	Same phase and different phases
Output	Scope of output voltage	110VAC-240V
	Output over current	110%
	Output efficiency	≥98%
Management	Status display	Display of LCD electric quantity parameters, display of LED status
	Interface management	RS232 interface/Basic
	Software	X
Protection	Power surge protection	Input M1/input M2
	Communication surge protection	RS232 interface
	Overload short circuit protection	Over current short circuit protector
Standard Recognition	Design and production	ISO9001:2000
	Safety certificate	EN50091-2,IEC60950
	Electromagnetic compatibility	EN50091-2,EN61000-3-2,EN6000-4-2/-3/-4
Environment	Environmental temperature	-30°C----+60°C
	Environmental humidity	0%-90%
Physical property	Size of machine	3U×19 Inches(482×400×133)
	Size of package	550×520×230

Prod Model:	RSTS11-100A
Machine Size:	482402133mm
N/W:	11kg

Dongguan Ouxiper Eectronic Co., Ltd was established in 2005. The head office is in Hongkong. Our company is located in Dongguan city which has a good reputation of the world's factory in The Pearl River Delta center of Guangdong Province. It is a comprehensive enterprise which combines the design, development, manufacturing, sales and sevice. It is a member unit of China Power Supply Society. At present, our company owns the advance manufacturing equipment, professional technicians and perfect quality assurance system. With strong technical force, professional managing system and over 10 years of R&D experiences, our products are ensured to be first-class. Our company has reached the advanced level both in domestic and overseas in R&D capability, technicial level, production capacity and quality requirement. We have promoted our brand name products in overseas market. With high precise product technology, excellent R&D capability and good deliverability of high quality products, our company has set up longterm stable cooperation with so many domestic and well-known brand customers.

Our company is based on the enterprise principle of "pursuit the quality, breakthrough and innovation" and the enterprise spirit is dedication, innovation, exploration and progress. Computer room equipment safety of power and technical good service is our enterprise development orientation. Our company inherits operation concept that"quality first and customer supremacy", Providing the best products and classic service for you is our goal and we sincerely welcome negotiation and cooperation with all friends.

We are specialized in the R&D of STS static transfer switch and series products of PDU industrial plug. It is widely used in computer system, fire fighting system, hospital. Hotel, super-highway, metro^...And other Important electricity environment. With excellent quality, professional knowledge, considerate service, our company has gained the excellent praise from user. With the principle of mutual development, resourse sharing and classic service, our company bases on the huge market of Pearl River Delta and distributes both China and all over the world. Our company has established the professional supply system and after-sales service team. We become extremely popular supplier of equipments in the professional safe computer room and gained excellent evaluation in the industry.
