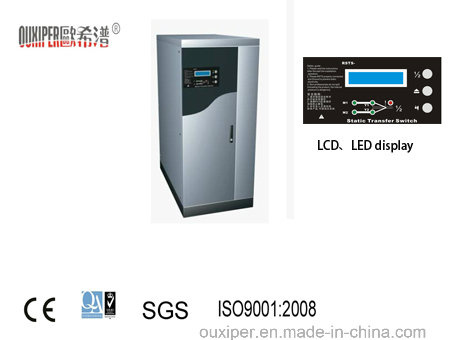

Rsts33-100A 380V 3 Pole Three Phase Commercial Transfer Switch

Name: Rsts33-100A 380V 3 Pole Three Phase Commercial Transfer Switch
Brand: all-electronics-online.com
SKU: 804860015
Availability: InStock
Rating: 4.8 (49 reviews)

Price:	Negotiable/Piece
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Showroom Product Company Profile

Products Details:
STS of RSTS-series is a higher performance product ,which is designed as the Chinese level A computer room. It is the second generation of the fast load switch system researched with the fully new digital technology. It adopts the delay topology structure and realizes the precision of switch time fully to perfectly transfer the load. RSTS- series own high protection which improves the safety and reliability of the system operation. Also,RSTS-series have the harmonious LCD interface to realize the zero-distance communication between the human and computer; The users can know the work status through RS232 conected with PC; Safety Go First, it is no doubt that RSTS- series is a propriate choice for you. Besides, its power is characterized by the strong loading capacity and low heating and other features.

Application fields:
It is suit to very high requirement surroundings, like high-speed railway,airport,bank and date center ,hospital,and so on. Static Transfer Switch can switch the mian power supply to the emergency one when it does't work.

Packaging & Delivery:
Waterproof Plastic bags ,Carton packing with foam interlayer are standard. But if you have special requirements we can make adjustment to fit you. And delivery is according to customers' order.

Performance and features:
* The design and production is conducted according to the standard power distribution requirements;
* The original imported SCR template design is adopted and the product has the strong overload and impact resistance capability;
* The delay topology structure is adopted and the precision of switch has been realized.
* The product has the extremely strong power adaptability and RSTS series can input the same phase and the different phases at the same time Power situation
* The direct communication of RS232 and PC is adopted and the real-time monitoring of the upper computer is realized.
* The MCU digital control is adopted
* The intelligent inspection and monitoring function is adopted;
* The product has the protection area functions of over voltage, under voltage, over current and others;
*The product owns the LCD and LED operation monitoring interface;

Fast load transfer:
This series of products adopt the synchronous control technology and the high-sampling template to ensure the consistence. This series of products also have the MCU and GAL intelligent control chip to ensure that the power parts can switch the load supply circuit with safety, reliability and rapidne

RSTS-Series three phases Description

Main Technical Parameters:
Model		RSTS-3325	RSTS-3332	RSTS-3340	RSTS-3363	RSTS-33100
Standard Volume		16.5KW	21KW	26KW	41KW	66KW
Rated Current		each phase 25A	each phase 32A	each phase 40A	each phase 63A	each phase 100A
Switch Time		≤5ms
Output Interface		Cable row
Priority		Automatic setting
Input	Scope of input voltage of M1circuit	230VAC/380V
	Scope of input voltage of M2 circuit	230VAC/380V
	Scope of input frequency	50HZ-60HZ
	Power environment	Same phase and different phases
Output	Scope of output voltage	230VAC/380V
	Output over current	110%
	Output efficiency	≥98%
Management	Status display	Display of LCD electric quantity parameters, display of LED status
	Interface management	RS232 interface/interface of dry contact
	Software	X
Protection	Power surge protection	Input M1/input M2
	Communication surge protection	RS232 interface
	Overload short circuit protection	Over current short circuit protector
Standard Recognition	Design and production	ISO9001:2000
	Safety certificate	EN50091-2,IEC60950
	Electromagnetic compatibility	EN50091-2,EN61000-3-2,EN6000-4-2/-3/-4
Environment	Environmental temperature	-40°C----+70°C
	Environmental humidity	10%-90%
Physical property	Size of machine	350×600×800
	Size of package	400×650×850

After-sale Service:
1).All products will be strictly Quanlity Checked in hours before packing
2).All products will be packed before shipping
3).All products have warranty for one year.

Welcome to visit our manufacture:
Any requiries will be replied within 24 hours

Prod Model:	RSTS33-100A
Machine Size:	380600800mm
N/W:	45kg-50kg
Transfer Time:	5ms
