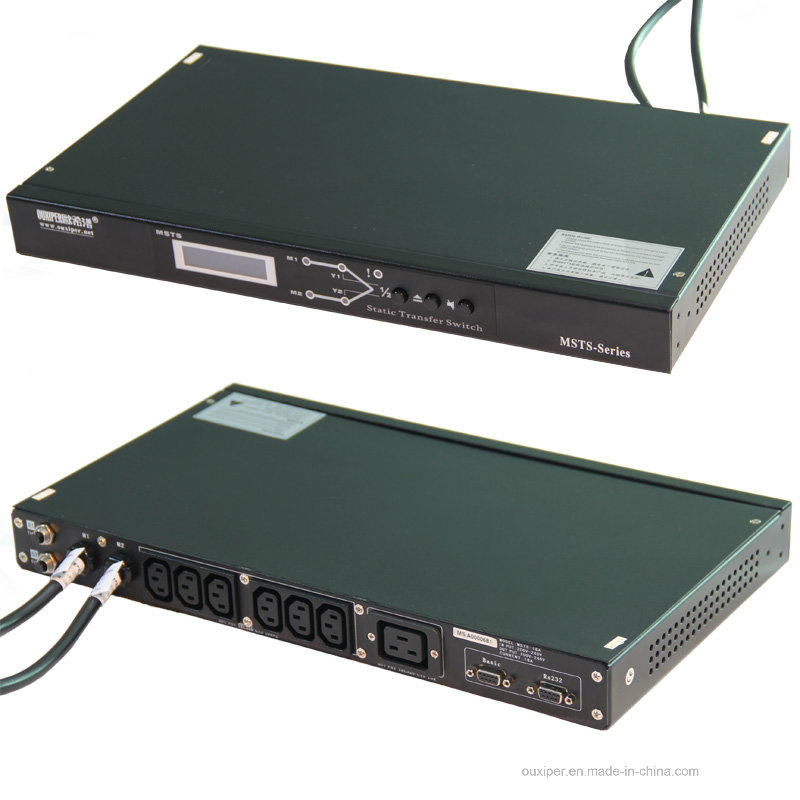

Single Phase Msts-220VAC 16AMP 3.2kw 2 Pole Static Transfer Switch
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
MSTS is a kind of switch of fast load transfer, its minimum transfer time is 3.2ms and it is applicable to the real load transfer in the same phase and the different phases. Except the fast load transfer, the many sets of MSTS can be connected together to synthesis the n+1=1 circuit output, which can enhance the safety of the power supply. MSTS owns the small volume and friendly human and computer interface leaves you a smart and harmonious feeling.
MSTS-16A Technical parameters:
M1 Input voltage range: 120VAC-220VAC;
M2 Input voltage range: 120VAC-220VAC;
Output voltage: 120VAC-240VAC;
Input voltage frequency: 50Hz-60Hz;
Rated output current: 16A
Output overcurrent: 110%;
Output efficiency: ≥ 98%;
Load switching capability: ≤ 6ms
Priority: Set their own;
Switching modes: Auto, Manual;
Cooling: Self-cooling;
Highest temperature: <60 ºC;
Working temperature: 0-40 ºC;
Relative humidity crossing: 0-90% (non-condensing)
Installation Altitude: <1000 m.
Machine size: 482 * 250 * 44
Package size: 540 * 360 * 110
Net Weight: 6kg
Performance features:
1,Fast load transfer:
MSTS can reach the fastest load transfer (3.2ms)r in the same phase and different phases
2,Priority of supply:
MSTS can be set by the users automatically
3,Protection function:
When the overrun protection of output current is 110%, the impact capability will input the over current in 4: 1 and conducts the lightning protection
4,Friendly human and computer interface:
MSTS provides the LED operation dynamic status and LCD provides parameters of electric quantity and the display of the equipment operation
5,Fault alarm:
When there is something wrong with the environmental electric quantity and output electric quantity, the equipment will start the audile and visual alarm and and the alarm will stop automatically 90 seconds later
6,Multi-functional interface:
The products of this series own the PC connection interface (RS232) and connect the interface of the dry contact
7,Reliable connection of output:
Standard IEC320 C13 and C19 output interface make the connection of PDU power socket convenient
.| MSTS Series Main Technical Parameters: |
| Model | MSTS-16A | MSTS-25A | MSTS-30A |
| Standard Volume | 3.5KW | 5.5KW | 6.6KW |
| Rated Current | 16A | 25A | 30A |
| Switch Time | ≤5ms |
| Output Interface | IEC C13,C19 | IEC C19 | IEC C19 |
| Priority | Automatic setting |
| Input | Scope of input voltage of M1circuit | 120VAC/220V |
| Scope of input voltage of M2 circuit | 120VAC/220V |
| Scope of input frequency | 50HZ-60HZ |
| Power environment | Same phase and different phases |
| Output | Scope of output voltage | 120VAC/220V |
| Output over current | 110% |
| Output efficiency | ≥98% |
| Management | Status display | Display of LCD electric quantity parameters, display of LED status |
| Interface management | RS232 interface/interface of dry contact |
| Software | X |
| Protection | Power surge protection | Input M1/input M2 |
| Communication surge protection | RS232 interface/interface of dry contact |
| Overload short circuit protection | Over current short circuit protector |
Standard
Recognition | Design and production | ISO9001:2000 |
| Safety certificate | EN50091-2,IEC60950 |
| Electromagnetic compatibility | EN50091-2,EN61000-3-2,EN6000-4-2/-3/-4 |
| Environment | Environmental temperature | -30°C----+60°C |
| Environmental humidity | 0%-90% |
Physical
property | Size of machine | 1U×19 Inches(482×250×44.5mm) |
| Size of package | 540×360×110 |
| Prod Model: |
Msts-16A |
| Machine Size: |
482*250*44mm |
| N/W: |
6kg |
