| Prod Model: |
Indoor Distribution Cable |
| Installation: |
Indoor Use |
| Sheath: |
UV and Flame Resistant LSZH |
| Cable Structure: |
Tight Buffer |
| Strengthen Member: |
Kevlar Aramid Yarn |
| Application: |
Telecommunication |
| Type: |
Single-mode Fiber |
| Certification: |
ISO9001 |
| Sheath Material: |
PVC/LSZH |
Product Description

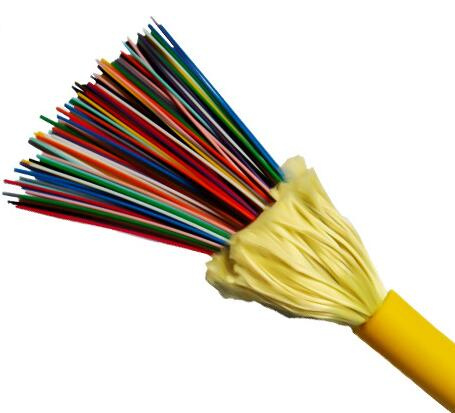

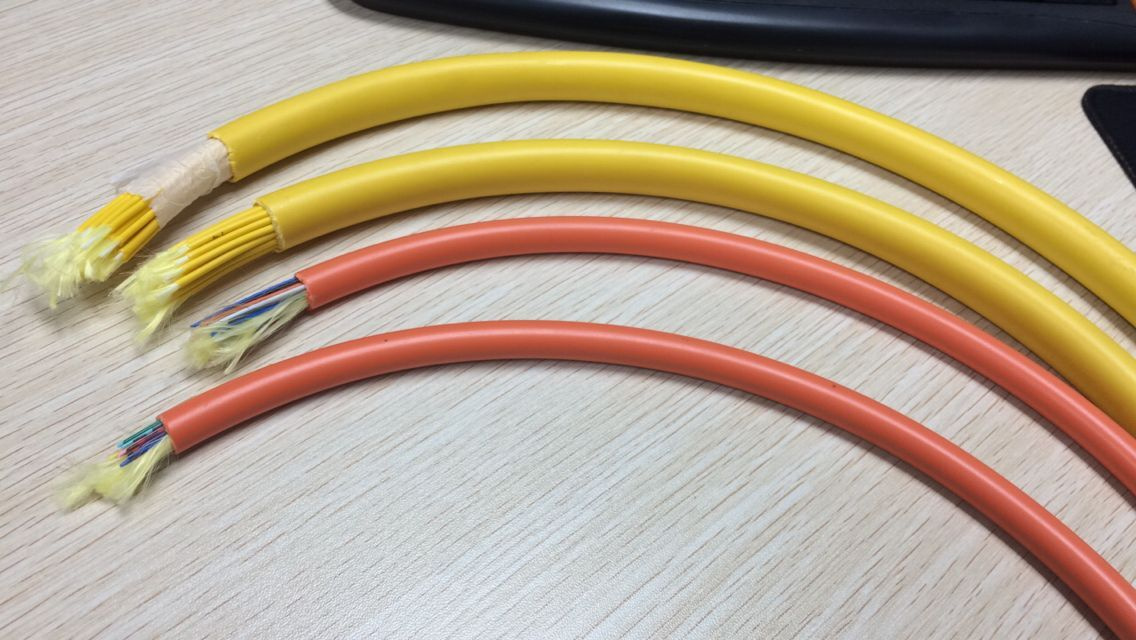

24 Core Sm Om4 Aqua Inoor Fiber Optic Cable with Corning Fiber
Description
Mulit Purpose Distribution Cable use simplex cable (φ900μm tight buffer, aramid yarm as strength member) as subunit. A fiber reinforced plastic (FRP) locates in the center of core as a non-metallics strength member. The subunits are stranded around the cable core. The cable is completed with a PVC or LSZH (Low smoke, Zero halogen, Flame-retardant) jacket.

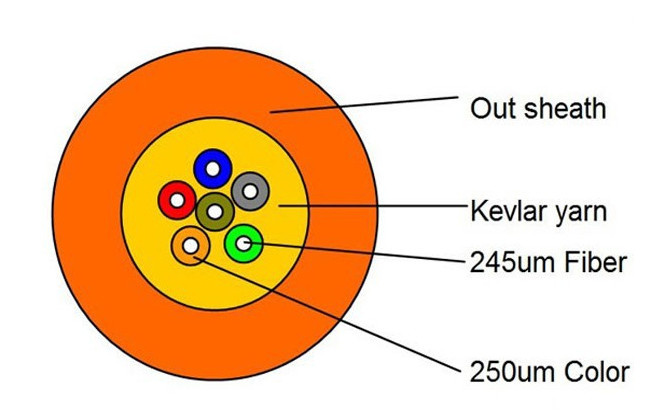

Profile View
Feature
Stranded non-metallic strength member structure ensure the cable endure large tensile strength.
The jacket anti-corrosion, anti-water, anti-ultraviolet radiation, flame-retardant and harmless to environment etc.
Storage Operating Temperature: -20ºC~+60ºC, Installation Temperature: -5ºC~+50ºC.
Application
Indoor cable distribution.
For intra-building backbone cabling including floors, terminal boxex and work stations.
For short and middle distance direct terminals intra-buildings and within different buildings, each sub-cable unit can be directly connected by standard connector.
Fiber Parameters
No. | Items | Unit | Specification |
G.652D |
1 | Mode Field Diameter | 1310nm | μm | 9.2±0.4 |
1550nm | μm | 10.4±0.5 |
2 | Cladding Diameter | μm | 124.8±0.7 |
3 | Cladding Non-Circularity | % | ≤0.7 |
4 | Core-Cladding Concentricity Error | μm | ≤0.5 |
5 | Coating Diameter | μm | 245±5 |
6 | Coating Non-Circularity | % | ≤6.0 |
7 | Cladding-Coating Concentricity Error | μm | ≤12.0 |
8 | Cable Cutoff Wavelength | nm | λcc≤1260 |
9 | Attenuation (max.) | 1310nm | dB/km | ≤0.4 |
1550nm | dB/km | ≤0.3 |
Cable Parameters
Items | Specifications |
Fiber Count | 2-48 |
Tight-buffered Fiber | Dimension | 850µm±50µm |
Material | PVC |
Color | White |
Simplex Cable | Dimension | 1.9mm±0.1mm |
Material | LSZH |
Color | Yellow |
Strength Member | Kevlar |
Printing Marks | (1)-(48) |
Central Strength Member | Diameter | 3.8mm±0.1mm |
Material | FRP+LSZH |
Color | Yellow |
Outer Jacket | Dimension | 14.5mm±0.5mm |
Material | LSZH |
Color | Yellow |
Mechanical and Environmental Characteristics
Items | Unite | Specifications |
Tension(Long Term) | N | 600 |
Tension(Short Term) | N | 1500 |
Crush(Long Term) | N/10cm | 300 |
Crush(Short Term) | N/10cm | 1000 |
Min. Bend Radius(Dynamic) | mm | 20D |
Min. Bend Radius(Static) | mm | 10D |
Installation Temperature | ºC | -10~+50 |
Operating Temperature | ºC | -20~+60 |
Storage Temperature | ºC | -20~+60 |
Technical Parameter
Geometical Characteristics |
Fiber Count | 4 | 6 | 8 | 12 | 16 | 18 | 24 |
Break-out Cable Diameter (mm) | 7.5 | 8.5 | 10 | 12.5 | 12.5 | 12.5 | 14.5 |
Break-out Cable Weight (kg/km) | 45 | 62 | 84 | 138 | 150 | 158 | 202 |
TBF Diameter (μm) | 900±50 |
Mechanical Characteristics | |
Max Lood (N) | Long term | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
Short term | 600 | 600 | 600 | 600 | 600 | 600 | 600 |
Bending Radius (mm) | Dynamic | 20*D (D: Cable Diameter) |
Static | 10*D (D: Cable Diameter) |
Fiber |
Fiber type (core/ cladding dimension) | 9/125 50/125 62.5/125 |
Transmission Characteristics |
| SM (1310/1550 nm) | 50/125 (850/1300 nm) | 62.5/125 (850/1300nm) |
Max Attenuation (dB/km) | 0.45/0.30 | 3.5/1.5 | 3.5/1.5 |
Typical Attenuation (dB/km) | 0.40/0.25 | 3.1/1.0 | 3.0/1.0 |
Mini Bandwidth (Mhz.km) | -- | 400/400 | 160/500 |
