| Prod Model: |

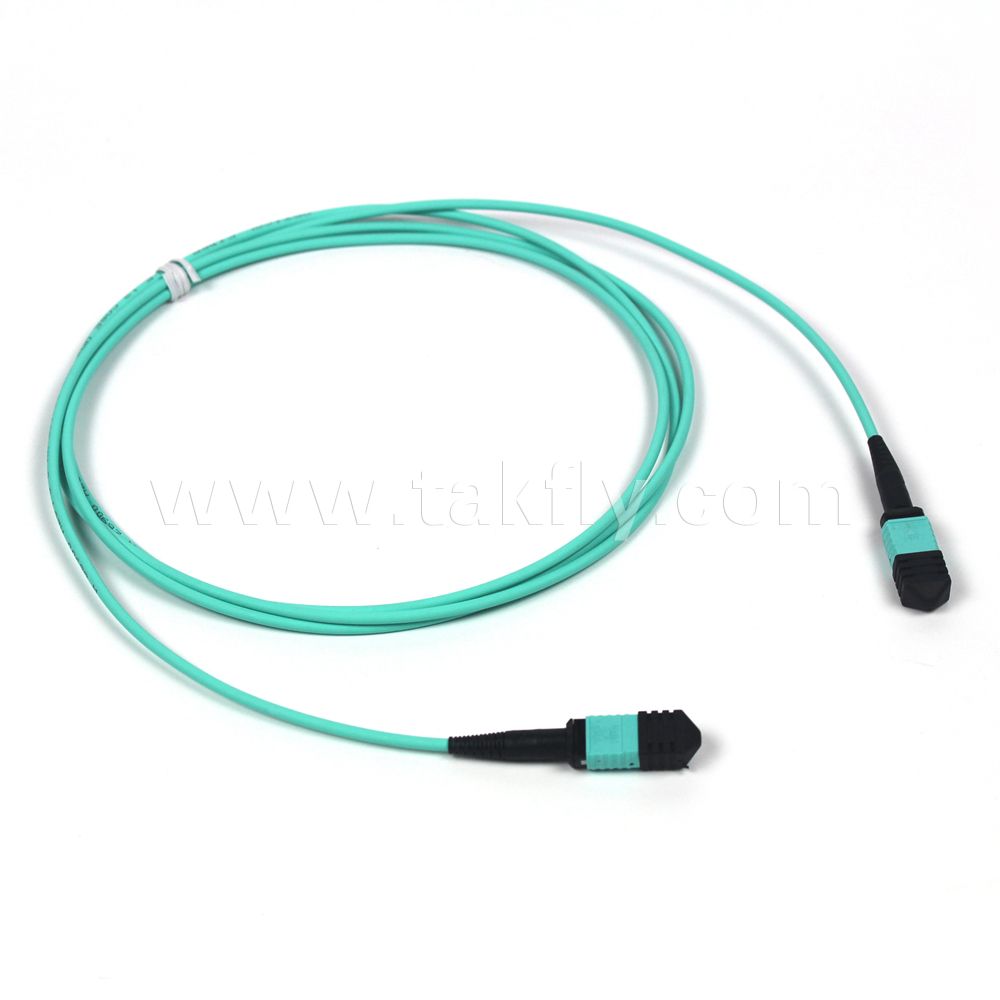

24 Fiber MTP/MPO Patch Cord |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Connector Type: |
Sc,FC,St,LC,MTRJ,MPO,MTP,Mu,SMA,Ect |
| Cable Jacket Color: |
Yellow,Blue,Green,Aqua,Red,Magenta,Beige |
| Cable Outer Diameter: |
0.9mm,1.6mm,1.8mm,2.0mm,2.4mm,2.8mm,3.0mm |
| MPO MTP Polishing: |
Upc,APC |
| Cable Jacket Material: |
PVC,LSZH,Ofnp,PE |
| Fiber Type: |
OS1,OS2,Om1,Om2,Om3,Om4 |
| Fiber Cores: |
Sx,Dx,4~144 Multi-Fibers Cores |
| Return Loss: |
PC>30dB; APC> 50dB |
| Insertion Loss: |
< 0.3dB |
| Warranty: |
3 Years |
| Application: |
Communication |
| Type: |
Multi-mode Fiber |
| Certification: |
CCC |
| Connection Structure: |
MPO-MPO |
| Brand: |
Takfly |
| Sheath Material: |
PVC,LSZH |
Product Description
24 Fiber MTP/MPO Trunk Cable Assemblies/MTP/MPO Patch CordDescription Optical Fiber Connector can provide a quick and easy termination of fibers in
the field. Options are available for 900 micron allowing the installer to terminate
and make connection in minutes at equipment and fiber patch panels. Our quick
connector system removes any requirement for epoxy, adhesives or costly curing
ovens.All the key steps have been done in the factory to ensure every connection
is excellent.High quality but low price because we bring these in direct from the
Feature1).Low insertion loss
2).High return loss (low amounts of reflection at the interface)
3).Ease of installation
4).Low cost
5).Reliability
6).Low environmental sensitivity
7).Ease of use
Application1).CATV
2).Active device termination
3).Telecommunication networks
4).Metro
5).Local Area Networks (LANs)
6).Data processing networks
7).Test equipment
8).Premise installation
9).Wide Area Networks(WANs)
Specification
|
Singemode(UPC) |
Singemode(APC) |
Multimode |
Insertion loss |
≤ 0.2db |
≤ 0.2db |
≤ 0.25db |
Return loss |
≥55db |
≥65db |
≥30db |
Durability |
≤ 0.1db typical change, 1000 times mating |
Operating Temperature |
-45 to +85 degree |
Ferrule Hole Sizes |
125.0+1/-0um, Concertricity: ≤1.0um |
125.0+1/-0um, Concertricity: ≤0.5um |
125.0um, Concertricity: ≤3.0um |
125.3+1/-0um, Concertricity: ≤1.0um |
125.3+1/-0um, Concertricity: ≤0.5um |
127.0um, Concertricity: ≤3.0um |
125.5+1/-0um, Concertricity: ≤1.0um |
125.5+1/-0um, Concertricity: ≤0.5um |
128.0um, Concertricity: ≤3.0um |
126.0+1/-0um, Concertricity: ≤1.0um |
126.0+1/-0um, Concertricity: ≤0.5um |
|
Product list
Item | Connector Description | Item | Connector Description |
| | PC/UPC/APC | | PC/UPC/APC |
| Connector Singlemode 9/125 | ST | Connector Multimode (50/125 or 62.5/125) | ST |
| SC | SC |
| FC | FC |
| LC | LC |
| MU | MU |
| MTRJ(female) | MTRJ(female) |
| MTRJ(male) | MTRJ(male) |
| DIN | E2000 |
| E2000 | |
Takfly Communications Co., Ltd. is a Hi-Tech enterprise having its own brand and specializing in R&D, manufacture and sales of fiber optical communications equipments.

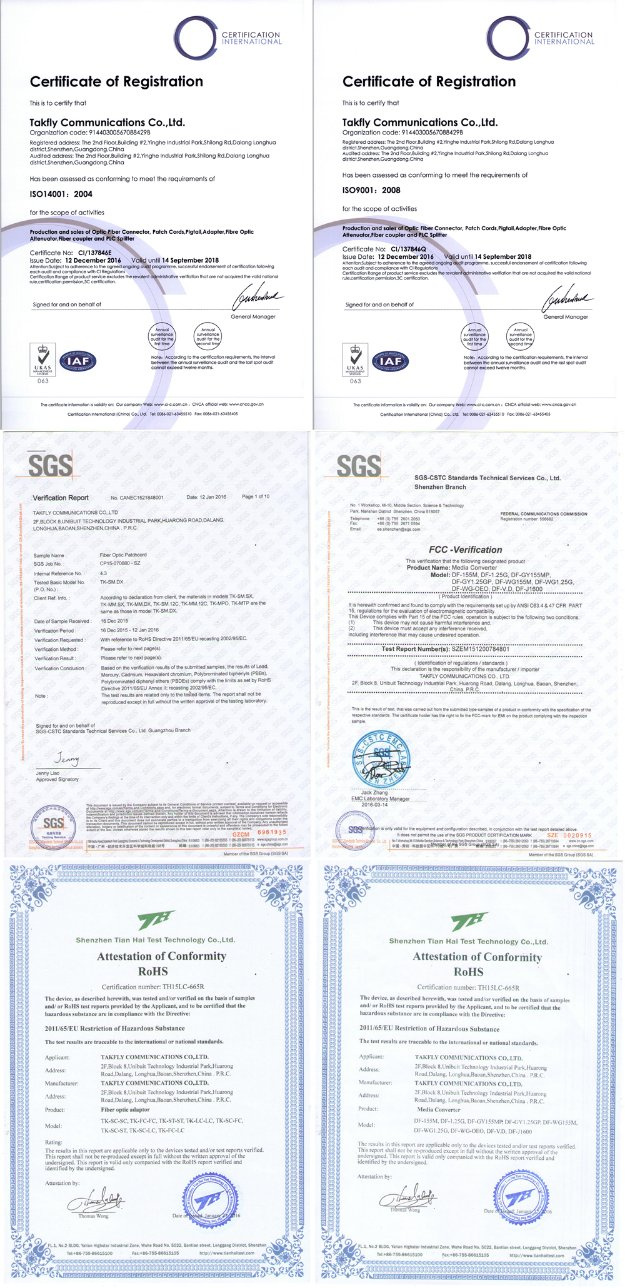

The main products of TAKFLY include fiber optic patch cord, connector, adapter, optical coupler, attenuator, optic media converter, optic splice closure, optic terminal box, ODF etc, which are widely used in telecommunications, broadband, broadcast, CATV and network industry. All the products acquired the approval of the Network Access License for Telecommunication Equipment Ministry of Information Industry, PRC, ISO9001, UL and CE standard, which ensure the reliability and make them sold very well not only in the domestic market but also the overseas market.

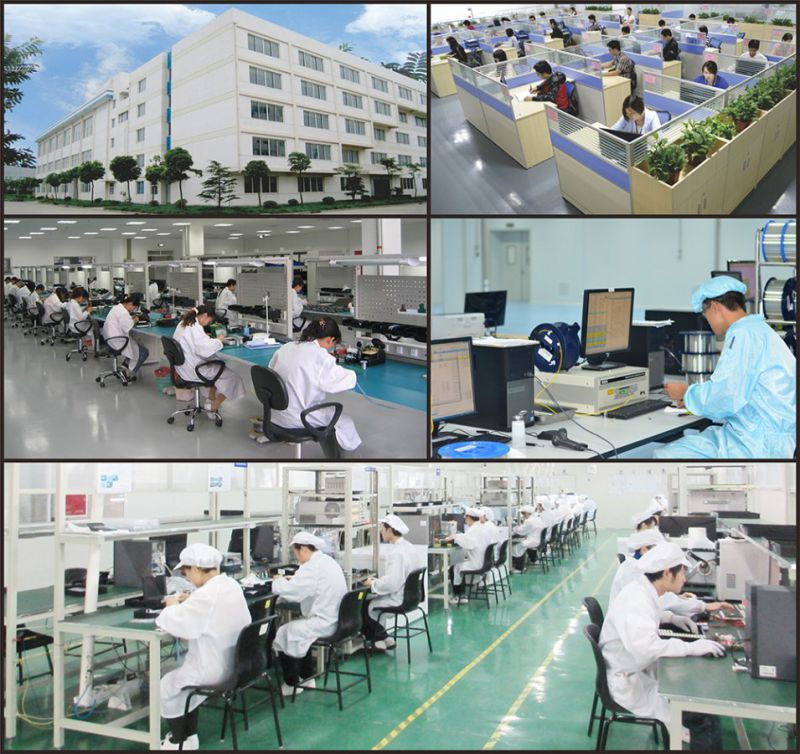

TAKFLY was establish in 2000, grow up rapidly. Now it has workshop area about 3000 square meters, more than 200 workers, the production capacity of fiber optic connectors is about 600, 000PCS per month. It controls the quality constantly and strictly in order to give the best products to the users. The outstanding features and advantage are the high technology, professional and excellent sales team, efficient and sound management, competitive price, wide and superior channels, as well as high-quality and flexible service.
