24 V Industrial Wireless Radio Remote Controller C-E1q
| Price: |
US $ 75/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Money Gram |
| Prod Model: |
C-E1Q |
| Color: |
Red |
| Control Distance: |
up to 100 M |
| Speed: |
Single Speed |
| Application: |
Crane, Truck,Construction Industry ,Hoist ,Lifting |
| Signal Transmission: |
RF Remote Control |
| Type: |
Button |
| Certification: |
CE |
| Universal: |
Universal |
| Transmission Distance: |
>100m |
| Battery Type: |
AA Battery |
| Voltage: |
High and Low Voltage Are Both Ok |
| Material: |
Glass Fiber Reinforced Nylon-6 |
Product Description

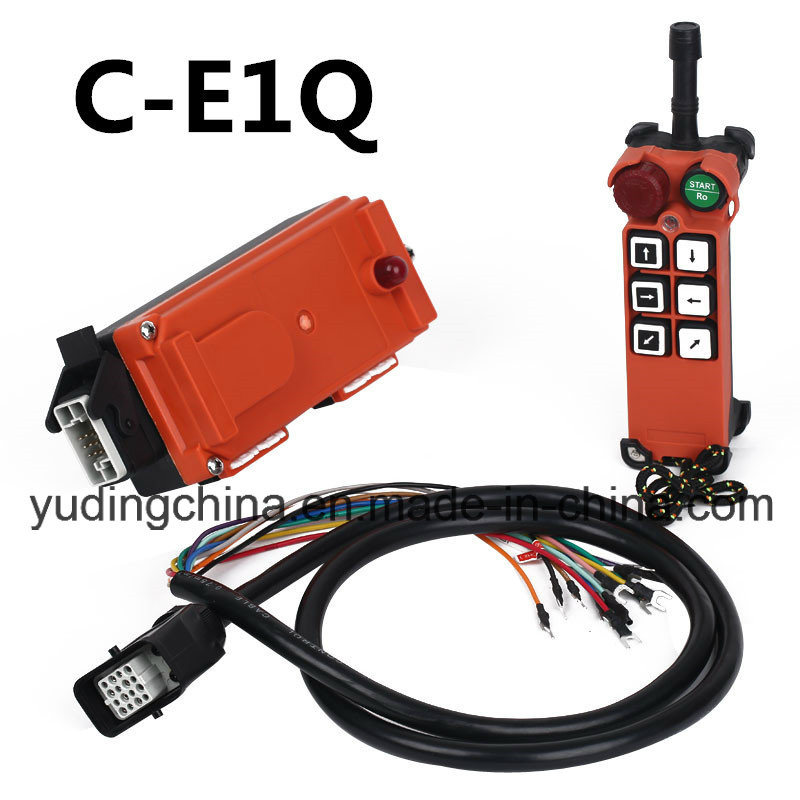

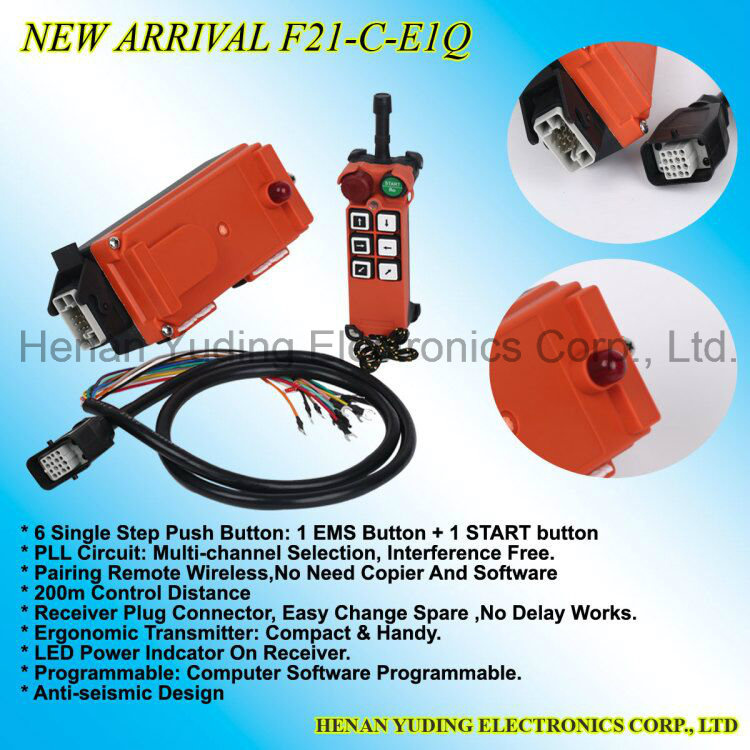

New Arrival Industrial crane F21-C-E1Q wireless remote control switch for electric hoist
Standard Configuration:Transmitter*1( with strap),
Receiver*1,
Receiver with 1m Cable,
Operation and maintenance manual *1
Technical Specification: | TX Model | F21-E1-TX-V-(E) |
| TX Size | about 15.6*5.6*4.9cm |
| TX Weight | about 211g(without Batteries) |
| Housing Materail | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| Temperature Rating | -35°C ~ +85°C(Regardless of the battery temperature tolerance) |
| TX power Supply | Two 1.5 volts Batteries(AA Size) |
| Number of buttons | 6 Single speed buttons,1 START button,1 mushroom button |
| Button Marking | arrow tip |
| I.D.Code | 4.3 billion |
| Voltage Warning | TX Red LED will flash slowly when the volts under 2.2V,and unable to start TX under 1.8V. |
|
| Operating Frequency | 310.0325-331.165MHz |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| RF Power | <10DBm |
| Fault Detection | TX Red LED is flashing quickly:
1.Not in the correct way to start;
2.One of the pushbutton is jammed.
TX LED will flash slowly:
1.Please change two new batteries |
| RX Model | F21-E1-RX-V-(E) |
| RX Size | 18.7x8.6x7.9cm |
| RX Weight | about 624g ( without wire cable ) |
| Housing Material | glass fiber-reinforced nylon-6 |
| Protection Degree | IP65 |
| connection diagram | English |
| Temperature Rating | -35°C ~ +85°C |
Power Supply
(Voltage) | AC380V,AC36V,AC220V,AC110V,
AC48V,AC24V,AC12V/DC12V,
AC380V/AC220V(50-60Hz) |
| Relays | 6 Relays control functions,
1 relay control EMS and
1 relay reserve |
| Output Relays | 5Amp Omniseal Relays
(AC250V/10A Relays ,10Amp fuse) |
| I.D.Code | 4.3 billion |
| Operating Frequency | 310.0325-331.165MHz |
| Channel Spacing | 0.2675MHz |
| Channel | 80CH |
| Sensitivity | >=-110DBm |
| Interface | Cable output |
Company information :
HeNan Yuding Electronics Corp., Ltd, established in August. 2010 ,is a professional manufacturer in industrial crane radio remote control .Our headquarter is in Zhengzhou, Henan province,China.

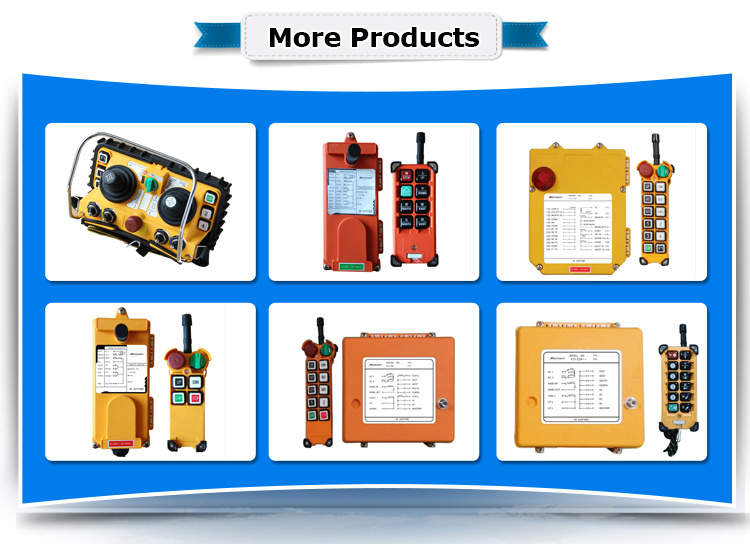

Our main products are :F21 Series radio remote controls ,F23 series radio remote controls ,F24-60 Dual Joystick radio remote control .All these remote controls are easy to operate to keep workers safe and productive.All products have got CE ,ISO & FCC Certificate .
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly , Each process are operated according to ISO9001:2008 & international quality control system to guarantee the best quality.With competitive price ,excellent quality and good after-sales service , Our Internal customers are covered Over 400 cities of 33 provinces.We also have built long-term business relationship with foreign customers.
Welcome to contact us at any time .We surely to supply you the best quality ,best offer and best service .
FAQ
1.What is your MOQ ?
The MOQ is 1 piece . We accept sample and small orders.
2.Is your price the lowest ?Is there any discount ?
Yes , this is the lowest factory price .The quality is indeed worthy the price .
3.What is the control distance for your remote controls?
Usually the control distance is up to 100 m . If you need further , please let me know .We can customize for you with our professional technical engineers .
4.What certificate does your product own ?
CE, FCC,ISO .
For explosion-proof series ,we have got explosion-proof certificate .
5.Does your product 100% assemble well in stock ?
Yes ,all products are 100% assembled well .
6.Is there any after-sale service or quality warranty ?
Yes ,we supply after-sale service and technical support .Any problems during installing or operating ,feel free to contact us ,we will provide professional instruction .
And all products enjoy one year warranty .Our services
Your inquiry will be replied in the first time .
We surely to supply you the best quality ,best offer and best after-sale service .
We can provide CE,FCC and ISO Certificate for your order .
Any problems during installation or operation ,please contact us directly ,we will supply you our professional instruction .
OEM , Samples and small orders are acceptable .
All products enjoy one year warranty .
Henan Dirk Electronic Co. Ltd (former Henan Yuding Electronics Crop., Ltd) is an industrial radio remote controls manufacturer in China. Established in August, 2010, With more than 10 years experience on this industrial remote control system business area. Headquartered in Zhengzhou, Henan province. Dirk has so many experts in the industrial radio remote controller area to assure quality and productivity, Dirk are becoming one of the leading companies in this industry in China.
Our main products is: F21 Series radio remote controls, F23 series radio remote controls, F24-60 Dual Joystick radio remote control and explosion-proof remote controls. All these remote controls are easy to operate to keep workers safety and Efficient. All our products are CE & FCC & ISO Certificate.
Quality is company's life. From the raw material testing, manufacturing, aging test and assembly, Each process are operate according to ISO9001: 2008 & international quality control system to guarantee the products quality. Competitive price with excellent quality and good after-sales service make our Internal customers are covered Over 400 cities of 33 countries. We also have built long-term business relationship with the foreign customers.
We here sincerely hope to establish partnership with you and your esteem company.
