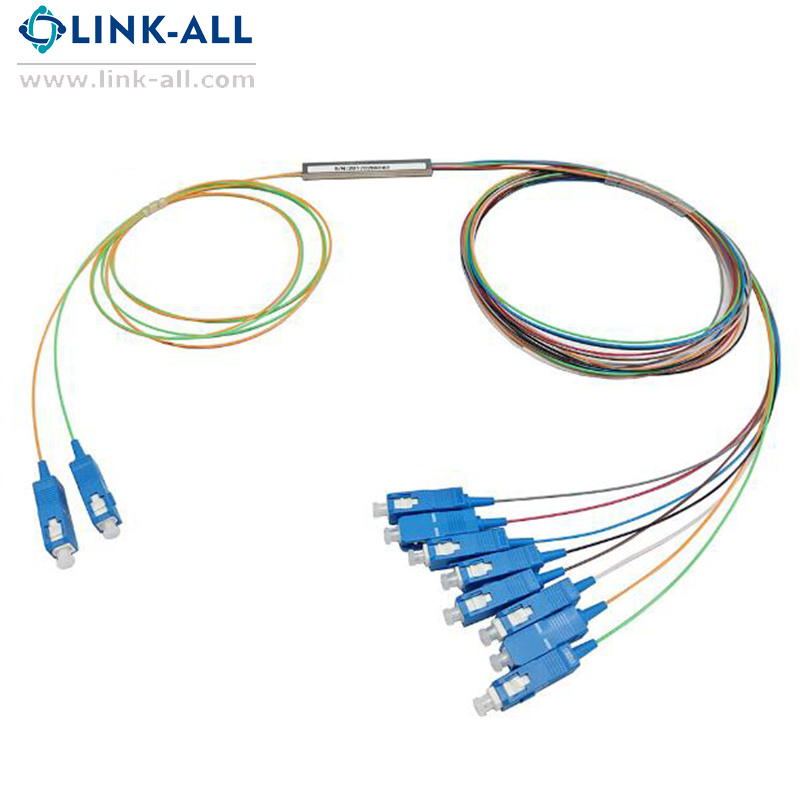

2X8 Customized Blockless Passive Optical Splitter PLC
| Price: |
US $ 3.5-65/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
2x8 customized blockless Passive optical splitter plc
(1) Feature
The products are Telcordia GR-1209 and GR-1221, IEEE 802.3 ah for EPON, 802.3 av for 10G-EPON ITU-T G.984 for
GPON, G.987 for 10G-GPON.
- Low Insertion Loss
- Broadband Operation
- Excellent Uniformity
- Low Polarization Dependent Loss
- Low excess loss & High performance
- Good uniformity & Low PDL
(2) Application
- CATV
- Data Communication
- Fiber Optic Equipments & Systems - PON System (3) Main Specifications
2xN blockless (BL) PLC SplittersType
Parameters | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 |
| Insertion Loss (dB)1,2 | Without connector | Max | 4.2 | 7.8 | 11.5 | 14.5 | 17.7 |
| Typ | 4.0 | 7.6 | 11.3 | 14.3 | 17.5 |
| With connector | Max | 4.7 | 8.3 | 12.0 | 15.0 | 18.2 |
| Typ | 4.2 | 7.6 | 10.8 | 14.0 | 17.0 |
| PDL (dB) 1,2 | Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Loss Uniformity (dB) 1,2 | Max | 0.6 | 0.6 | 0.6 | 1.8 | 2.0 |
| Operating Wavelength (nm) | | 1260~1650 |
Return Loss
(dB) 1,2 | Without connector | Min | 55 |
| With APC | 55 |
| With UPC | 50 |
| Directivity (dB) | Min | 55 |
| Fiber Type | | G652D or G657A or G657A2 |
Note:
1. Measured at room temperature
2. Measured at 1310nm and 1550nm (4) Pigtail And Connector
| Fiber Type | Input | SMF-28e with 0.9mm or customer specified |
| Output |
| Fiber Length | Input | 900mm or customer specified |
| Output | 650mm or customer specified |
| Connector | SC/UPC or customer specified |
(5) Package Dimensions
| PLC Type | 2x2 | 2x4/ 2x8 | 2x16 | 2x32 |
| Package (mm) | 4x4x55 | 4x7x60 | 4x12x60 | 6x20x80 |
(6) Ordering Information | Items | Options |
| Channel | 2X2, 2X4, 2X8, 2X16, 2X32 |
| Encapsulation Type | Round steel tube, Mini rectangle steel package, ABS box, Card type (LGX box), Rack mounted |
| Wavelength | 1260-1650nm |
| Optical ratio | Average |
| Input/ Output diameter | Ribbon fiber, 0.9mm, 2.0mm, 3.0mm |
| Jacket of Input/ Output Cable | PVC or LSZH |
| Connector type | SC, LC, FC, ST, MU, DIN, E2000 and so on or without connector |
| End Polishing | PC, UPC(SPC) or APC |
| Cable length | Customized |
| Fiber Type | G652D or G657A or G657A2 |
| Test report | YES |
| RoHS | YES |

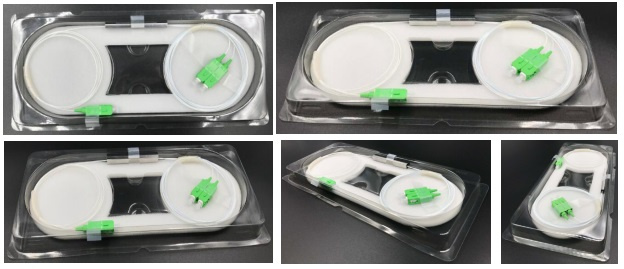

(7) Package reference

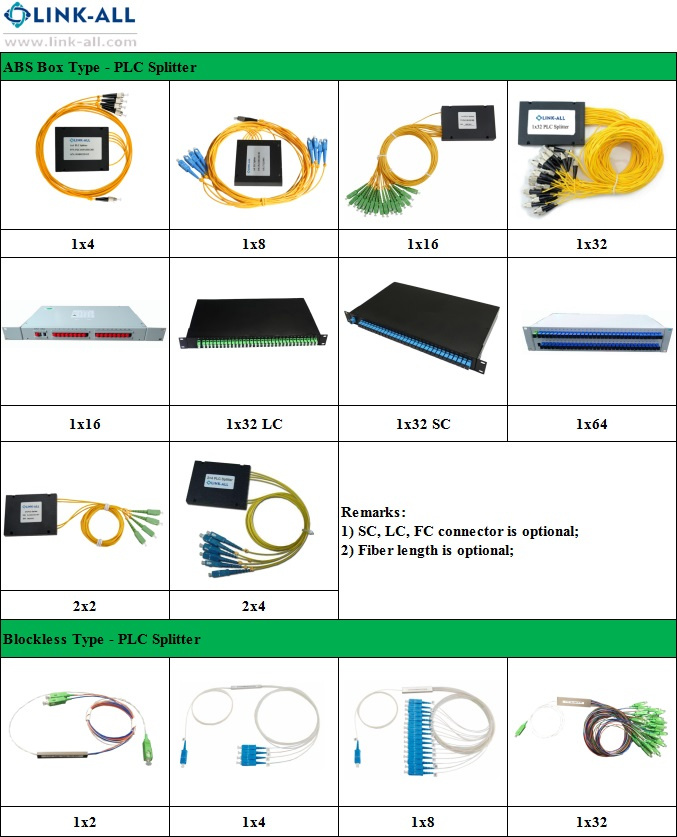

(8) Other PLC Splitter for choosing
| Prod Model: |
2x8 blockless PLC splitter |
| Product Name: |
Blockless PLC Splitter |
| Insertion Loss: |
12.0dB |
| Pdl: |
0.3dB |
| Loss Uniformity: |
0.6dB |
| Operating Wavelength: |
1260~1650nm |
| Return Loss: |
55dB |
| Directivity: |
55dB |
| Fiber Type: |
G652D or G657A or G657A2 |
| Usage: |
CATV, Pon Systems, Fiber Optic Equipments |
| Type: |
Wireless |
| Support Network: |
Ethernet |
| Information Content: |
Data |
| Certification: |
RoHS |
| Condition: |
New |
