| Prod Model: |
VS33 10k |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Frequency: |
50 / 60Hz |
| Input Voltage: |
3 X 400 VAC (3pH+N) |
| Output Voltage: |
208/220/230/240VAC |
| AC Voltage Regulation: |
± 1% |
| Type: |
On-line |
| Protection: |
Short Circuit |
| Phase: |
3/1 Phase |
| Standby Time: |
Standard / Long Run Model |
| Brand: |
Upsen |
Product Description

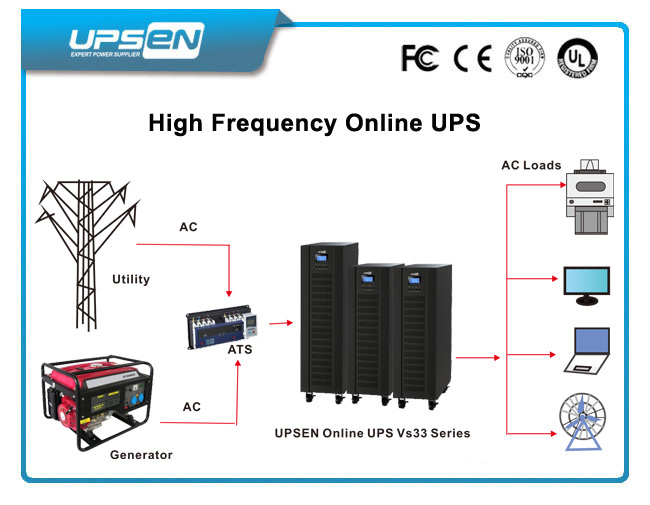

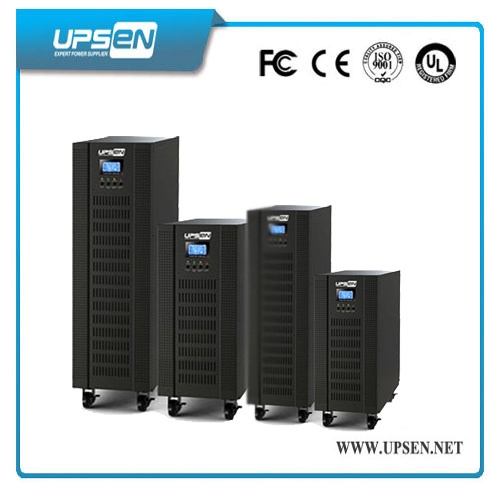

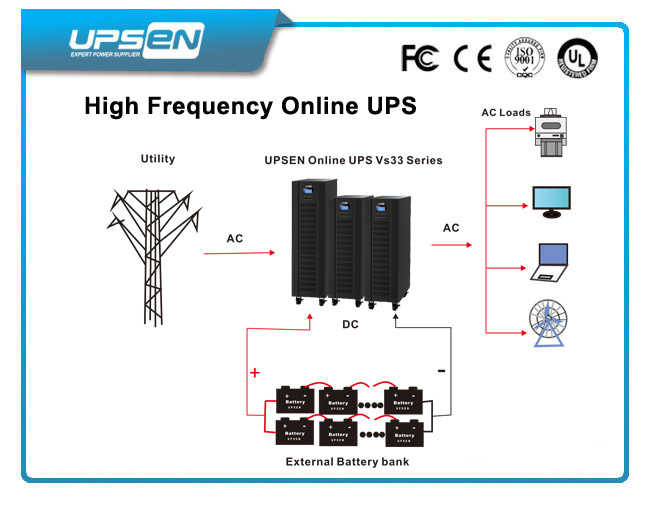

3 / 1 Phase HF Online UPS System 10K 15K 20K 30Kva with / without battery models for choose1: 3 Phase 380V / 400V / 415Vac Input, Single Phase 220v / 230v /240vac Output
2: Double Conversion Tech and Pure Sine Wave Output
3: Compact and Smart UPS Design
4: Tower Model
5: Digital LCD Screen, and DC Voltage 192V / 240 Vdc adjustable
Key Features1). Incredible low noise system design.
2). DSP technology guarantees high performance
3). DSP Double-Conversion On-line Sinewave Design
4). Precision Output Voltage Regulation
5). Emergency power off function (EPO)
6). Optional Extended Battery Banks & Chargers
7). RS-232C, USB & Optional SNMP/HTTP Agent
8). Active input power factor correction 0.99
9). Equipped with maintenance bypass switch
10). Optional Remote Emergency Power Off (REPO)
11). Wide Input Voltage Window
Competitive Advantages:1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB boards
2: Full protection against over-discharge, overcharge, over load.
3: Strong shock resistance ability
4: Professional technical support before and after sales
5: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.
6: Free OEM & ODM Service
7: Competitive price, quality and mature products
Technical Specification
VIEW STAR SERIES ONLINE UPS SELECTION GUIDE |
| MODEL | VS31 10K (L) | VS31 15K (L) | VS31 20K (L) | VS31 30K (L) |
| PHASE | 3 phase in / 1 phase out |
| CAPACITY | 10000 VA / 8000 W | 15000 VA/12000 W | 20000 VA/16000 W | 30000VA/24000W |
| INPUT | | |
| Nominal Voltage | 3 x 400 VAC (3Ph+N) |
| Voltage Range | 305-478 VAC (3-phase) @ 100% load
190-520 VAC (3-phase) @ 50% load |
| Frequency Range | 46~54 Hz or 56~64Hz |
| Power Factor | >= 0.99 @ 100% load |
| OUTPUT |
| Output Voltage | 208/220/230/240VAC |
| AC Voltage Regulation (Batt. Mode) | ± 1% |
| Frequency Range (Synchronized Range) | 46~54 Hz 50 Hz / 56~64 Hz 60 Hz |
| Frequency Range (Batt. Mode) | 50 Hz ± 0.1 Hz or 60 Hz ± 0.1 Hz |
| Current Crest Ratio | 3:1 (Max) |
| Harmonic Distortion | Less than 2 % THD (Linear Load)
Less than 5 % THD (Non-linear Load |
| Transfer Time | AC Mode to Batt. Mode | zero |
| Inverter to Bypass | zero |
| Waveform (Batt. Mode) | Pure Sine Wave |
| EFFICIENCY |
| AC Mode | 89% | 89% | 89% | 90% |
| Battery Mode | 86% | 88% | 87% | 89% |
| BATTERY |
| Standard Model | Battery Type | 12 V / 9 AH |
| Numbers | 16 pcs | 16 pcs x 2 strings | 16 pcs x 3 strings |
| Typical Recharge Time | 9 hours recover to 90% capacity |
| Charging Current (max.) | 1A | 2A | 2A | 2A |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) |
| Long-run Model | Battery Type | Depending on the capacity of external batteries |
| Numbers | 16pcs(192V) | 16pcs(192V) | 16pcs(192V) | 20pcs(240V) (18-20adjustable) |
| Charging Current (max.) | 4A | 4A | 4A | 12A |
| Charging Voltage | 273 VDC ± 1%(based on 20 pcs batteries) |
| INDICATORS |
| LCD Panel | UPS status, Load level, Battery level, Input/Output voltage, Discharge timer, and Fault conditions |
| ALARM |
| Battery Mode | Sounding every 4 seconds |
| Low Battery | Sounding every second |
| Overload | Sounding twice every second |
| Fault | Continuously sounding |
| PHYSICAL |
| Standard Model | Dimension, D X W X H (mm) | 592 X 250 X 576 | 815 x 250 x 826 | 815*300*1000 |
| Net Weight (kgs) | 83 | 164 | 234 |
| Long-run Model | Dimension, D X W X H (mm) | 592 X 250 X 576 | 592 X 250 X 576 | 815 x 250 x 826 |
| Net Weight (kgs) | 28 | 40 | 64 |
| ENVIRONMENT |
| Operation Humidity | 0-95 % RH @ 0- 40°C (non-condensing) |
| Noise Level | Less than 58dB @ 1 Meter | Less than 60dB @ 1 Meter | Less than 65dB @ 1 Meter |
| MANAGEMENT |
| Smart RS-232 | Supports Windows® 2000/2003/XP/Vista/2008, Windows® 7/8, Linux, Unix, and MAC |
| USB |
| Optional SNMP | Power management from SNMP manager and web browser |
* Long-run model is only available in 200/208/220/230/240VAC systems.
