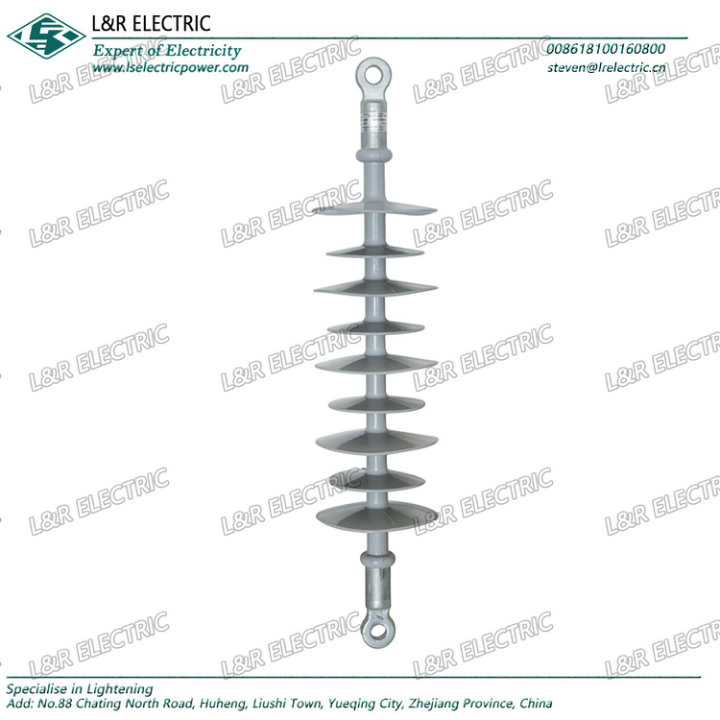

33kv 70kn Tension Insulator Eye Ending

Name: 33kv 70kn Tension Insulator Eye Ending
Brand: all-electronics-online.com
SKU: 836158715
Availability: InStock
Rating: 4.9 (106 reviews)

Price:	US $ 8.65-9.65/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Application for suspension insulators

Composite tension insulators are often used in overhead power line, working as devices to provide insulation in
between conductor and transmission poles, with the help of hardware fittings.

Parameters

Product Model	Rated Voltage (KV)	Rated Mechanicalbending load(kN)	Structure Height (mm)	Minimum Arc distance (mm)	Minimum creepage distance (mm)	Diameter of shed (mm)	Lightning impulse withstand voltage (peak kV)	P.F. 1min wet withstand voltage (kV)
FXBW-11/70	11	70	350	180	420	92	95	45
FXBW-11/100	11	100	380	185	420	92	95	45
FXBW4-11/80	11	80	450	280	550	144/114	125	65
FXB-24/70	24	70	425	230	575	98/88	125	65
FXBW-24/70	24	70	440	270	850	130/100	125	65
FXBW-24/120	24	120	545	320	900	115/85	145	65
FXB-25/70	25	70	500	330	735	92	145	65
FXB-33/70	33	70	505	330	900	92	200	95
FXBW-33/100	33	100	570	385	920	115/75	200	95
FXBW-33/80	33	80	720	555	1650	144/114	250	135
FXBW-35/100	35	100	750	430	1400	130/100	185	95
FXBW-36/120	35	120	670	430	1400	130/100	185	95

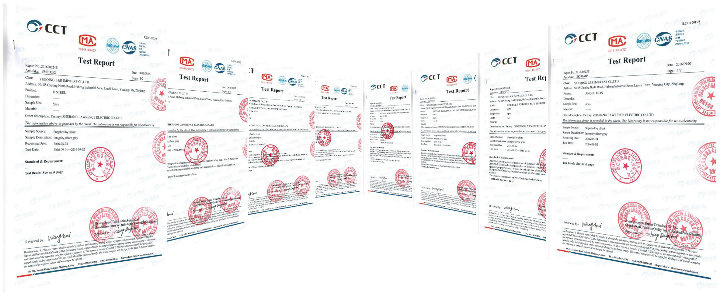

Test reports

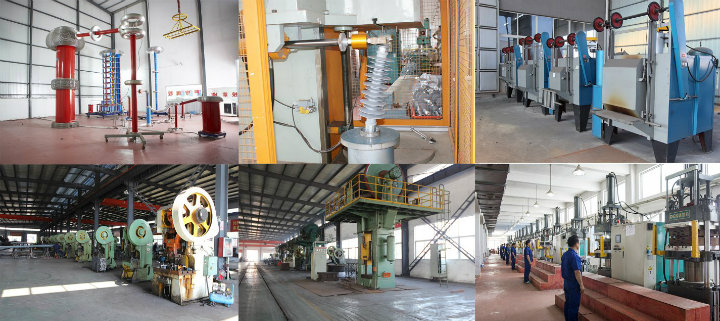

Factory

Prod Model:	FXBW-33/70
End Fittings:	Galvanized Steel
Application:	High-voltage
Material:	Composite Polymer
Structure:	Strain Insulator
Type:	B Type Insulator

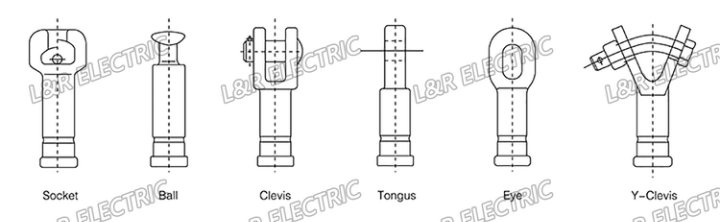

Connection Method:	Eye Ending
Color:	Red or Grey
Brand:	L&R

Zhejiang Lawrence Electric Co., Ltd (referred as L&R) is located in Zhejiang China. It is composed by some branch companies, we also invested some domestic and foreign EPC projects.

L&R has possessed one of the major suppliers in the power and electrical fields for electrical

Projects in the world. Almost all products manufactured by the L&R members have been certified

By KEMA, CE, SGS and CNAS approved Lab.

L&R have been supplying Zinc Oxide Varistors, Surge Arresters, insulators, Fuse Cutouts, Air

Break switch, Load break switch, Vacuum Circuit Breaker, Isolators, Transformers, Switchgear,

Earth rods, Stay Rods, Pole Make Off, Guy grip, stay wire, Crossarm, clamp, bolts, Line hardware

And so on. Our member companies are required to have a long term proven track record of meeting contract

Obligations, superior quality, current technology and state-of-the-art manufacturing facilities.

Over a period of 10 years, our business has extended to South America, Middle East, Southeast

Asia, Africa, and other regions, and we had our sale agent and 4S maintenance company in some countries. To achieve the strategic objective of development, we are seeking for partners

For our sale agent and maintenance company in all the worldwide.
