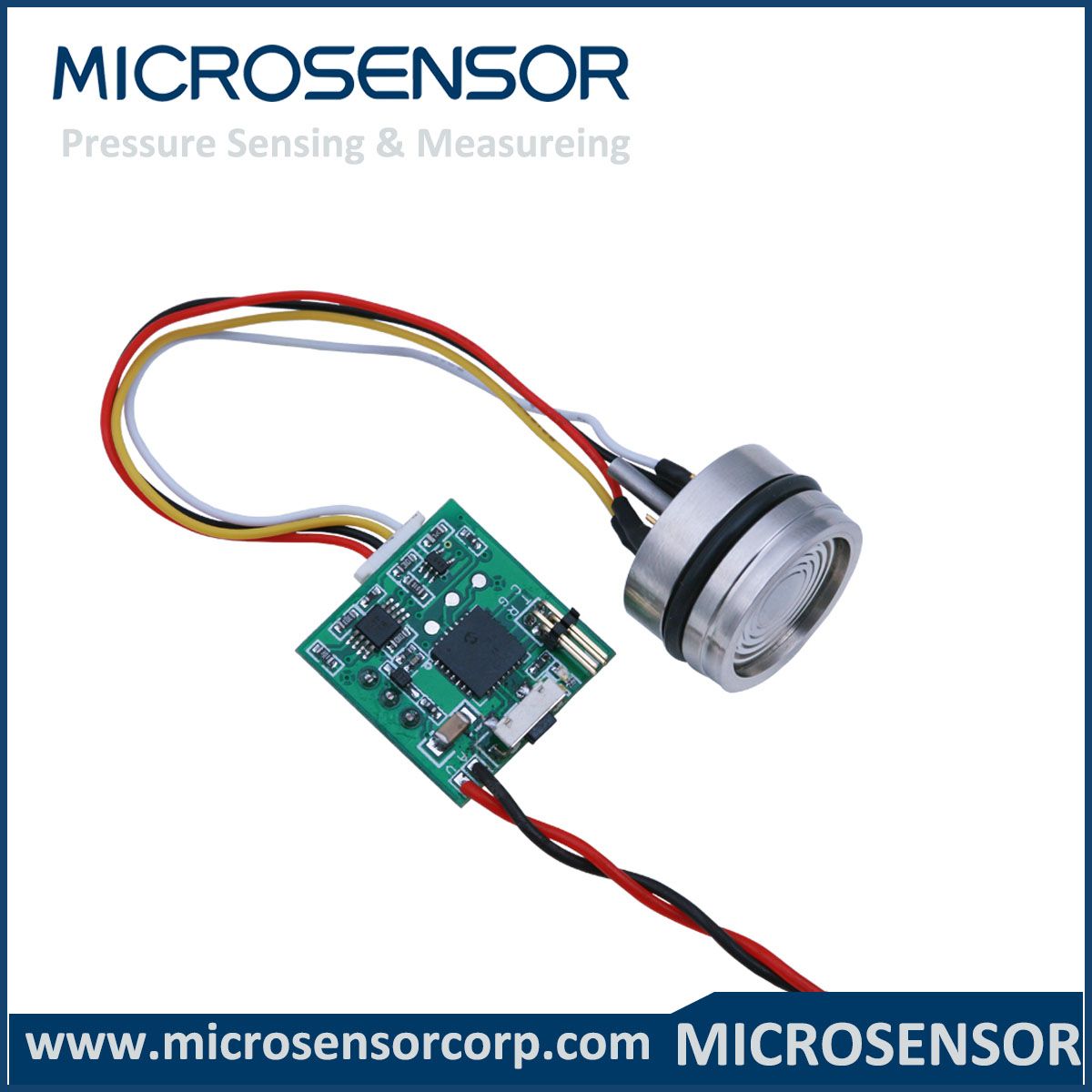

35 Psi Analog 4~20mADC Pressure Transmitter MPM4891B
| Price: |
Negotiable/Piece |
| Min Order: |
1/Piece |
| Pay Type: |
T/T,Western Union |
35 Psi Analog 4~20mA DC Pressure Transmitter MPM4891B Features•Safe, reliable
• Short circuit protection and reversed polarity protection
• 2-wire current output
• Manual zero-clearing function
• Manual secondary calibration• compact size, easy installationIntroduction MPM4891B is newly developed pressure transmitter parts with high accuracy and stability. It is made up of piezo-resistive pressure sensor and specialized processing circuit. It is stable, reliable, compact in size. With zero clearing button and manual pressure calibration function, it is easy for operation. MPM4891B is with OEM package, suitable for application and development for various pressure transmitter. SpecificationsRange: 0kPa~10kPa…40MPa
Overpressure: 1.5FS
Pressure Type: Gauge, Absolute or Sealed Gauge
Accuracy: ±0.5%FS
Power Supply: 11V~28V DC
Output: 4mA~20mA DC (2-wire)
Load Resistance: ≤ (U-11) / 0.02(Ω)
Zero Thermal Drift: ±0.02%FS/ºC
FS Thermal Drift: ±0.02%FS/ºC | Long-term Stability: ±0.3%FS/year
Operation Temperature: -25ºC~75ºC
Storage Temperature: -40ºC~80ºC
Relative Humidity: 0%~85%
O-ring: Viton
Diaphragm: SS316L
Leading Wire: silicone rubber
Gross Weight: 22g
Media Compatibility: liquid or gas compatible with stainless steel and viton |
Button Function 1. Without pressure, press the button for 5s for zero clearing, it outputs 4mA DC.
2. If the transmitter is excited while pressing the button, it enters calibration mode, the output can be calibrated by LED indication. Please see below chart for functions.| Button Operation | Phenomenon | Function |
| Excite power supply after pressing button | LED light on | Enter calibration mode |
| Pressurize to lower limit of pressure | LED flash 2 times | Zero calibration finished, low current calibration finished |
| Pressurize to upper limit of pressure | LED flash 3 times | FS calibration finished, middle current calibration finished |
| Pressurize to upper limit of pressure | LED flash 4 times | Calibration coefficient storage finished, high current calibration finished
|

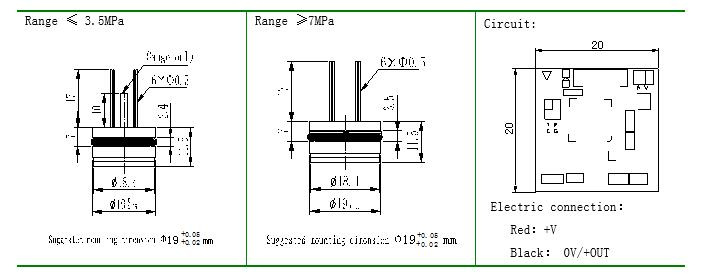

Outline Construction and InstallationOutline Construction (Unit: mm):
Order Guide| MPM4891B | Pressure Transmitter |
| | Range | 0kPa~10kPa…40MPa |
| [0~X] kPa or MPa | X: actual measurement range |
| | | Code | Output |
| E | 4mA~20mA DC (2-wire) |
| | | Code | Construction Material |
| 22 | SS316L |
| | | Code | Pressure Type |
| G | Gauge |
| S | Sealed Gauge |
| A | Absolute |
| | | | |
| MPM4891B [0~200]kPa E 22 G the whole spec. |
| | | | | | | | | | | |
Notes1. Please pay attention to protect sensor isolated diaphragm to avoid damaging the sensor or affecting the performance.
2. Please make sure the measured media shall be compatible with the contacting material.
3. If users have special requirement, please contact us freely.
| Prod Model: |
MPM4891B |
| Measurement Range: |
0kpa~10kpa…40MPa |
| Output: |
Analog Sensor |
| Usage: |
Pressure Sensitive Sensor |
| Theory: |
Processing Pressure Measurement |
| Power Supply: |
11V~28V DC |
| Output Signal: |
4~20madc 2-Wire |
| Accuracy: |
0.5%Fs(Min.) 1.0%Fs(Typ.) |
| Long-Term Stability: |
=<0.5%Fs/Year |
| Protection: |
IP65 |
| Operate Emperature: |
-25ºC~75ºC |
| Pressure Range: |
0kpa~10kpa…40MPa |
