35kv 40.5kv Lzzw-35 Outdoor Epoxy Resin Current Transformer Single Phase

Name: 35kv 40.5kv Lzzw-35 Outdoor Epoxy Resin Current Transformer Single Phase
Brand: all-electronics-online.com
SKU: 812790865
Availability: InStock
Rating: 5 (92 reviews)

Price:	US $ 398.6-610.2/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,Western Union,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

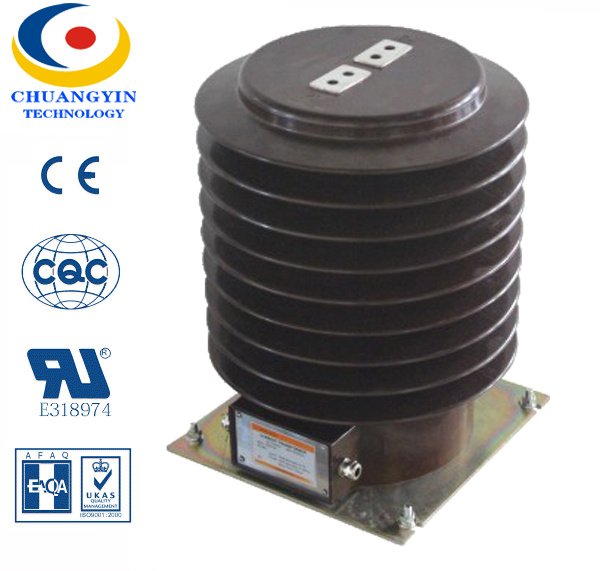

35kV LZZW-35 Outdoor Epoxy Resin Current Transformer

MV Instrument Transformers

Outdoor Current Transformer
For measuring or/and protection

IEC 60044-1: 2003, Instrument transformers-Part 1: Current transformers

We are concentrate on national tenders/projects/our distributors

LZZW-35 current transformer Adopts outdoor resin casting and belongs to support type full-closed structure, encloses

primary & secondary windings and annular core in the epoxy resin casting body. The product has the feature of light weight,

omni-directional installation, withstandingnastiness and dampness. It is widely used for measuring current, electric energy and

protective relaying in the electrical system with the rated frequency 50Hz or 60Hz and highest voltage for equipment 40.5 kV
Products

Specification

Rated primary current (A)	Secondary accuracy classes combination	Rated output (VA)			Rated short-time thermal current (kA/S)	Rated dynamic current ( kA)
		0.2(S)	0.5	10P
30-200/5	0.2(S)/0.2(S) 0.2(S)/0.5 0.2/(S)10P 0.5/10P	10 15	15 20	20 25	150I1n	375I1n
300/5					31.5	80
400/5					40	100
500/5					50	100
600/5					63	130
800/5					80	160

Remarks:

We can customize current transformer following your requirements.

Prod Model:	LZZW-35
Accuracy Class:	0.2s/0.2/0.5/10p
Rated Primary Current:	30-800A, as Customized
Rated Secondary Current:	5A/1A
Processing Tech:	Vrc(Vacuum Resin Casting)
Rated Output:	10/15/20va @Cos=0.8 as Customized
Certification:	ISO9001:2008, RoHS, Type Test
Bil:	40.5/95/185kv
Frequency:	50/60Hz
Standard:	IEC60044-1
Insulation:	Epoxy Resin Type
Application:	Switchgear
Type:	Current Transformer
Phase:	Single
Usage:	Metering Unit
Winding Form:	Toroidal
Installation:	Pole Mounted/Busbar Type
Magnetic Circuit Structure:	Toroidal

Work with us, a CT and relay assembly solutions provider that GE and Itron trustCE-, TÜ V- and RoHS-marked ISO 9001: 2008-certified, KEMA

Offering a Wide Range of Products

Shenzhen Chuangyin is a national high-tech enterprise. We are specialized in R&D, production and sales of kinds

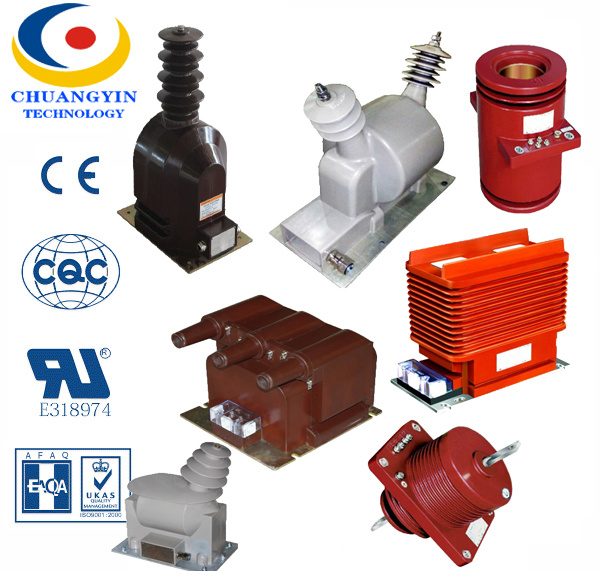

1. LV & MV epoxy resin CTs and PTs (0.66kV, 7.2kV, 11kV, 17.5kV, 24kV, 33kV, 72.5kV etc ) for switchgear or power system.

2. Cold shrink cable, Separable accessories(EPDM).

3. Split core Current Transformer, Clamp- on Current Transformer and Rogowski coil Current Transformeretc.

4. CTs and Relays for energy meter.

Passed KEMA, TYPE TEST REPORT, CE, TUV, ISO and RoHS standards

We have a head office in Shenzhen High-tech Park and two subsidiary production bases named Jiangxi Chuangyin (20, 000 square meters) and Zhuhai Chuangyin (10, 000 square meters). We offer a wide product range such as all kinds of current transformers from mini CT to medium voltage CT, and from solid core CT to split core CT. We are a key supplier of energy meter, switchgear and utility companies for more than 10 years. We are the only company who make current transformer and relay together, and provide good solution for smart meters. Our experienced engineers have good knowledge in energy meters and switchgears. Furthermore, we have certificates such as CE, RoHS and ISO from TUV.
