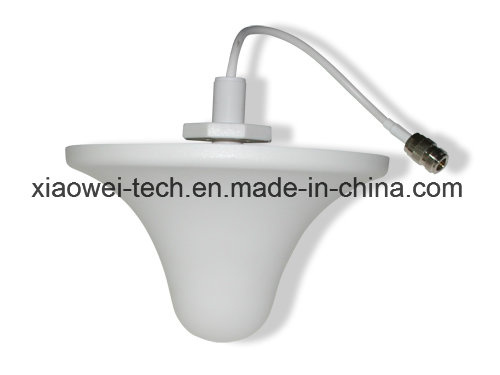

3G Indoor Ceiling Mounted Directional Antenna (Transparent)
| Price: |
US $ 2-6/Piece |
| Min Order: |
10/Piece |
| Pay Type: |
L/C,T/T |
3G Indoor Ceiling Mounted Directional Antenna (Transparent)
Company profile
Shanghai Xiaowei Equipment Co., Ltd. located Shanghai, China which is branch for overseas market of Jiangsu Huacan Telecommunication Co., Ltd. We are specialist supplier of telecommunication equipment and the total solution for your project.
Jiangsu Huacan Telecommunicaton Co. Ltd is a Private Science and Technology Enterprises and National Hi-tech Enterprise which mainly deals with developing, producing and selling wireless base station antenna and antenna accessories. Founded in 2007, the company has an area of 160 thousand square meters, and more than 2000 staffs.Our company has four production bases: feeder accessories and telecommunication cables; basestation antennas and passive components; coaxial connectors and arrestors; cable assembly and indoor Distributed Antenna.
We are the supplier of civil system intergrators, such as Huawei, ZTE, because of the capacity of wireless communication accessories, and a higher products share. Thanks to high quality and thoughtful after-sales service, many system operators (China Mobile, China Unicom and China Telecom etc.) choose our products for their network.
Our companypassed the certification of ISO9001, ISO14001 and the occupational health system certification. As a member of China Communications Standards Association and with more than 140 patents of all kinds, we often participate in making draft and formulating mobile communication products industry standard.
Specification| Frequency range | 806-960 MHz
1710~2500MHz |
| VSWR | ≤1.4 |
| Input impendence | 50Ω |
| Gain | 4/6dBi |
| Polarization type | Vertical polarization |
| Beamwidth | 120° |
| Intermodulation | <-110 dBm |
| Max power | 50W |
| Lightning protection | DC ground |
| Connector type | N female |
| Weight | 490g |
| Dimension | Φ186×85mm |
| Radome material | Uv-Protected ABS |
Antenna's color
Environment Temperature
| White
Working Temperature:
-40ºC~+60ºC
Limit Temperature:
-55ºC~+70ºC |
1. Installation instruction:
In accordance with the installation sketch, drill a hole of Φ35mm in the ceiling.
Screw the fixing nut to fasten the antenna on the ceiling. The ceiling's thickness is at most 20mm.
2. Storage and transportation:
A. The antenna must be stored in room temperature and dry environment;B,Handle the antenna with care
3. Attention: The antenna mustn't be near to fire.

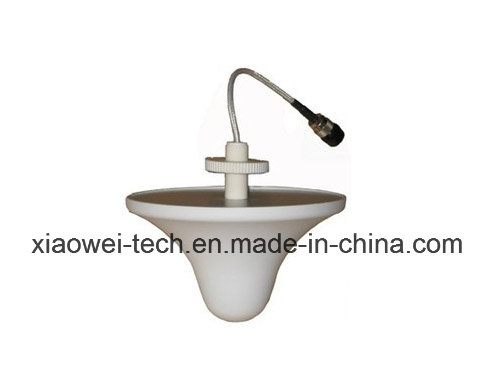

Detailed Images
For more information, please feel free to contact us!!
| Prod Model: |
GDHC800/2700Q-4/6 |
| Color: |
White |
| Gain: |
2 - 6 dBi |
| Polarization: |
Vertical |
| Radome Material: |
ABS |
| Usage: |
Communication Antenna |
| Material: |
Cu |
| Directionality: |
Omnidirectional Antenna |
| VSWR: |
1.5~2 |
| Operating Wavelength: |
Customization |
