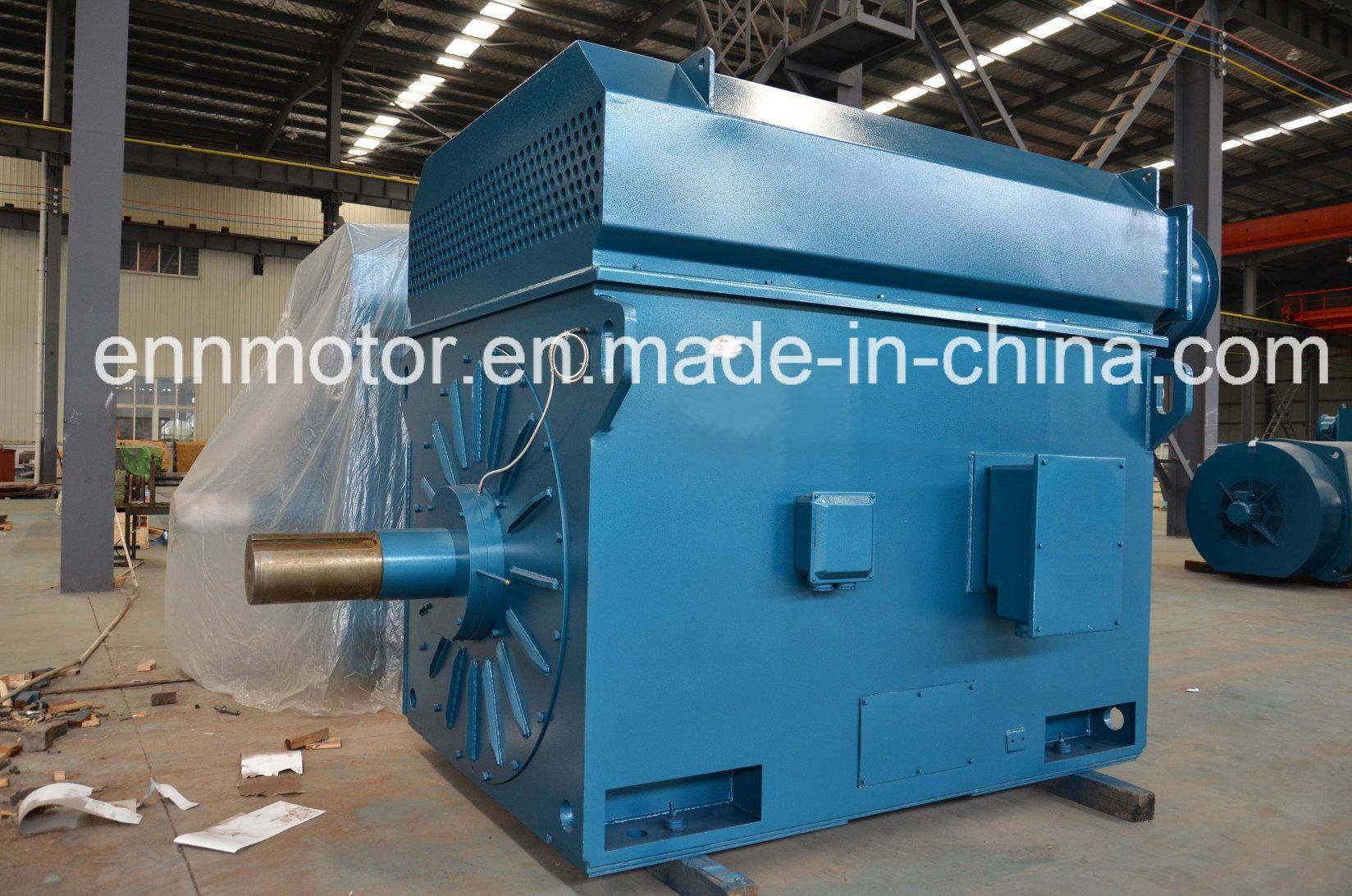

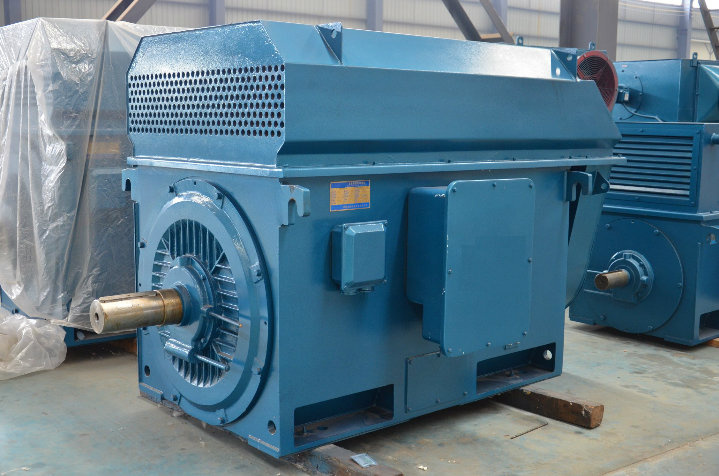

4 Poles Inverter Control High Voltage Pm Motor

Name: 4 Poles Inverter Control High Voltage Pm Motor
Brand: all-electronics-online.com
SKU: 728543472
Availability: InStock
Rating: 4.9 (143 reviews)

Price:	US $ 20000/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Paypal,Money Gram

Contact Supplier

Showroom Product Company Profile

The efficiency index of TYPKK series accords to the first level standard of GB 30254-2013 "energy efficiency and rating of high voltage three - phase cage asynchronous machine".

TYPKK series are employed with independent fan cooling structure, and share the same basic structure with TYCX series in the rest part.

Motors of this series powered by Inverter, which have 0-50 Hz constant torque output characteristics. If you need more than 50 Hz frequency, please specify when ordering.

TYPKK series are more efficient and have wider economical operation range with significant energy saving effect in 25% -120% load range relative to the same specifications of asynchronous motors. Under the rated load, the motor's temperature rise is in 30-50K.

Permanent magnet motors are widely applied to petrochemical, power, transportation, textile, industrial and mining enterprises fan, pumps, belt machines, machine tools and other mechanical transmission conditions. According to different load range, the general power saving rate of about 30%.

Motors can be customized 10KV or other voltage class according to your requirements.

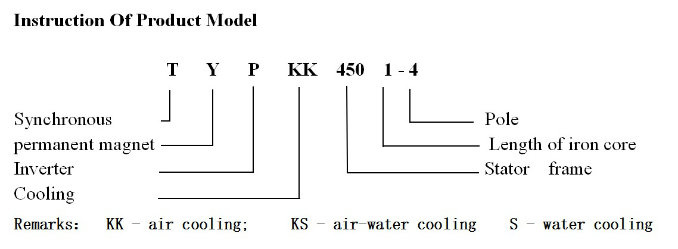

Prod Model:	TYPKK Series
Poles:	4
Application:	Industrial
Operating Speed:	Adjust Speed
Magnetic Structure:	Permanent Magnet
Structure:	Rotating Pole Type (',Armature Fixed)
Ventilation:	Closed
Operation Mode:	Inverter Control High Voltage Pm Motor(Frame 450~6
Number Of Poles:	4-Pole
Certification:	TUV
Brand:	Enn

ENNENG MOTOR FOCUS ON ENERGY SAVING PERMANENT MAGNETIC MOTOR R&D AND FABRICATION.

QUALITY IS OUR CULTURE.

Qingdao Enneng Motor Co., Ltd. (called "ENNENG") is a HI-TECH enterprise and its core competency is researching and fabrication of permanent magnetic motor(PM motor). The niche market is in China. Our PM motor has been successfully used in Chinese top leading enterprise in the field, such as Shengli Oil field, Chongqing Water Group, etc.

ENNENG is devoted to the research and development of various low speed permanent magnetic motor with high torque, special small permanent magnet servo motor and super-high speed permanent magnetic motor. With advanced production idea, strong technical strength, complete process equipment and advanced test and inspection equipment, our company is one of the leading permanent magnetic motor manufacturers. Our product can be used in port, ship, coal, water conservancy, mine, petro and power industry. We are praised and recognized by the customer for several research and development projects which wins high reputation and long-term cooperation with the customer.

ENNENG is continuously boost independent innovation, and cooperate with many colleges like China University of Mining and Technology, China Ocean University, Shandong University of Science and Technology, Xi 'an university of Science and Technology, China University of Petroleum, Beijing University of Aeronautics and Astronautics etc. We have a team with years of permanent magnetic motor experiences in the industry like mine, port, water conservancy, building materials, petro, chemical and space etc. And they have abundant professional technique and management who is familiar with motor design and production process supplying stable quality and professional service permanent magnetic motor system.

ENNENG headquarter is located in Qingdao, with factory in Dalian. 90% of the fabrication and test equipment are imported from Germany.

FOR ENERGY SAVING, USE ENNENG PM MOTOR.
