40~70HZ pure sine wave ups Advanced Parallel Technology
Application:
Data Center ,Bank Station,Network,Communication Equipment,Office,Automatic Equipment,
Monitor Equipment,Control System,Computer Center,Precision Equipment and so on

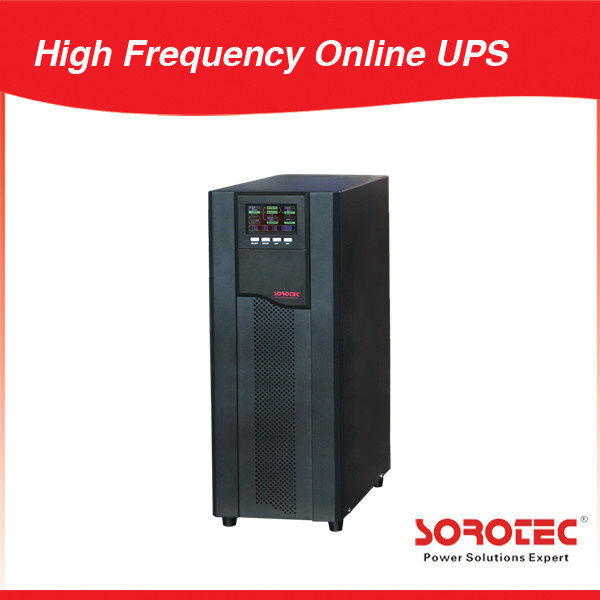

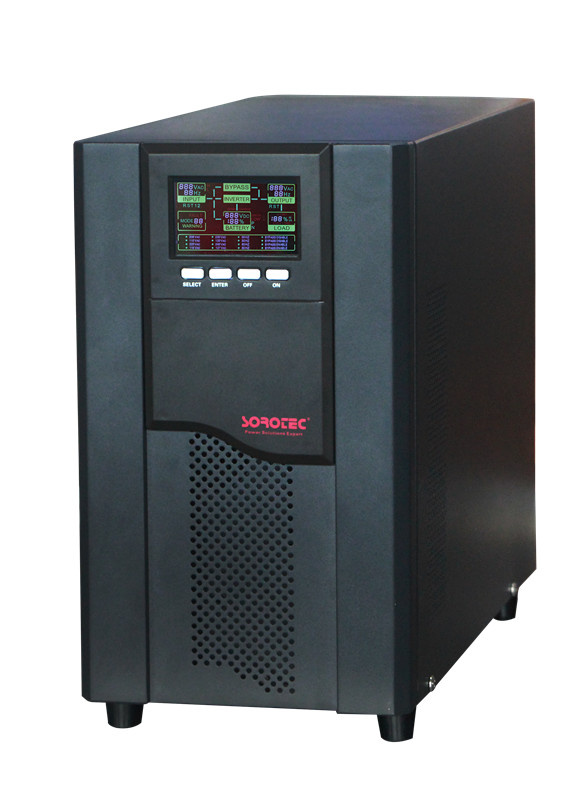

HP9116C /HP9316C 1-20KVA (1Ph in/1 Ph out& 3Ph in/1 Ph out) PLUS Series High Frequency Online UPS
| Model | HP9116C/HP9316C PLUS 1-20KVA |
| Type | High Frequency Online UPS |
| Phase | 1Ph in / 1Ph out & 3Ph in /1 Ph out |
| Capacity | 10-20kva |
| Output Power Factor | 0.9 |
| Nominal Voltage | 220/230/240/380vac |
| Nominal Frequency | 40-70HZ |
| Parallel Working | Maximum 3PCS UPS |
| Battery Voltage | 24/36/48/72/96V(1-3KVA);180/192V(6-10KVA);192/216/240V (10-20KVA) |
| Transfer Time | 0ms |
Muilti-function and Friendly Design
Advanced Parallel Technology
Stable parallel control technology make sure current sharing to 1%.
Select trip technology can avoid and isolation system fault then improved system availability.
Flexible extension capacity and redundance management that can satisfy all kinds of requirements.
Support maximum 3 units for parallel working Flexible strategy.
Flexible Strategy
On line mode provides higher system availability.
High efficiency mode provides more economic operation.
Frequency conversion provides more stable output.
More Flexible and Powerful Extendable Capacity
Battery Type Can Be Choice
1.Battery voltage can be choice depend on capacity , can satisfy different requirement.
2.Convenience to get more back up time and lower system invests.
3.Convenience to save cost of battery.
4.Intelligent battery monitors Charge current can be adjust.
Charge Current Can Be Adjust
Standant charge current 4A.
Support more discharge time and more capacity battery for 8A charger Input topology design.
Input Technology Design
1.Support three phase input or single phase input for three phase UPS
2.Super wide input voltage and frequency range suitable for bad power electirc environment
3.Digital control DSP technology and best power component make the system safe and reliable
Higher Power Factor /Higher Efficiency /Support Three Phase Input
Output Power Factor Up To 0.9
Output power factor is 0.9 that mean can take more load, if you take same load that can get higher reliability.
Input power factors up to 0.99
Three phase input model support three phase PFC , input THDI<5%
Output voltage regulation 1%, frequency regulation 0.1%, parallel current sharing 1%.
The efficiency up to 94%
Efficiency up to 93.5%when take the 30%load
ECO mode efficiency up to 98%
Technical Parameter:
| Model | HP9116C/HP9316C 10-20KVA PLUS |
| 10KT-XL | 15KT-XL | 20KT-XL |
| Rated Power | 10KVA/9KW | 15KVA/13.5KW | 20KVA/18KW |
| Rated Voltage | 220VAC/380VAC 3phase with ground |
| Rated Frequency | 40-70 Hz (50/60 Auto-sense) |
| Input |
| Voltage Range | Single phase: 120 ~ 275VAC ( 176-275VAC full load ) Three phase: 209-475VAC ( 304-475VAC full load) |
| Power Factor | >0.95(Three phase) | ≥0.99 |
| Output |
| Voltage Regulation | 208/220/230/240VAC (±1%) |
| Frequency Regulation | 50/60HZ±0.05 Hz |
| Power Factor | 0.9 |
| Voltage Distortion | Linear load<2% ,Non-Linear load<5% |
| Overload Capability | 105% ~ 125% for 10min; 125% ~ 150% for 30s,>150% for 500 ms |
| Current Crest Ratio | 3:01 |
| Transfer Time | 0ms (AC mode→Battery mode) |
| Battery |
| DC Voltage | 192VDC | 192/216V/240VDC |
| Recharge Current | 4A | 4A (8A optional) |
| Display |

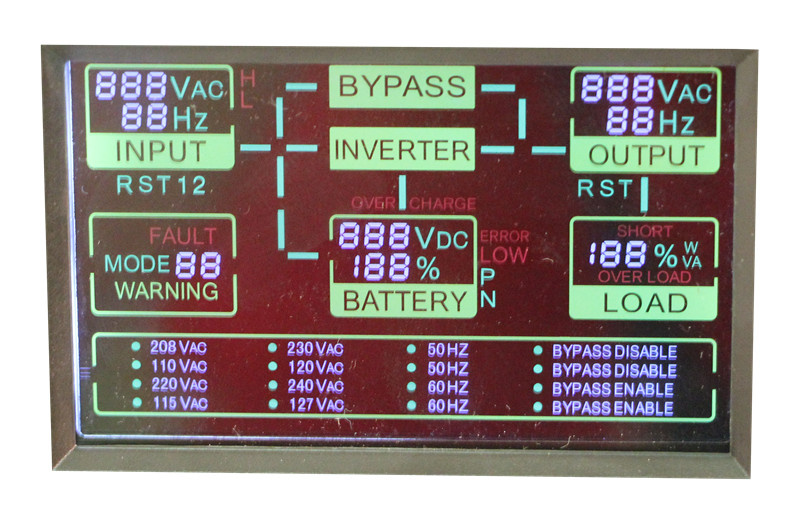

| LCD | Display input/output Voltage, Frequency, Battery voltag, Battery capacity, Loading rate. |
| Communication |

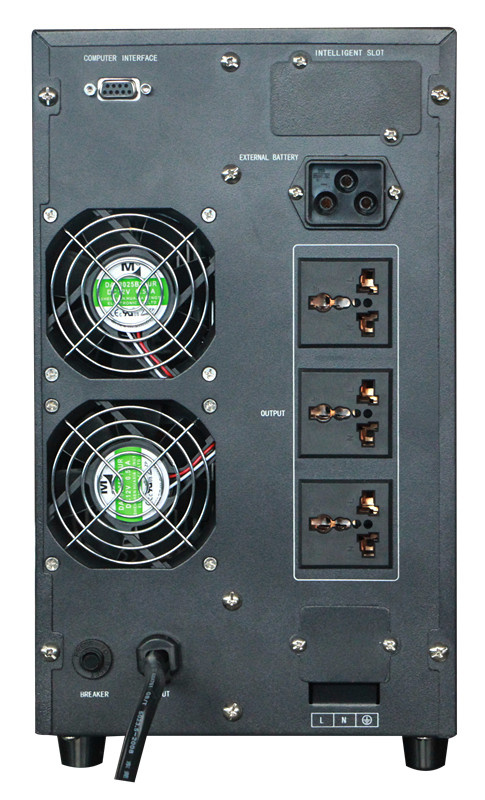

| Interface | Smart RS232,SNMP card (optional) USB (optional) |
| Environment |
| Operation Temperature | 0~40ºC |
| Humidity | 0~95% (Non-condensing) |
| Storage Temperature | -25ºC~55ºC |
| Sea Level Elevation | <1500m |
| Noise Level (1m) | <55dB |
| Physics Characteristic |
| Weight(KG) | 16.9 | 31 |
| Dimensions :(Wx D x H)mm | 212X420X500 | 248X565X500 |
Shenzhen SORO Electronics Co., Ltd is a professional manufacturer in the field of power electronics for over 10 years. We have two large production sites and one SMT department in Zhejiang and Shenzhen. SORO has been a leading ente-rprise in the UPS industry in China.
Since established, The company has carried out three strategies: Operation innovation strategy, people-oriented strategy, technical guidance str-ategy, and implemented strict scientific management with full-fledged quality management system.
The company invests 5% of its annual revenue in researching and development every year. We had international advanced equipments for developing \testing and producing. SORO invited the best technical elites at home, meanwhile, the company established perfect cooperateion relationship with domestic scientific research units and academies, to strive for making products that reach advanced world standards.
The company ranks first in passing the ISO9001 international quality system certification. We established a complete quality system ranging from material source, process, assembling to testing. Most of our products have been certified to meet international safety standards, such as CE (LVD/EMC); cUL; FCC.
We have co-operative partner throughout the world including USA, Europe, South America, South Africa, Middle Eastern, India, Turkey, Pakistan, Iran...And so on. We offer wide range quality products either from our own standard range or customer-made to your specifications. SORO is becoming the most growthful China UPS supplier all over the world.
SORO would like to cooperate with famous electric enterprise and create the briliant future based on the constant innovation spirit\uncompromising quality\the advanced technology \the standard and efficient service.
