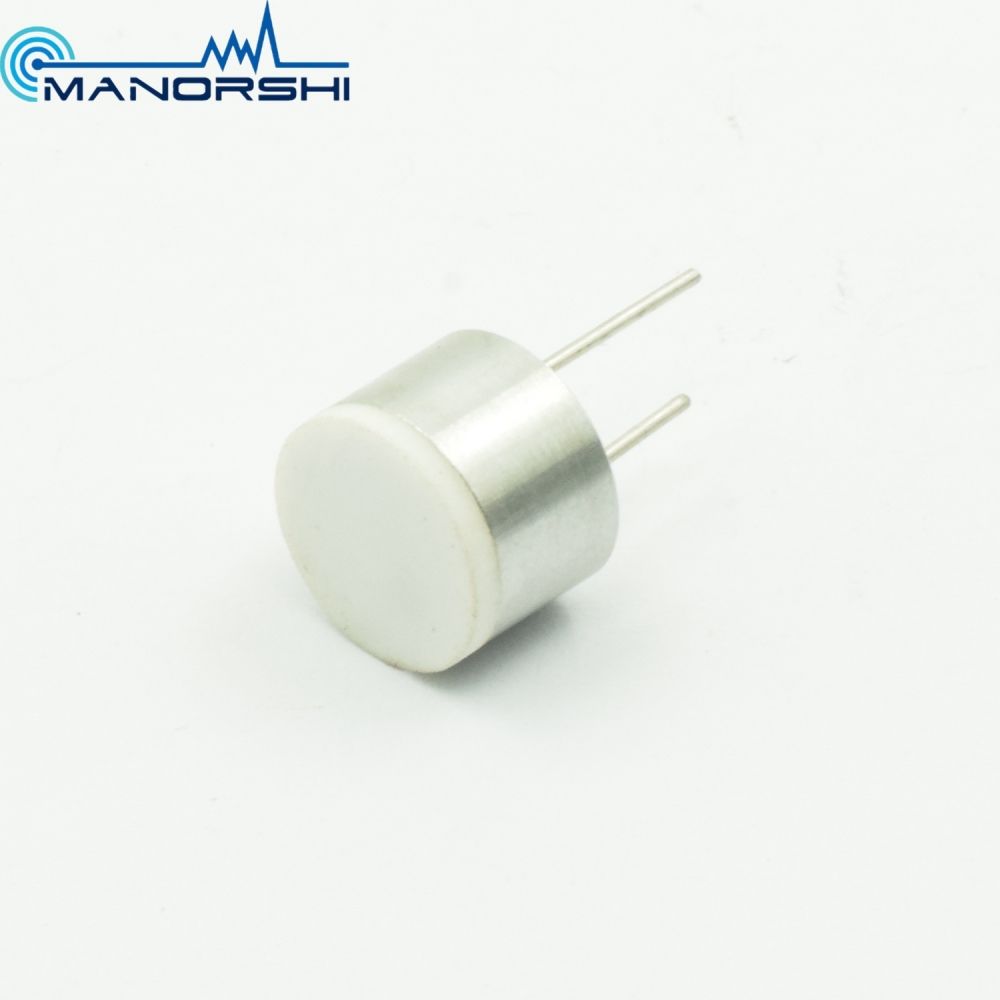

400khz high frequency ultrasonic sound sensor function as transmitter and receiver used for printer(MSW-A10400H10TR)

Specification

Part Number	MSW-A10400H10TR
Construction	High-frequency
Using method	Dual use
Center frequency	400.0±16.0KHz
Bandwidth	30.0KHz
Echo Sensitivity 0dB = 20Cp-p,50 Bursts, 10 cm	-75dB min
Min. Parallel Resistance	600Ω±30%
Capacitance	180Pf±20%
Max.Input Voltage(Pulse)	300Vp-p
Directivity (-3dB)	7°±2°
Distance of Detection	50~300mm
Protection Class	IP65
Material	Aluminum
Operating temperature	-40ºC~+80ºC
Storage Temperature	-40ºC~+85ºC

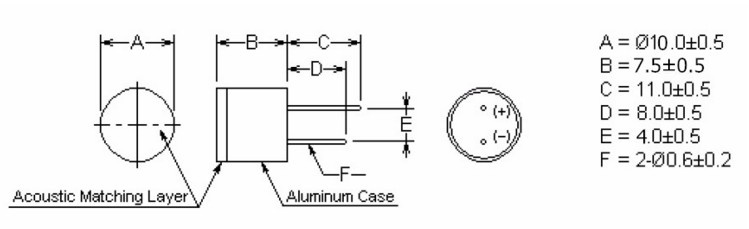

Dimension

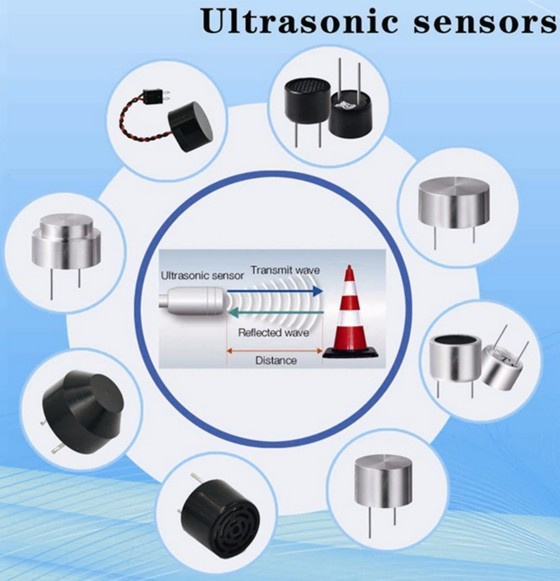

Application

Why choose us

About us
We well understand your demand of good quality, competitive prices, scheduled delivery, swift,well communication,OEM & ODM and afte-sale service . This is our advantage!

Many things to be considered and discussed before a product come into mass production. We help you to ' Print Your Idea '.

Trade show & Certification

FAQ

1.What's your MOQ?

MOQ depends of different series of products, pls contact with us.

2.Do you support OEM and ODM services?

Yes, we can customize products according to the drawing.

3.How about freight fee?

We cooperate with different express companies, enjoy the lowest discount.

4.Do you support after sales service?

The professional after-sales service team will solve all problems for you.

Prod Model:	MSW-A10400H10TR
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Product Name:	400kHz 10mm Ultrasonic Transducer with Pin
Model:	Msw-A10400h10tr
Using Method:	Dual Use
Center Frequency:	400.0±16.0kHz
Echo Sensitivity:	-75dB Min
Min. Parallel Resistance:	600Ω±30%
Capacitance:	180PF±20%
Max.Input Voltage(Pulse):	300vp-P
Directivity (-3dB):	7°±2°
Distance Of Detection:	50~300mm
