45W Single Output Open-Frame Switching Power Supply (HPS-45)

Name: 45W Single Output Open-Frame Switching Power Supply (HPS-45)
Brand: all-electronics-online.com
SKU: 13238
Availability: InStock
Rating: 4.8 (55 reviews)

Price:	US $ 9.2/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T

Contact Supplier

Showroom Product Company Profile

Prod Model:	HPS-45
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Output Type:	Single
Output Power:	1 - 50W
Voltage Regulating Mode:	Width Modulation Type
Connection Mode:	Series Switching Power Supply
Starting Mode:	Self-excited Switching Power Supply
Warranty:	2 Years
Power Supplying System:	Terminal Power Distribution Equipment
Certification:	TUV
Input Voltage:	AC90~264
Brand:	Dhecn

Product Description

Features:
·High efficiency, high reliability
·Universal AC input / Full range
·Low leakage current<0.5mA
·100% full load burn-in test
·Protections: Short circuit / Over load / Over voltage
·Cooling by free air convection
·Fixed switching frequency at 65KHz
·2 years warranty
·Dimension: 127*76.2*28mm (L*W*H)

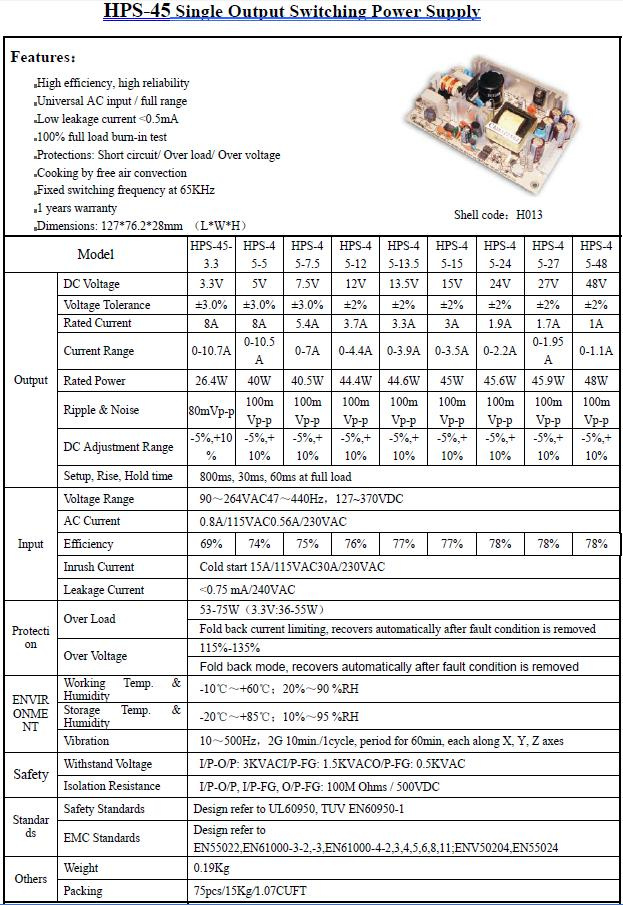

Specification:

1) INPUT
·Voltage Range: 90-264VAC, 127-370VDC; 47-63Hz
·AC Current: 0.8A/115VAC 0.56A/230VAC
·Inrush Current: Cold start 15A/115VAC 30A/230VAC
·Leakage Current: <0.75mA/240VAC

2) PROTECTION
·Over Load: 53-75W (3.3V: 36-55W); Fold back current limiting, recovers automatically after fault condition is removed.
·Over Voltage: 115%-135%; Hiccup mode, recovers automatically after fault condition is removed.

3) ENVIRONMENT
·Working Temp. & Humidity: -10ºC~+60ºC; 20%~90% RH.
·Storage Temp. & Humidity: -20ºC~+85ºC; 10%~95% RH.
·Vibration: 10~500Hz, 2G 10min./1 cycle, period for 60min, each along X, Y, Z axes.

4) SAFETY STANDARDS
·Withstand Voltage; I/P-O/P: 3KVAC; I/P-FG: 1.5KVAC; O/P-FG: 0.5KVAC
·Isolation Resistance: I/P-O/P, I/P-FG, O/P-FG: 100MΩ/500VDC
·Safety Standards: Design refer to UL60950-1, TUV, EN60950-1
·EMC Standards: Design refer to EN55022, EN61000-3-2,-3, EN61000-4-2,3,4,5,6,8,11; ENV50204, EN55024

5) OUTPUT
Type No | Output | Tol. | R&N | Effi.

HPS-45-3.5 | 3.3V, 8A | ±3% | 80mVp-p | 69%
HPS-45-5 | 5V, 8A | ±3% | 100mVp-p | 74%
HPS-45-7. 5| 7. 5V, 5.4A | ±3% | 100mVp-p | 75%
HPS-45-12 | 12V, 3.7A | ±2% | 100mVp-p | 76%
HPS-45-13.5 | 13.5V, 3.3A | ±2% | 100mVp-p | 77%
HPS-45-15 | 15V, 3A | ±2% | 100mVp-p | 77%
HPS-45-24 | 24V, 1.9A | ±2% | 100mVp-p | 78%
HPS-45-27 | 27V, 1.7A | ±2% | 100mVp-p | 78%
HPS-45-48 | 48V, 1A | ±2% | 100mVp-p | 78%
