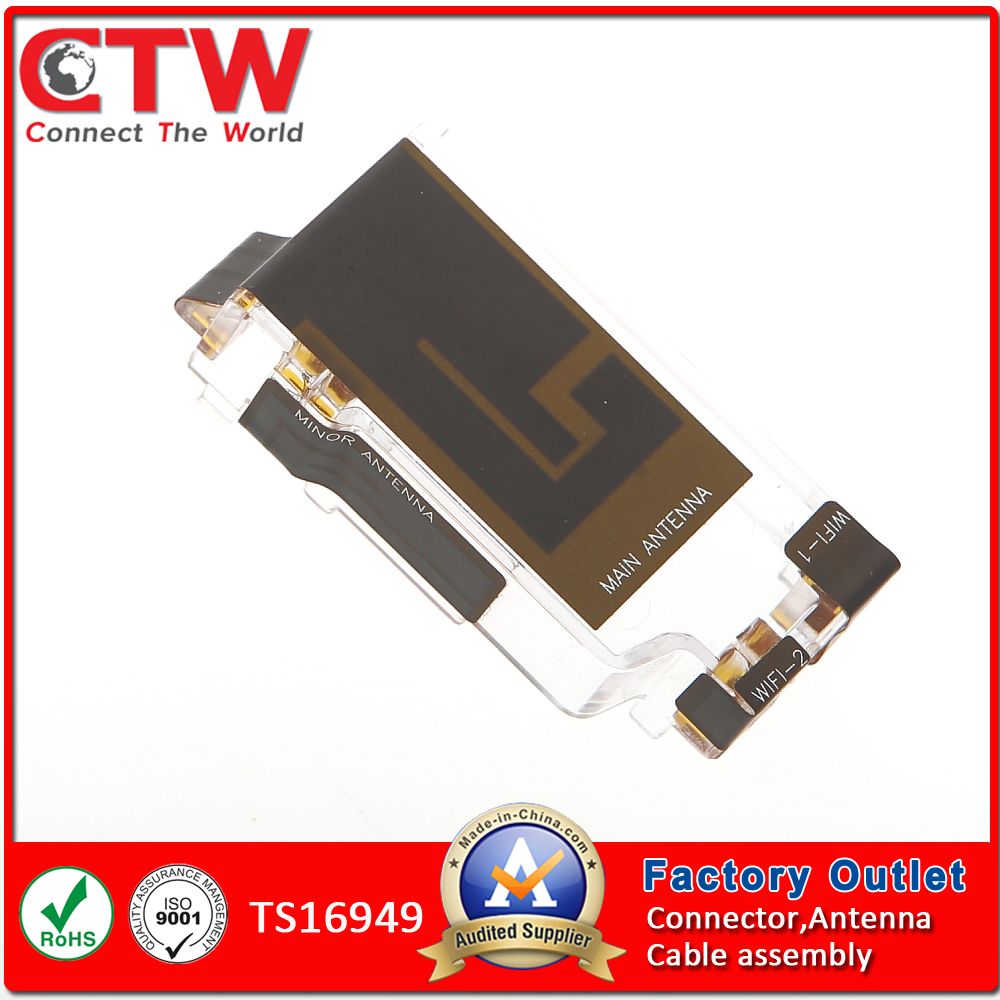

4G Built-in FPC WiFi Antenna with RoHS
Price: |
US $ 9.5/Piece |
Min Order: |
500/Piece |
Pay Type: |
T/T |
4G Built-in FPC WiFi Antenna with ROHS Product SpecificationItem | Specification |
LTE MIMO | Frequency Range | Main:824-960MHz/1710-2690MHz |
Vice:1800-2690MHz |
VSWR | <=3.0 |
Efficiency | >=40%(Average) |
Polarization | Linear |
Impedance | 50Ω |
Main and auxiliary antenna isolation | >=10dB |
WIFI MIMO | Frequency Range | WIFI1:2400-2485MHz/5000-5900MHz |
WIFI2:2400-2485MHZ |
VSWR | <=2.0 |
Efficiency | >=40%(Average) |
Gain | >=-4dBi |
Polarization | Linear |
Impedance | 50Ω |
BT | Frequency Range | 2400-2485MHz |
VSWR | <=2.0 |
Efficiency | >=40%(Average) |
Gain | >=-4dBi |
Polarization | Linear |
Impedance | 50Ω |
Structure | T-BOX Board size | 140mm×75mm |
Antenna | 55.8mm×26.5mm×14.5mm |
Scaffold material | PC/ABS |
Antenna material | Stainless steel 301 |
Installation method | Buckle type |
Working environment | Operating temperature | -40ºC~+85ºC |
Relative humidity | 95% |
shock | 5Hz-200Hz Per axis 8 hours |
Surroundings | Meet ROHS |
Features and Benefits- Strong R&D team which is dedicated to research,design,analyze and test innovative antenna systems
- Professional and efficient mechanical and RF simulation toolis to make sure the perfect antenna performances
- One stop solution to design and manufacture all kinds of antennas for industrial and automotive applications
- Provided quad band,muti-function module,AM/FM short whip,embedded BT antenna,stealth GSM and GPS antenna,and the TPM antenna,RFID antenna
- Customeized and standard antennas design and manufacture
- Strict quality control and end to end process
Applications- Industrial RFID antenna
- Asset tracking external /internal antenna
- Automotive muti-function antenna
- Wireless alam,security and monitoring systems
- Vehicle tracking systems
FAQQ: Could i use my own LOGO or design on goods?
A: Yes, customized logo and design on mass production are available.
Q:May I visit your factory?
A: Sure, welcome any time.
Q: What's your company MOQ?
A: our company don't have MOQ. We also accept small quantity.
Q: Can your company accept customize?
A: Welcome OEM & ODM.
Q: What's your delivery time?
A:If our company have stock ,will send to you within one day once receive your deposit.
If use customer brands, we will take some days to prepare materials and mass production.
Q: How do you solve after sale service?
A: This please ask us for technical support if you have workers know how to repair.
If do not have engineers, please send back the items, we can repair the items for you or we will re-produce for you.
Q: Can you send a sample for us to develop?
A: Yes, we can. Sample can be sent out once you ask for it, if the samples cost is very higher , we will ask a sample fee.At the same time. the Sample fee will return back in future order. If the
samples cost is lower, we can send it to you free, but shipping cost will be took .
Impedance: |
50Ω |
Connector: |
Fakea |
Installation Method: |
Screw or Tape |
Radome Material: |
PC/ABS |
Usage: |
GPS |
Operating Wavelength: |
Microwave |
Directionality: |
Omnidirectional Antenna |
Material: |
N/a |
VSWR: |
Less Than 2.5 |
Base Antenna: |
Automotive Antenna |
Nature Of Operation: |
Recieve and Transimit |
Sturcture Form: |
PCBA with Cable |
Dimensionality: |
Linear |
