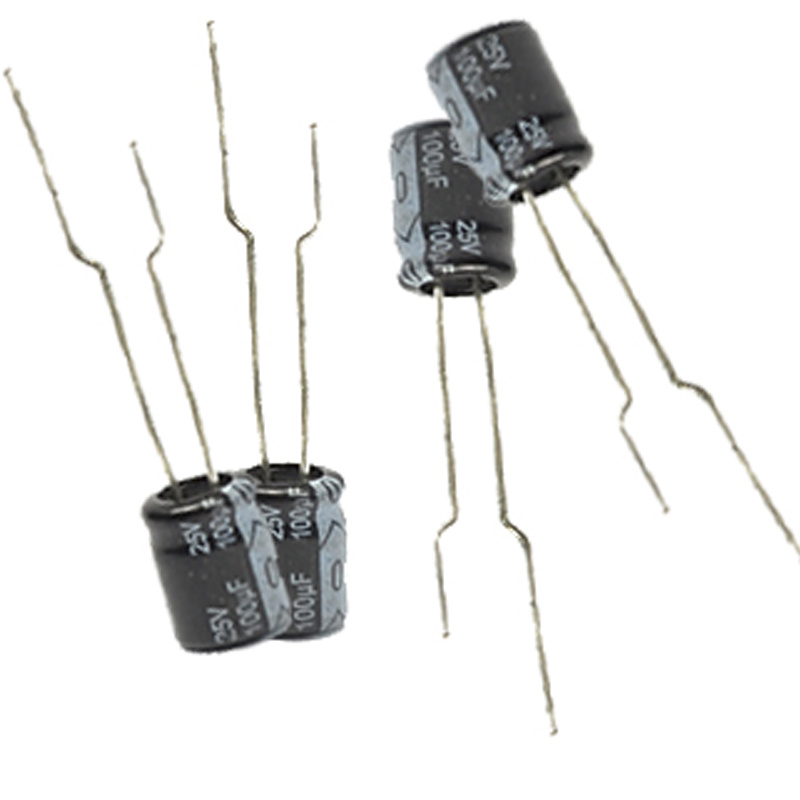

5mm Miniature Size Aluminum Electrolytic Capacitor 105c
| Price: |
US $ 0.0083/Piece |
| Min Order: |
10000/Piece |
| Pay Type: |
T/T |
| Prod Model: |
TMCE11 |
| Height: |
5mm |
| Load Life: |
2000hrs |
| Type: |
Aluminum Electrolytic Capacitor |
| Application: |
General Purpose |
| Package Type: |
Through Hole |
| Capacitance: |
47UF |
| Tuning: |
Electrolytic Capacitor |
Product Description
Miniature Size 5mm Aluminum Electrolytic Capacitor 105C
Features:
Load Life of 1000hrs at 105C.
5mm L, standard type.
Application: VTR, vedio camera, car radio, micro cassette, tape recorder, etc.
Specifications:
| ems | Characteristics |
| Capacitance Tolerance | ±20% (120Hz, 20ºC) |
|
| Operating temperature Range | -55~+105ºC | -40~+105ºC | -25~+105ºC |
|
| Rated Voltage Range | 6.3~100V | 160~400V | 450V |
|
| Leakage Current | WV <= 100V, I <= 0.01CV or 3uA(After 2 minutes application of DC working voltage, at 20ºC) |
| WV > 100V, I <= 0.03CV+20 (uA) (After 5 minutes application of DC working voltage, at 20ºC) |
| Dissipation Factor(tan δ) | Measurement Frequency: 120Hz. Temperature: 20ºC |
| Rated Voltage (V) | 6.3 | 10 | 16 | 25 | 35 | 50 | 63 | 100 | 160~250 | 350 | 400~450 |
| tan δ (MAX) | 0.20 | 0.17 | 0.16 | 0.14 | 0.12 | 0.10 | 0.08 | 0.08 | 0.15 | 0.20 | 0.25 |
| When nominal capacitance exceeds 1000uF, add 0.02 to the value above for each 1000uF increase. (20ºC,120Hz) |
| Low Temperature Stability | Measurement Frequency: 120Hz. |
| Rated Voltage (V) | 6.3 | 10 | 16 | 25 | 35 | 50 | 63~100 | 160~250 | 350,400 | 450 |
| Impedance Ratio (MAX) | Z (-25ºC) / Z (20ºC) | 4 | 3 | 2 | 2 | 2 | 2 | 2 | 3 | 6 | 15 |
| Z (-40ºC) / Z (20ºC) | __ | __ | __ | __ | __ | 3 | 3 | 4 | 10 | __ |
| Z (-55ºC) / Z (20ºC) | 8 | 6 | 4 | 3 | 3 | 3 | __ | __ | __ | __ |
| Load Life | 3000 hours, with application of working voltage at 105ºC. |
| Capacitance Change | Within ± 20% of Initial Value |
| tan δ | 200% or less of Initial Specified Value |
| Leakage Current | Initial Specified Value or less |
| Shelf Life | 1000hours, no voltage applied, at 105ºC. After Test:UR to be applied for 30 minutes, 24 to 48 hours before measurement. |
| Capacitance Change | Within ± 20% of Initial Value |
| tan δ | 150% or less of Initial Specified Value |
| Leakage Current | Initial Specified Value or less |
| Standards | JIS C 5141 and JIS C 5102 |
