| Prod Model: |
10mm power cable |
| Type: |
Low Voltage and Medium Voltage |
| Conductor Material: |
Copper Core |
| Range Of Application: |
Rvv Rvvp Rvsp Rvvps |
| Company Type: |
Factory |
| Delievery Time: |
Within 5-10days |
| Standards: |
ASTM, AS/NZS, BS, CSA, DIN, I |
| Ransport Package: |
All Wooden, Coils or as Per Your Request Package |
| Color: |
Black as Per Your Customer Required |
| Rated Voltage: |
1kv |
| Product Type: |
Insulated |
| Application: |
Computer |
| Voltage: |
Low and Medium Voltage Cable |
| Current: |
AC Cable |
| Insulation Material: |
PVC |
| Certification: |
VDE |
| Material Shape: |
Round |
| Wire Core Material: |
Copper Core |
| Model: |
3X240+1X120mm2 Power Cable |
| Brand: |
Ronju |
Product Description

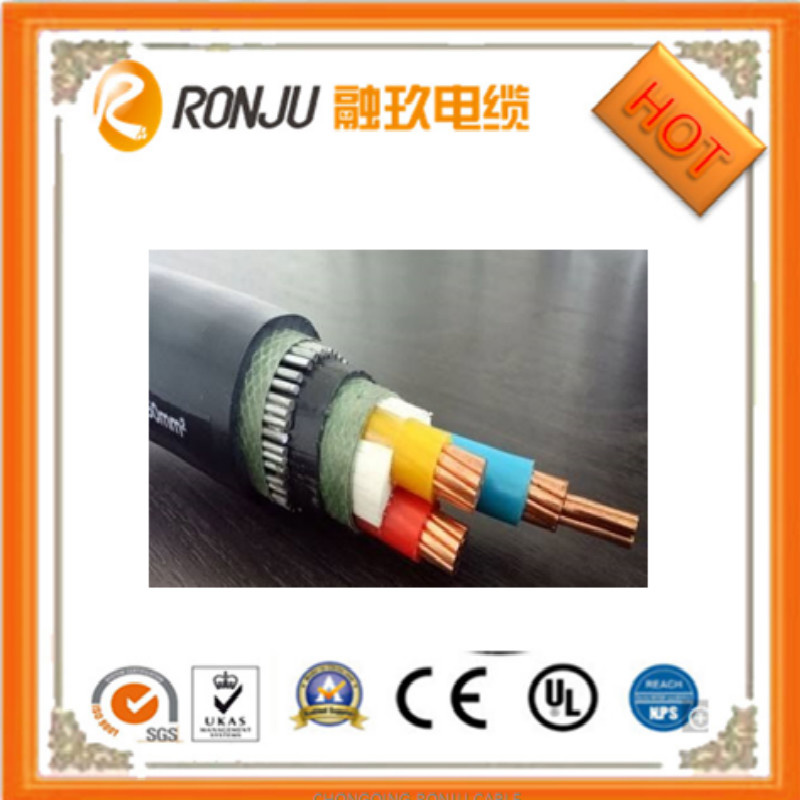

600/1000V Electrical Cable Wire 10mm power cable 1.Application: The product applies to wiring for automated equipment under AC rated voltage 600/1000V . 2.Model Representation: •B-wire,flat shape, parallel lines
•V-PVC
•R-Flexible wire
•L-Aluminum core conductor
3.Product Description:| Type | Name | Application |
Cu Conductor | Al Conductor |
YJV YJY | YJLV YJLV | XLPE Insulated,PVC or PE S heathed Power Cable | For laying in door,tunnel,channel and underground.Unable to bear external mechanical force,but bear the traction force during laid. |
YJV22 YJV23 | YJLV22 YJLV23 | XLPE Insulated,Steel Tape Armoured,PVC or PE Sheathed Power Cable | For laying in tunels in door,tunnel,channel and underground.Able to bear external mechanical force,but unable to bear large pulling force. |
YJV32 YJV33 | YJLV32 YJLV33 | XLPE Insulated,Fine Steel Wire Armoured,PVC or PE Sheathed Power Cable | For laying in shaft with large difference of level.Able to bear external mechanical force,and moderable pulling force. |
YJV42 YJV43 | YJLV42 YJLV43 | XLPE Insulate,Thick Steel Wire Armoured,PVC or PE Sheathed Power Cable | Able to bear positive pressure and pulling force |
| U0/Um(kv) | 1st class | 0.6/1 | 1.8/3 | 3.6/6 | 6/10 | 8.7/15 | 12/20 | 18/30 | 21/35 |
2nd class | 1/1 | 3/3 | 6/6 | 8.7/10 | 12/15 | 18/20 | - | 26/35 |
1 Core | Section area(mm2) | 1.5-800 | 25-800 | 25-800 | 25-800 | 35-800 | 50-800 | 50-800 | 50-800 |
2 Core | Section Area(mm2) | 1.5-185 | / | / | / | / | / | / | / |
3 Core | Section area(mm2) | 1.5-400 | 25-400 | 25-400 | 25-400 | 35-400 | 50-400 | 50-400 | 50-400 |
4 Core | Section Area(mm2) | 2.5-400 | 25-400 | / | / | / | / | / | / |
5 Core | Section area(mm2) | 2.5-400 | 25-400 | / | / | / | / | / | / |
Specification Sheet |
Production Name | RVV 3*2.5mm2 | Product description |
Production Structure | 1,Executive standard: GB 5023-2008 2,Rated voltage:300/500V 3,rated temperature:0ºC - 90ºC |
Conductor | Structure | 3×49/0.25mm |
Material | Oxygen-free strands copper |
Diameter | 0.25mm |
Insulation | Color | / |
Material | PVC | Product characteristic |
diametre | 0.8mm | This cable is suitable for ac rated voltage 300/500v and below of domestic electrical applicances.Of smaller size motoriace tools.Of instruments.Of various meters and motorized lighting installations. |
Cabling Assembing | structure | / |
Filler material | / |
winding material | / |
shielding | Material | / |
coverage | / |
Jacket | color | custom |
Material | PVC |
Thickness | 1.0mm | Noted |
Cable diametre | 11.5mm | |
Mark | |
packaging | Export Wooden Reel or Plastic Coil |
Product structure diagram |
|
| Norminal sectiom(mm²) | Core structure no./diameter(mm) | Maximum diameter(mm) | Reference weight(kg/km) |
|
|
| 2×0.75 | 2×24/0.20 | 7.6 | 50.0 |
|
|
| 2×1.0 | 2×32/0.20 | 7.8 | 57.8 |
|
| 2×1.5 | 2×30/0.25 | 8.8 | 74.7 |
|
| 2×2.5 | 2×49/0.25 | 11 | 120.0 |
|
| 3×0.75 | 3×24/0.20 | 8 | 63.1 |
|
| 3×1.0 | 3×32/0.20 | 8.4 | 74.0 |
|
| 3×1.5 | 3×30/0.25 | 9.6 | 102.0 |
|
| 3×2.5 | 3×49/0.25 | 11.5 | 162.0 |
|
| 4×0.75 | 4×24/0.20 | 8.6 | 78.5 |
|
| 4×1.0 | 4×32/0.20 | 9.2 | 97.2 |
|
| 4×1.5 | 4×30/0.25 | 11 | 133.0 |
|
| 4×2.5 | 4×49/0.25 | 12.5 | 204.0 |
|
| 5×0.75 | 5×24/0.20 | 9.4 | 96.9 |
|
| 5×1.0 | 5×32/0.20 | 11 | 115.0 |
|
| 5×1.5 | 5×30/0.25 | 12 | 158.0 |
|
| 5×2.5 | 5×49/0.25 | 14 | 249.0 |
|
COMPANY PROFILEChongqing RonJu Co.,LTD which was established with registered capital of 100,000,000 RMB in 2016 Sited in Xi YOng, an industrialized area in shapingpa,.
Chongqing ron ju co.,ltd integrates innovation, generation and sale of cables on a highly efficient production line. Our product is currently widely embraced in multiple areas ranging from electricity to transportation and even urban modernization, proving its versatility and sustainability.
We specializes in manufacturing all kinds of cables with different voltage power cables, control cables, building wires, aluminum alloy cables, aerial cable and other special cables.
We exported all kinds of cables and wires to America,Europe,Australia,Africa,Asia,and so on.Our company got the certificate for ISO 9001 quality system certificate;ISO14001 environmental management system certificate. All the products produce according to,IEC , GB standard.Besides,We also manufacture products according to customer's requirement.
Our team, young and industrious, is dedicated in advancing product itself and the production technique as well, maintaining the established user base, enlarging it through constantly providing high quality products and impeccable service, which are also the sound ground for our branding in this intensely competing international.

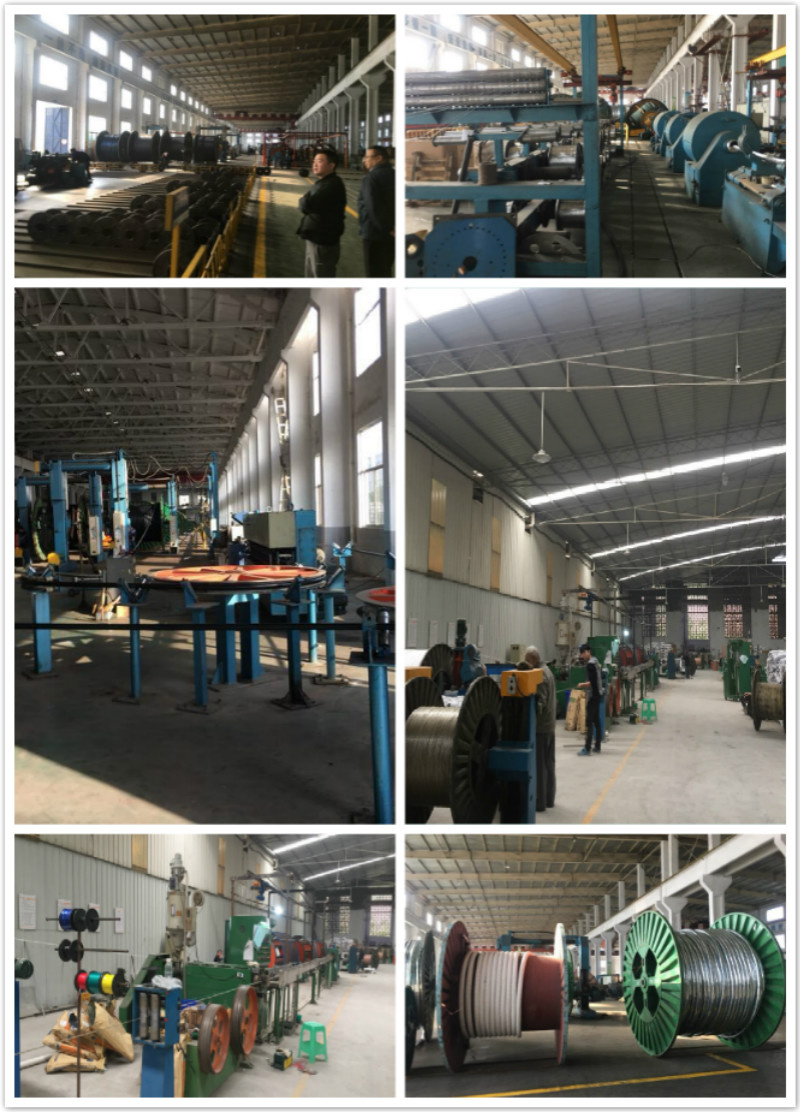

With highly specialized products and constantly generated power, our company, R. J. Cable, establishes its "three-in-one" branding (the brand of entrepreneurs, of enterprises, and of products) and pursues a long-term proceeding. Our marketing is distinct for its market-oriented strategies and immediate responses to volatility. Such qualities significantly fuel a dynamically proceeding company. Our Factory:

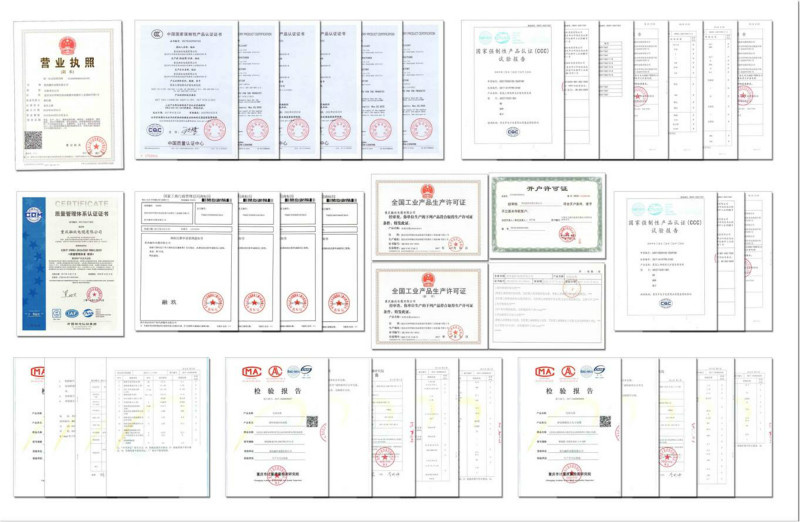

Our Certification:

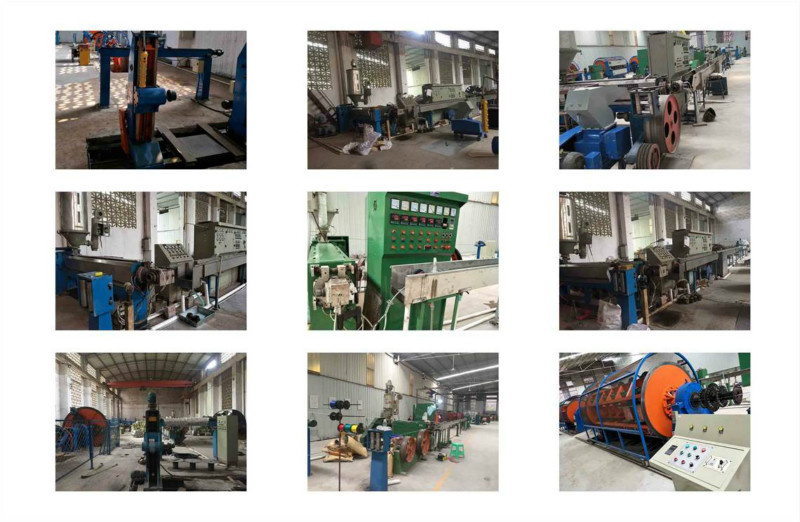

Our Advance Equipment:
Our Good Transportation:

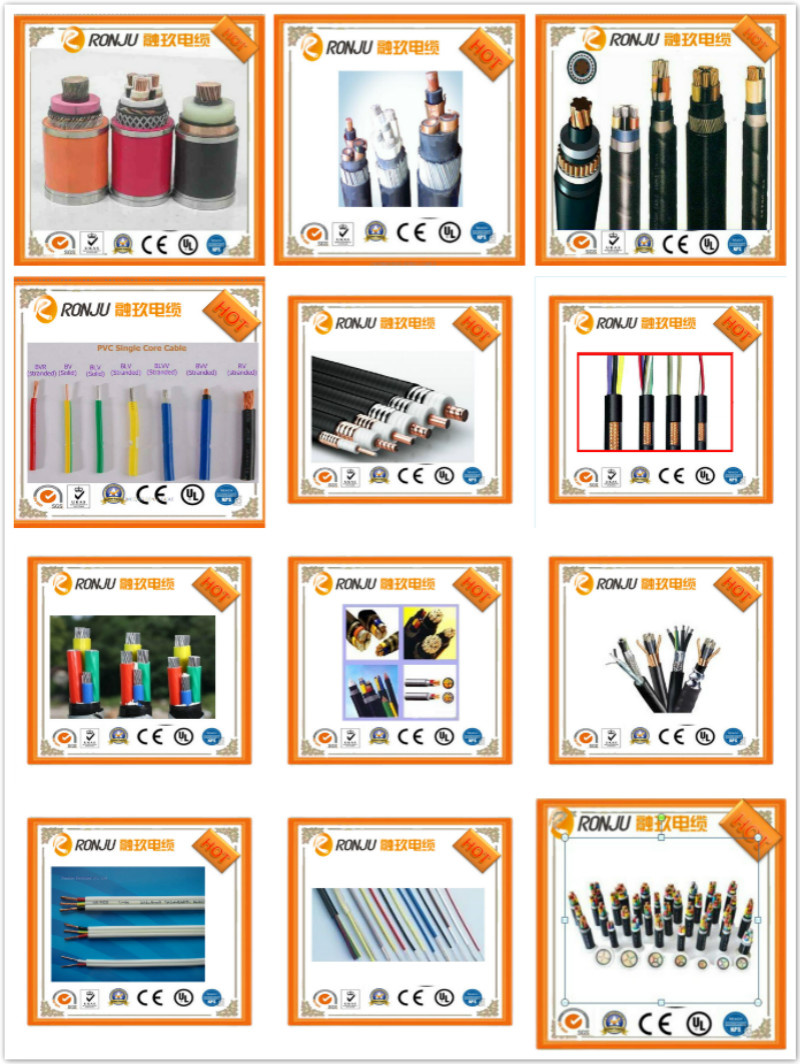

Our Main Products:
FAQ: Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. Or it is 10-15 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples? Is it free or extra?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
Q: What is your MOQ?
A:Generally,we make mass production based on MOQ1000M, But if bulk package is ok for you, we can accpet lower order quantity like 500M.
Q: How about your price?
A:We will do our best to offer a good price for our customers, usually our price is worked out according to the current exchange rate, probable order quantity, most important is your sincerity on cooperation!
