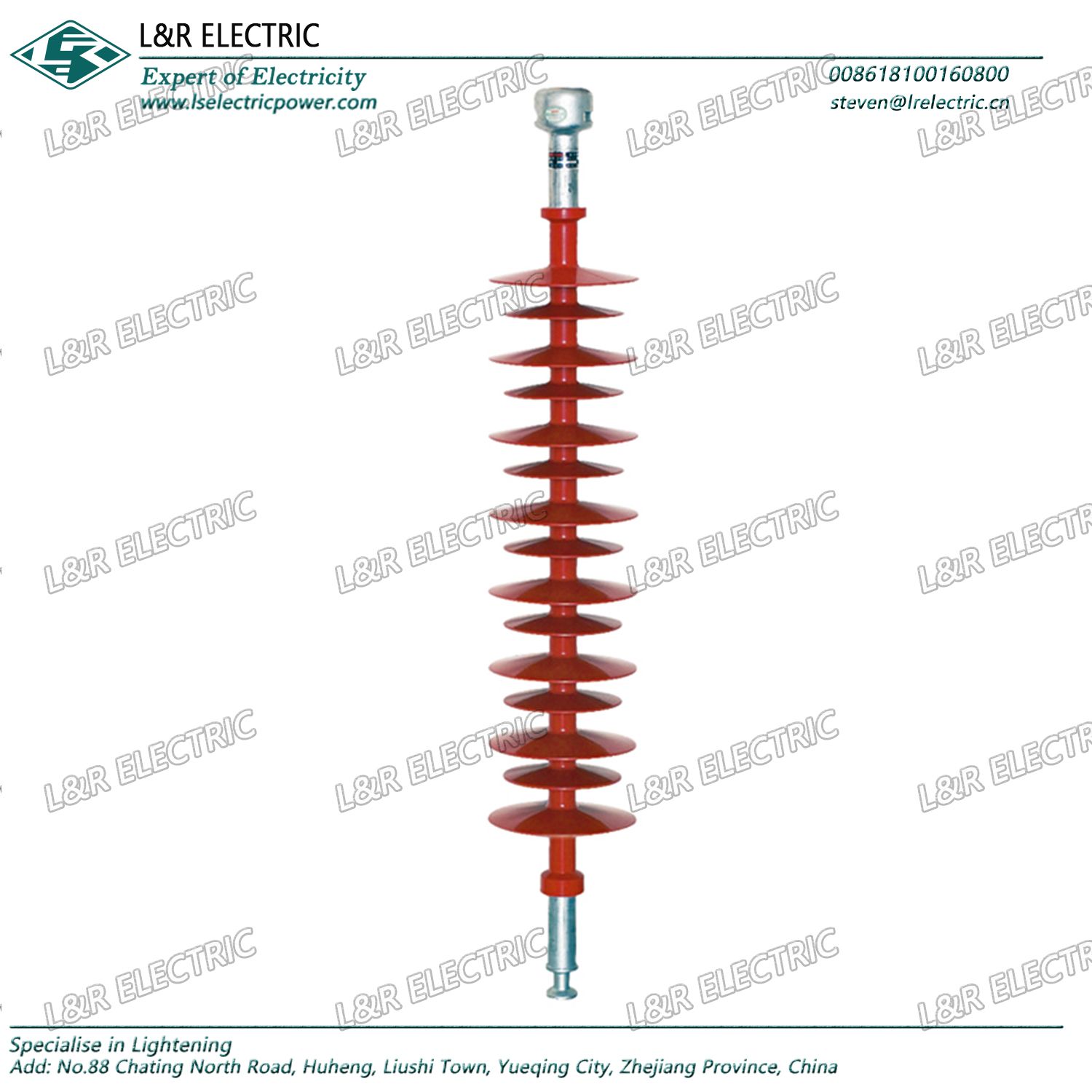

66kv 120kn Composite Tension Insulator, Socket Ball Ended

Name: 66kv 120kn Composite Tension Insulator, Socket Ball Ended
Brand: all-electronics-online.com
SKU: 836244785
Availability: InStock
Rating: 4.9 (37 reviews)

Price:	US $ 15.76-16.12/Piece
Min Order:	50/Piece
Pay Type:	L/C,T/T,D/P,Western Union

Contact Supplier

Showroom Product Company Profile

Application for suspension insulators

Composite tension insulators are often used in overhead power line, working as devices to provide insulation in
between conductor and transmission poles, with the help of hardware fittings.

Parameters

Product Model	Rated Voltage (KV)	Rated Mechanical bending load(kN)	Structure Height (mm)	Minimum Arc distance (mm)	Minimum creepage distance (mm)	Diameter of shed (mm)	Lightning impulse withstand voltage (peak kV)	P.F. 1min wet withstand voltage (kV)	Connect size
FXBW4-6/70	6	70	270 ±5	80	260	140/118	60	25	16
FXBW4-10/70	10	70	310±5	175	425	125/95	95	42	16
FXBW4-10/100	10	100	367±5	220	460	125/95	95	42	16
FXBW4-35/70	35	70	670±15	490	1350	138/128	230	95	16
FXBW4-35/100	35	100	670±15	450	1320	148/118	230	95	16
FXBW4-66/70	66	70	870(940) ±15	710	2248	148/118	410	185	16
FXBW4-66/100	66	100	870(940) ±15	710	2248	148/118	410	185	16
FXBW4-110/100	110	100	1240(1440) ±15	1000(1200)	3150(3860)	148/118	550	230	16
FXBW4-110/160	110	160	1340±15	1000	3380	148/118	550	230	R20
FXBW4-145/120	145	120	1490±30	1240	4123	148/118	725	355	16
FXBW4-220/100	220	100	2240 (2350) (2470) ±30	2020 (2080) (2210)	6450 (6760) (7150)	148/118	1000	395	16
FXBW4-330/160	330	160	2990 ±30	2600	9075	148/118	1425	570	R20
FXBW4-220/210(160)	220	210/160	2350 ±30	2000	6800	158/128	1000	230	R20
FXBW4-330/210(160)	330	210/160	2930 ±30	2660	8790	158/128	1425	570	R2O
FXBW4-500/210(160)	500	210/160	4490 ±30	4075	14860	195/158/128	2060	740	R20

Prod Model:	FXBW-66/120
Application:	High-voltage
Material:	Composite Polymer
Structure:	Strain Insulator
Type:	B Type Insulator
Connection Method:	Socket & Ball
Size Of Bearing Capacity:	120kn
Color:	Red or Grey
Brand:	L&R

Zhejiang Lawrence Electric Co., Ltd (referred as L&R) is located in Zhejiang China. It is composed by some branch companies, we also invested some domestic and foreign EPC projects.

L&R has possessed one of the major suppliers in the power and electrical fields for electrical

Projects in the world. Almost all products manufactured by the L&R members have been certified

By KEMA, CE, SGS and CNAS approved Lab.

L&R have been supplying Zinc Oxide Varistors, Surge Arresters, insulators, Fuse Cutouts, Air

Break switch, Load break switch, Vacuum Circuit Breaker, Isolators, Transformers, Switchgear,

Earth rods, Stay Rods, Pole Make Off, Guy grip, stay wire, Crossarm, clamp, bolts, Line hardware

And so on. Our member companies are required to have a long term proven track record of meeting contract

Obligations, superior quality, current technology and state-of-the-art manufacturing facilities.

Over a period of 10 years, our business has extended to South America, Middle East, Southeast

Asia, Africa, and other regions, and we had our sale agent and 4S maintenance company in some countries. To achieve the strategic objective of development, we are seeking for partners

For our sale agent and maintenance company in all the worldwide.
