| Prod Model: |
TL62200 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
305*168*222(Mm) |
| Weight: |
29.5kg |
| Color: |
Black/ White/ Grey |
| Company Type: |
Factory |
| Container Material: |
ABS |
| Configuration: |
Rt18A11+/12- |
| Terminal Type: |
F10 |
| Norminal Voltage: |
6V220ah |
| ODM/OEM: |
Yes |
| Port: |
Shenzhen |
| Type: |
Lead-Acid Batteries |
| Usage: |
Electric Bicycle |
| Rechargeable: |
Chargeable |
| Discharge Rate: |
High Discharge Rate |
| Shape: |
Square Battery |
| Nominal Voltage: |
6V |
Product Description

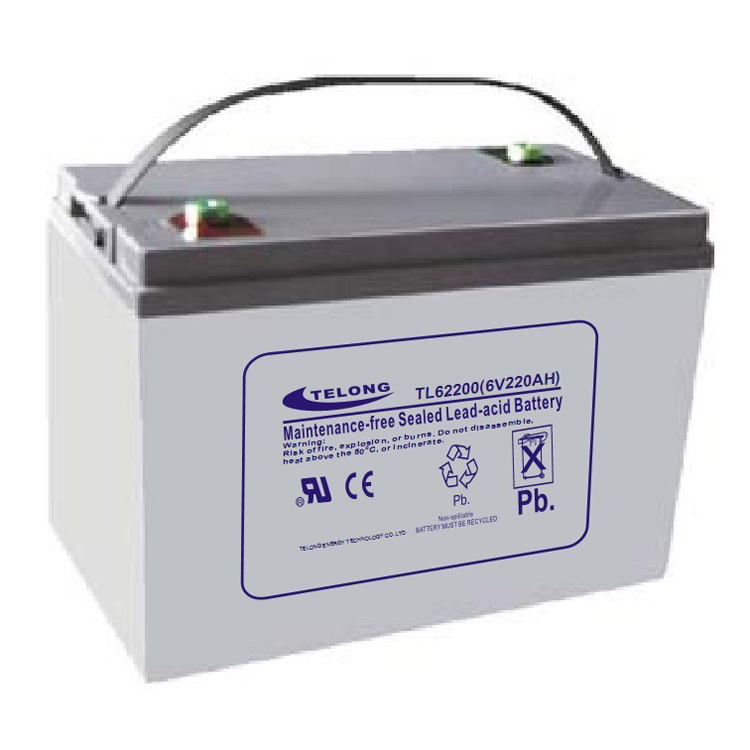

Rechargeable Golf Cart Battery 6V 220ah Deep Cycle Batteries for Solar Battery UPS Battery(CE RoHS UL ISO)
Model Number: TLD220-6
Product Description
1. General Features
-Absorbent Glass Mat (AGM) technology for efficient gas recombination of up to
99% and freedom form electrolyte for air transport-complies with LATA/ICAO Special provision A67.
-Not restricted for air transport-complies with LATA/ICAO Special Provision A67.
-UL-recognized component.
-Can be mounted in any orientation.
-Computer designed lead, calcium tin alloy grid for high power density.
-Long service life, float or cyclic applications,
-Maintenance-free operation
-Low self discharge.
-Case and cover available in both standard and flame retardant ABS.
2. Specification
Nominal Voltage: 6V220AH Deep Cycle Battery
Dimension: 305*168*222(Mm)
Color: Black/ White/ Grey
Container Material: ABS
Configuration: RT18A11+/12-
Terminal Type: F10
ODM/OEM: Yes
3. Applications
UPS and computer standby power supply, Solar and wind system, Control system, Telecommunication system, Emergency light system, Alarm system, Security system, Firefighting equipment standby power supply, Railway system, Ship equipment, Aeronautical facility, Electric toys, Power tools, Emergency lamp, Medical treatment equipment, Power system, Power station, Standby power supply, Military equipment, Telephone switching system and Etc
4. Notice
- Don't put the battery exposure or lost in the fire.
- Don't make the wrong terminals connected when charging.
- Avoid battery short circuit.
- Avoid excessive physical shock or vibration.
- Don't disassemble or deform the battery.
- Keep out of the reach of children.
- Never use a modified or damaged charger.
- Store the battery in a cool, dry and well-ventilated area.
- Regulations vary in different countries, dispose of in accordance with local regulations.
5. Welcome to visit our website
http://www.sztlg.com/
Heep: //tlgbattery. En. Made-in-China. Com/
| Model | Nominal Voltage(V) | Rated Capacity(Ah) | Dimension | Weight | Terminal |
| L | W | H | Total Height |
| mm | in | mm | in | mm | in | mm | in | kg | pound |
| TLD12-6 | 6 | 12 | 151 | 5.94 | 50 | 1.97 | 94 | 3.7 | 100 | 3.94 | 1.7 | 3.75 | F2 |
| TLD14-6 | 6 | 14 | 108 | 4.25 | 71 | 2.79 | 140 | 5.51 | 140 | 5.51 | 2.3 | 5.07 | F1/F2 |
| TLD100-6 | 6 | 100 | 195 | 7.68 | 170 | 6.69 | 207 | 8.15 | 213 | 8.39 | 16.5 | 36.4 | F12 |
| TLD150-6 | 6 | 150 | 260 | 10.2 | 180 | 7.09 | 247 | 9.72 | 251 | 9.88 | 23.5 | 51.8 | F10 |
| TLD180-6 | 6 | 180 | 306 | 12 | 168 | 6.61 | 220 | 8.66 | 226 | 8.9 | 26.8 | 59.1 | F12 |
| TLD200-6A | 6 | 200 | 306 | 12 | 168 | 6.61 | 220 | 8.66 | 226 | 8.9 | 28.3 | 62.4 | F12 |
| TLD200-6B | 6 | 200 | 250 | 9.84 | 125 | 4.92 | 362 | 14.3 | 366 | 14.4 | 31.0 | 68.3 | F12 |
| TLD200-6C | 6 | 200 | 260 | 10.2 | 180 | 7.09 | 247 | 9.72 | 251 | 9.88 | 29.0 | 63.9 | F10 |
| TLD220-6 | 6 | 220 | 260 | 10.2 | 180 | 7.09 | 247 | 9.72 | 251 | 9.88 | 31.0 | 68.3 | F10 |
| TLD225-6 | 6 | 225 | 320 | 12.6 | 176 | 6.93 | 225 | 8.86 | 229 | 9.02 | 32.0 | 70.5 | F12 |
| TLD300-6 | 6 | 300 | 295 | 11.6 | 178 | 7.01 | 345 | 13.6 | 365 | 14.37 | 48.0 | 105.8 | F12/AM |
| TLD150-82 | 8 | 150 | 260 | 10.2 | 182 | 7.17 | 295 | 11.6 | 299 | 11.8 | 29.5 | 65.0 | F12 |
| TLD7-12 | 12 | 7 | 151 | 5.94 | 65 | 2.56 | 93 | 3.66 | 99 | 3.9 | 2.2 | 4.85 | F2 |
| TLD12-12 | 12 | 12 | 151 | 5.94 | 98 | 3.86 | 95 | 3.74 | 101 | 3.98 | 3.4 | 7.49 | F2 |
| TLD17-12 | 12 | 17 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | 5.2 | 11.46 | F3 |
| TLD20-12 | 12 | 20 | 181 | 7.13 | 77 | 3.03 | 167 | 6.57 | 167 | 6.57 | 5.4 | 11.9 | F3 |
| TLD24-12 | 12 | 24 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | 7.6 | 16.8 | F4 |
| TLD28-12 | 12 | 28 | 166 | 6.54 | 175 | 6.89 | 125 | 4.92 | 125 | 4.92 | 8.3 | 18.3 | F4 |
| TLD33-12 | 12 | 33 | 195 | 7.68 | 130 | 5.12 | 155 | 6.1 | 168 | 6.61 | 10.2 | 22.5 | F11 |
| TLD40-12 | 12 | 40 | 197 | 7.76 | 165 | 6.5 | 170 | 6.69 | 170 | 6.69 | 12.8 | 28.2 | F11 |
| TLD45-12 | 12 | 45 | 197 | 7.76 | 165 | 6.5 | 170 | 6.69 | 170 | 6.69 | 13.5 | 29.7 | F11 |
| TLD50-12 | 12 | 50 | 250 | 9.84 | 160 | 6.3 | 178 | 7.01 | 197 | 7.76 | 15.8 | 34.84 | F5 |
| TLD55-12 | 12 | 55 | 239 | 9.41 | 132 | 5.2 | 205 | 8.07 | 210 | 8.27 | 16.6 | 36.6 | F11 |
| TLD65-12 | 12 | 65 | 350 | 13.8 | 167 | 6.57 | 179 | 7.05 | 179 | 7.05 | 19.6 | 43.2 | F11 |
| TLD75-12 | 12 | 75 | 260 | 10.24 | 169 | 6.65 | 208 | 8.19 | 212 | 8.35 | 21.5 | 47.4 | F21 |
| TLD80-12 | 12 | 80 | 350 | 13.8 | 167 | 6.57 | 179 | 7.05 | 179 | 7.05 | 21.8 | 48.0 | F11 |
| TLD90-12 | 12 | 90 | 306 | 12.05 | 169 | 6.65 | 208 | 8.19 | 212 | 8.35 | 26.5 | 58.4 | F21 |
| TLD100-12 | 12 | 100 | 328 | 12.92 | 171 | 6.74 | 214 | 8.43 | 218 | 8.59 | 30.5 | 67.2 | F12 |
| TLD120-12 | 12 | 120 | 410 | 16.14 | 176 | 6.93 | 227 | 8.94 | 227 | 8.94 | 35.5 | 78.24 | F12 |
| TLD134-12 | 12 | 134 | 341 | 13.4 | 173 | 6.81 | 283 | 11.1 | 288 | 11.3 | 40.0 | 88.2 | F12 |
| TLD150-12 | 12 | 150 | 482 | 19 | 170 | 6.69 | 242 | 9.53 | 242 | 9.53 | 44.5 | 98.1 | F12 |
| TLD180-12 | 12 | 180 | 522 | 20.6 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 55.5 | 122.3 | F12 |
| TLD200-12 | 12 | 200 | 522 | 20.6 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 60.0 | 132.2 | F12 |
| TLD225-12 | 12 | 225 | 522 | 20.6 | 238 | 9.37 | 218 | 8.58 | 222 | 8.74 | 63.0 | 138.9 | F12 |
| TLD250-12 | 12 | 250 | 520 | 20.5 | 269 | 10.6 | 220 | 8.6 | 224 | 8.82 | 69.5 | 153.2 | F12 |
Shenzhen Telong Energy Technology Co., Ltd was founded in 2005, Specialized in researching, developing, producing and sales of lead acid battery, lithium battery and Gel battery.
Telong is a leading battery producer in the Chinese market as a deep cycle battery supplier for electric bicycles, distributed primarily under the Telong brand. With over ten years of experience and extensive technical expertise in the lead-acid battery industry, Telong's dedication to research and development is evident in increasingly widespread recognition of Telong goods offering consistent quality in high capacity, high energy density, deep discharge, more cycles with sustained discharge time, and more operational stability.
Telong has mainly produce the following series - CR\ER\PL\DZM\TL\TEL\GEL\TLD\TLF\OPZV\OPZS including 500 kinds of products. These products are widely used by many different industries, such as telecommunication, power system, radio and television system, railway, solar, UPS, electric vehicles, cars, golf cars, forklifts, emergency lights, security, alarm, gardening tool, baby carrier etc. Its worldwide sales network already covers more than 100 countries and regions, and has a good cooperation partnership with several excellent operators.
In an endless pursuit of perfection, Telong continues to blaze new trails in quality battery production. For quality control, Telong established professional Quality Management Center and successfully got the certificates of ISO9001, TS16949 quality management system and ISO14001 environment management system and also has passed the audit of OHSAS18001. The products has been authorized as 'Good quality products and Inspection-free in China' by national quality inspection department. Telong Products have also obtained the CE and RoHS authentication of the European Union, UL recognition the USA, Our reputation is built on the promise that ethical behavior and fair business practices will result in a satisfied and growing customer base. Telong prides itself by delivering its promises in a timely and efficient manner. We listen attentively to our customers, and are constantly reviewing our business practices and procedures in order to make changes that will benefit our customers.
