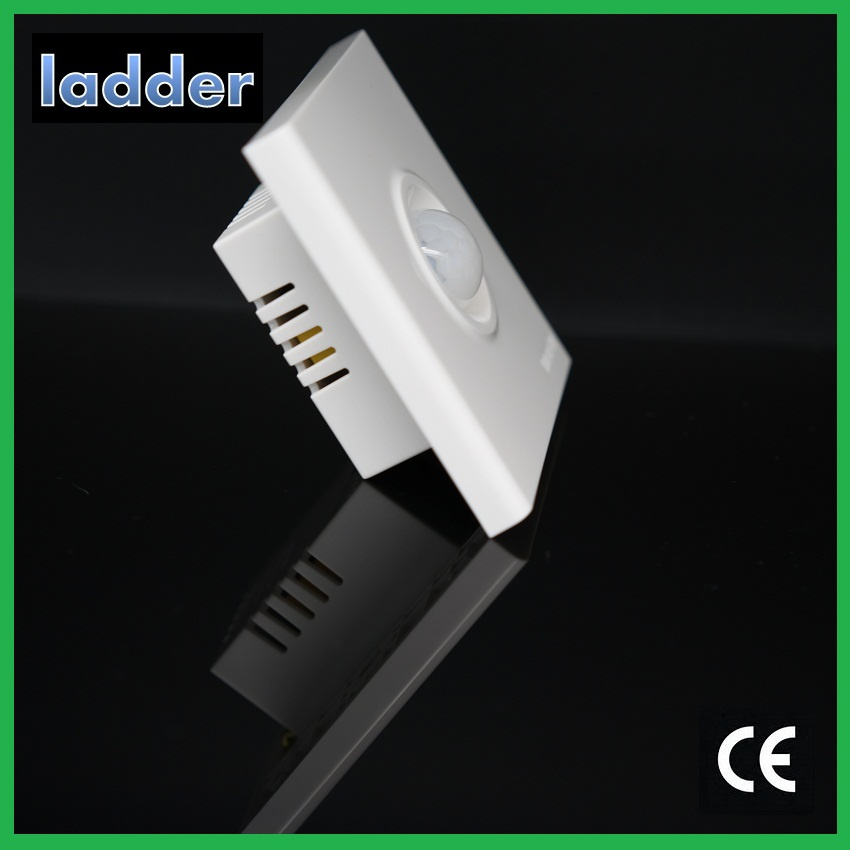

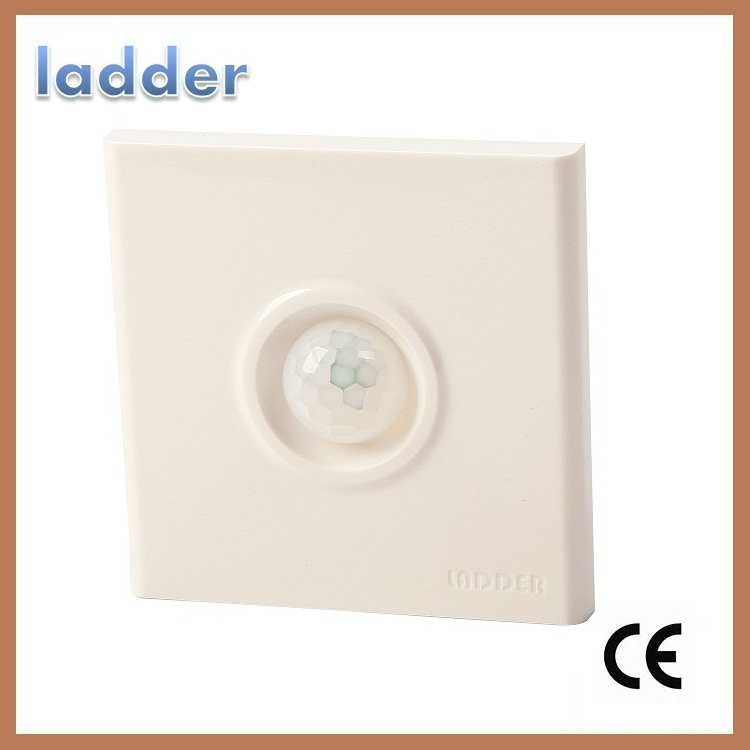

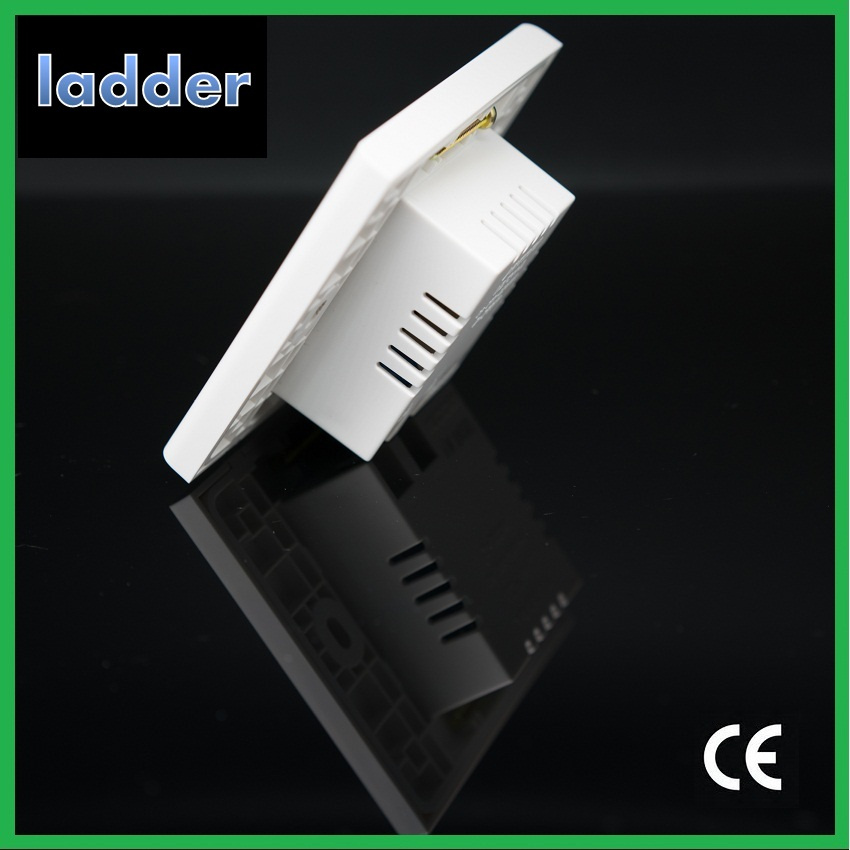

86 Type Human Infrared Sensor Auto Switch on Wall

Name: 86 Type Human Infrared Sensor Auto Switch on Wall
Brand: all-electronics-online.com
SKU: 723932692
Availability: InStock
Rating: 4.9 (31 reviews)

Price:	US $ 2.2-2.5/Piece
Min Order:	100/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

It is an automatic control product based on infrared technology. When human enters the switch induction range, special sensor detects infrared ray changes of human. The switch turns off automatically and loads supply power. When human moves in the induction range, the switch turns on continuously. After human leaves, the switch disconnects in delay and loads black out.
It can e applied in automatic illumination in indoor furniture, corridors, passageways and garages, etc.

Technical parameters

Work power: 110-250VAC 50HZ/60Hz
Loads and power:
Filament lamp power: ≤200W/220VAC
Motor(inductance) power: ≤100W/220VAC
Static power: ≤0.02W

Detection zone:
Detection range: 3-10 m adjustment
Detection angle: 110ºC(Horizontal direction)
Delayed close time: 2s-30min adjustment
Inductive environmental light strength: 5-3000LUX adjustment
Working temperature: -20ºC-+45ºC
Installation height: 1.0-1.5m

Detection range:
The closer distance is, the larger angle will have.The middle position has the strongest induction.
Top view :110°
Detection range is about 10m

Settings
1. Time: Delayed time can adjust 2-30sec. You can adjust it a little bit every time. otherwise, long-time delay will mistake that it can't turn off.
2. Distance: Selective installation, continuous adjustment 1-10m
3. Light sensation: clockwise adjustment; work at night

Warning:
Voltage 110-220VAC; non-professionals are not allowed to install and maintain.

Prod Model:	LDFSM-D
Type:	Infrared Sensor Switch
Principle:	Infrared
Wires:	Two-Wires
Standard:	Standard
Size:	86 Type
Certification:	CE
Application:	All

LADDER ELECTRONICS Co., Ltd. is a high-tech Electronics Company, which was established in 2002. We have excellent teams - most managers have over ten years' experience in SAW field or other electronics fields. All employees have been well trained- over 26% are technical workers and over 10% are engineers.

The company has wide long-term cooperation with universities and colleges, such as Zhejiang University, Nanjing University, Zhejiang University of Technology, Sichuan University, etc. The company also introduced learned scholars team from Germany. There are three main independent design and manufacturing products, including infrared sensor module, intelligent lamp and infrared switch.

1. LED infrared sensor night lamp, infrared sensor switch.

2. Intelligent sensor model, Nano organic ferroelectric infrared detector, infrared control module and Infrared sensor array module.

3. SAW components: Manufacturing Surface Acoustic Wave (SAW) components.

Idea

Location

Quality Guarantee

Our management theory on "people first, sincere to respect ". We hold the concept of "depending on the advanced craft and scientific management, being customer-focused, continuous improving every link, founding the quality brand in the SAW field". Support from customs is the greatest impetus for us.

We are confident to satisfy our customers with our quality products at competitive prices, best services, and prompt delivery.

The unique pattern of LADDER is the registered trademark for our products.
