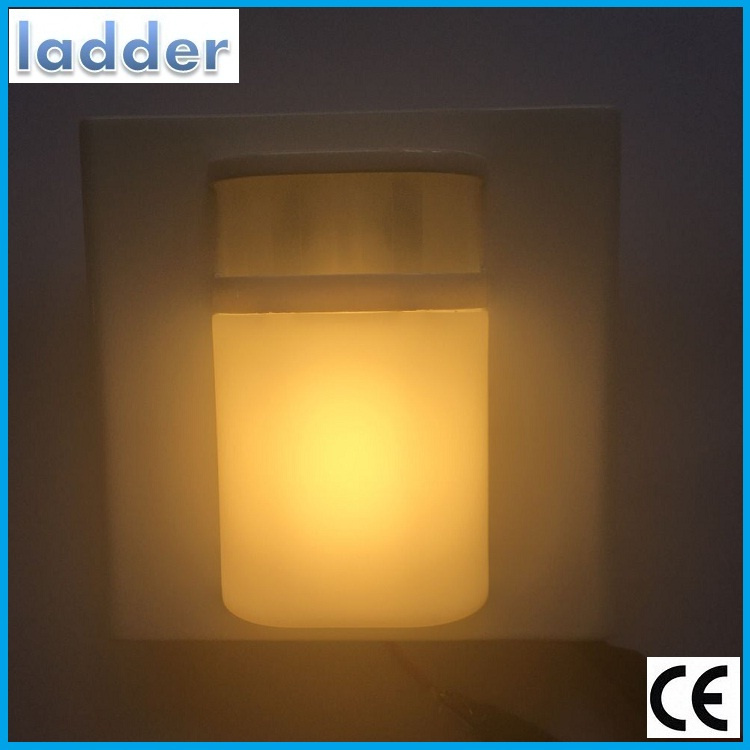

Wide-Angle Sensor Foot Light for Hospital or School

Name: Wide-Angle Sensor Foot Light for Hospital or School
Brand: all-electronics-online.com
SKU: 826987045
Availability: InStock
Rating: 4.5 (146 reviews)

Price:	Negotiable/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

It is an automatic control product based on infrared technology. When the human body enters into the switch induction range, the sensor detects the optical changes of human infrared light to output control signals and light on led. The human body moves in the induction range. The LED lights on continuously. After the human body leaves, the lamp delays 30s to turn off automatical

Range applicable
suitable for automatic illumination in indoor corridors, passageways, warehouses and garages.
suitable for standard surface mounted or bottom case
Technical parameters
Technical parameters

1. Working power: 85-250VAC 50/60Hz

2. Rated power: 0.3W/2W(customized)

3. Static power consumption: ≤0.05W

4. Luminous flux: 20/350LM±10%

5. Color temperature: warm light 2800K/white light 6000K

6. Induction range: 12M*6M(25ºC)

7. Induction angle: 180°

8. Light sensation threshold value: 5lux(night), customized

9. Delay time: 30s(2s-20min customized)

10. Installation height: 0.4-1.5M

Parameter statement

1. Time
Conventional setting of delay time 30S

Customized range: 2S-20min

2. Detection range

12M*6M at 25ºC

The large difference under the different environment temperature

3. Environmental light detection:

Default: night

Customized work at daytime

4. Led light source

0.3/2w optional

Detection range

ZL:201720900156.4

Prod Model:	LD86-3
Type:	PIR Sensor Light
Theory:	Infrared Control
Light Source:	LED
Lamp Type:	Wall Lamp
Emitting Color:	Warm White
Material:	ABS
Appliances:	Corridor
Lamp Power:	≤5W
Waterproof:	Not Waterproof
Certification:	CE
