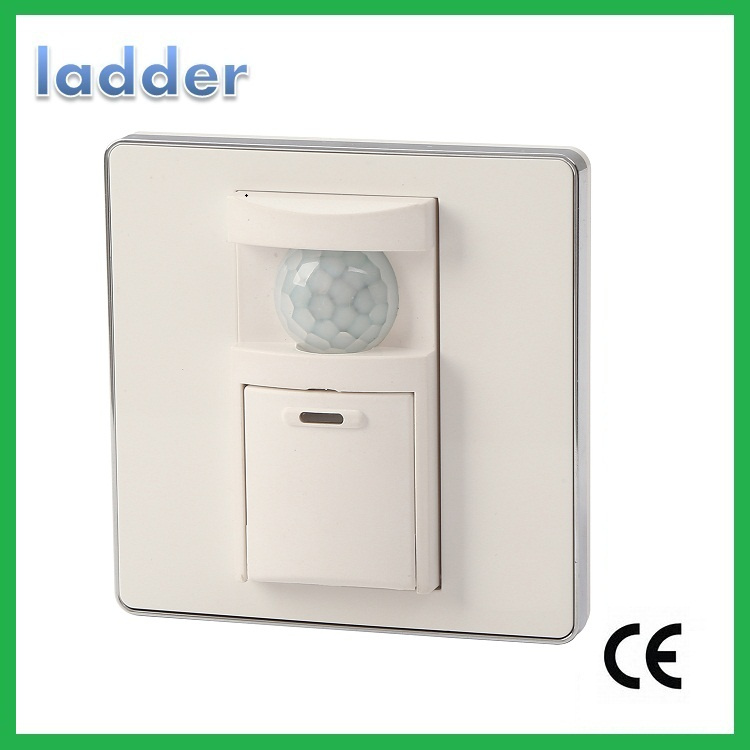

PIR Electric Infrared Sensor Wall Switch for Lights (LDFSM-A)

Name: PIR Electric Infrared Sensor Wall Switch for Lights (LDFSM-A)
Brand: all-electronics-online.com
SKU: 817572085
Availability: InStock
Rating: 4.9 (27 reviews)

Price:	US $ 12.5-13.5/Piece
Min Order:	1000/Piece
Pay Type:	T/T,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Product Description
1.Detectable ScopeThe larger the angle, the shorter the detectable distance
The most sensitive point is at the center.
Top View
Installation Point
2m, 4m, 6m, 10m, 110 degree
Installation Point
Side View
About 10m of detectable distance
2. Electrical Parameters
2.1 Working power: 110-250V / AC 50Hz / 60Hz
2.2 Load and power:
Incandescent lamp (resistance) load: power: ≤ 1000W / 220V / AC
Motor (inductance) load: power: ≤ 800W / 220V / AC
2.3 Detectable Distance: between 3-10 meters (at room temperature)
Detection Scope: within 110 degrees (when spanning along a horizontal plane)
2.4 shutdown delays: adjustable from 2s through 30min

2.5 Sensible light intensity: 5-5000LUX, adjustable
2.6 Allowed environment temperature: 0 ºC ~ +45 ºC
2.7 Recommended height for installation: 1.0-1.5 m
Selection of Panels
Type 86 Panel
Type 120 Panel

Manually powered on
Functions:

The switch is constantly on.
The buzzer will prompt with one sound of "beep".
Ambient light perceptibility: no
Infrared signal perceptibility: no
Indicator: Constantly on
Auto switch: on

(Press No. 4 of the settings, the device will be switched back to auto mode after 2 or 4 hours)
Manually powered off
Functions:

The switch is constantly off.
The buzzer will prompt with one sound of "beep"
Ambient light perceptibility: No
Infrared signal perceptibility: No
Indicator: Off( not lighting)
Auto switch: on

(Press No. 4 of the settings, and the device will be switched back to auto mode after 2 or 4 hours)
Switch back to auto mode:
Functions:

The buzzer will prompt with two sounds of "beep"
Ambient light perceptibility: Yes (Press No.3 of the settings)
Infrared Signal perceptibility: Yes (Press No.2 of the settings)
Shutdown delay: YES (Press No.1 of the settings)

Indicator: On (as long as there are detectable signals)

Prod Model:	LDFSM-A
Working Power:	110-250V
Allowed Environment Temperature:	0 ºC ~ +45 ºC
Type:	Infrared Sensor Switch
Principle:	Infrared
Standard:	Standard
Application:	Warehouse
Size:	86 Type
Certification:	CE
Wires:	Three-Wires
