| Prod Model: |
HP9117C 0.7-3KVA |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Product Name: |
High Frequency Online UPS |
| Capacity: |
0.7-3kVA |
| Elevation: |
< 1500 Meter |
| Storage Temperature: |
-25 O C~55o C |
| Temperature: |
0~40o C |
| Recharge Time: |
7 Hours to 90% |
| Current Crest Ratio: |
3: 1 |
| Power Factor: |
> 0.98 |
| Voltagerange: |
60-138VAC or 115-276VAC |
| Nominal Frequency: |
50/60 Hz |
| Phase: |
Single Phase |
| Type: |
On-line |
| Protection: |
Overvoltage |
| Brand: |
Sorotec |

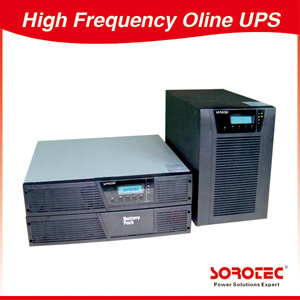

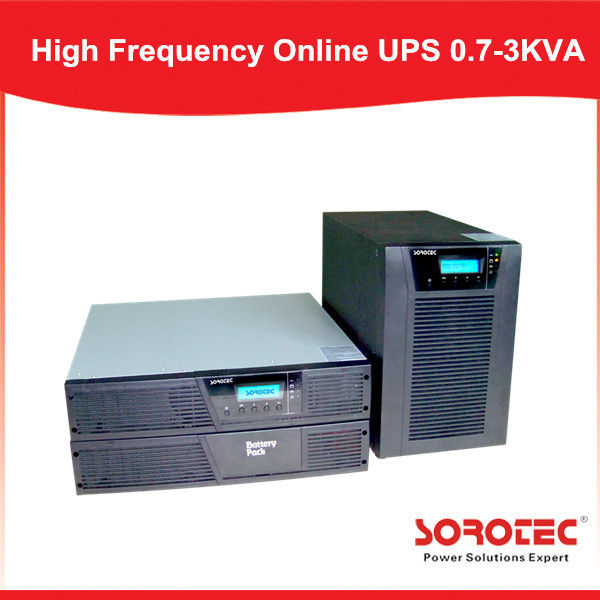

Product Description
0.9 output power factor Online UPS HP9117C 1-3KVA for HomeProduct Parameter:Output power factor: 0.9
Product Rating: 1000 to 3000VA
Voltage: 100-120V or 220-240V
Frequency: 50/60Hz(auto-sensing)
Configuration: Rack mount or Tower
Key Features:1. Protects against downtime, data loss and process interruption by providing continuous, clean power
2. Offers premium performance with a 0.9 power factor and >95 percent efficiency
3. Increases battery service life and system uptime with ABM battery charging technology
4. Enables prolonged runtime of essential equipment during power outages by allowing for orderly, remote shutdown of non-critical system or processes
5. Provides installation flexibility with a choice of rack or tower designs, both conserving valuable space.
6. Enhanced monitoring and configuration capability through easily navigated multilingual graphical display
7. RS232, USB/ EPO(Remote Emergency Power -off) etc.
8. Optional language by LCD display(multilingual: English, Russian, German, French, Spanish)
Application:
IT and network environment, servers and network devices, telecom, VoIP and security systems, medical systems, diagnosis and medical screening system, Patient record archives, Manufacturing systems, Chip fabrication, Pharmaceutical production, Chemical processing
Technical Specifications of Uninterrupted Power Supply HP9117C 1-3kVA| Model | HP9117 1-3KT/1-3KR |
| 1KT/1KR | 1KT-XL/1KR-XL | 2KT/2KR | 2KT-XL/2KR-XL | 3KT/3KR | 3KT-XL/3KR-XL |
| Capacity | 1KVA/900 W | 2KVA/1800 W | 3KVA/2700 W |
| Nominal Voltage | 100/110/120/127VAC or 200/208/220/230/240VAC |
| Nominal Frequency | 50/60 Hz |
| Input |
| VoltageRange | 60-138VAC or 115-276VAC |
| FrequencyRange | 50HZ: (46~54HZ); 60HZ: (56HZ~64HZ) |
| Power Factor | > 0.98 |
| Output |
| Voltage precision | 100/110/120/127VAC(± 2%) or 200/208/220/230/240VAC(± 2%) |
| Frequency precision | 50Hz/60Hz± 0.05Hz |
| Power Factor | 0.9 |
| Harmonic Distortion | Linear Load< 3% Non-Linear Load< 5% |
| Overload capacity | overload(110%~150%)after 30 seconds automatically transfer to bypass, it recover after normal load |
| Current Crest Ratio | 3: 1 |
| Transfer time | 0ms(AC→ DC) |
| Battery |
| DC voltage | 36VDC | 96VDC | 96VDC |
| Recharge time | 7 hours to 90% |
| Charge Current | 1A | 4A/8A (option) | 1A | 4A/8A(option) | 1A | 4A/8A(option) |
| Panel Display |
| LCD | UPS status, input/output voltage frequency, battery voltage, capacity, load, temperature, history records |
| Language | English, French, German, Russian, Spanish |
| Communicate |
| Communicate interface | Optional: SNMP card, AS400 card or the CMC provide software, EPO (USB port) |
| Working Environment |
| Temperature | 0~40º C |
| Relative humidity | 0~95% non-condensing |
| Storage Temperature | -25 º C~55º C |
| Elevation | < 1500 meter |
| Noise Level( 1meter) | < 45dB | < 45dB | < 50dB |
| Physics Characteristic |
| Net weigh(Kg) | 15 | 16 | 8.5 | 9 | 33 | 10.5 | 16.5 | 11.5 | 34 | 11.5 | 17 | 12.5 |
| Gross weight (Kg) | 17.5 | 17.5 | 11 | 11.5 | 35 | 12.5 | 18.5 | 13.5 | 36 | 13.5 | 19 | 14.5 |
| Dimension (WXDXH) |
| Main unit(Tower) | 200X400X145 | 340X460X192 | 340X460X192 |
| Main unit (Rack mount) | 438X415X80 | 455X440 X90 |
