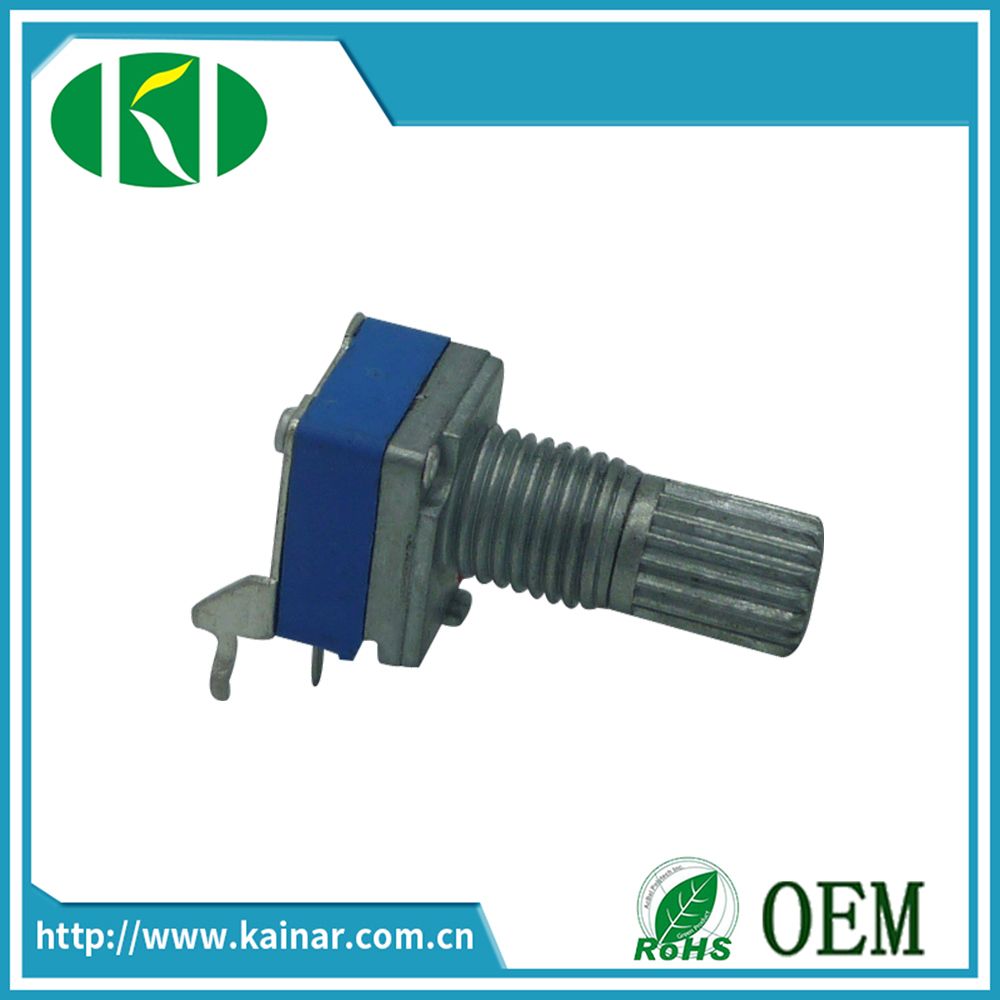

9mm Mono Rotary Potentiometer with Bracket Wh9011A-1-Sj

Name: 9mm Mono Rotary Potentiometer with Bracket Wh9011A-1-Sj
Brand: all-electronics-online.com
SKU: 815369675
Availability: InStock
Rating: 5 (81 reviews)

Price:	US $ 0.28-0.36/Piece
Min Order:	500/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	WH9011A-1-SJ
Resistance Range:	5-250kohm
Rated Voltage:	50V AC
Power Rating:	0.05W
Switch Life:	10000turn Min
Total Rotation Angle:	300±5º
Operating Force:	50-250GF.Cm
Rotational Noise:	≤68mv
Shaft Stopper Strength:	4kgf.Cm Min
Click Position:	0/1/21/32/40 Detent
Termlnal Resistance:	10ohm Max
Package Type:	Carton

Product Description

ELECTRICAL CHARACTERISTICS

Item	Item	Specification
1.1	Resistance value and tolerance of resistance	K±20%
1.2	Load power	0.1 W
1.3	Rotational noise	47mV max
1.4	Insulation Resistance	>100MΩ At 200V DC
1.5	Withstanding Voltage	>1Minute At 250V AC
1.6	Max rated voltage	50V AC
1.7	Tracking error
1.8	Residual resistance	R1,2<10Ω; R2,3<10Ω

MECHANICAL CHARACTERISTICS

2.1	Dimensions	Refer to the separate product drawing
2.2	Total rotation angle	300±5°
2.3	Effective electrical angle
2.4	Rotational torque	10~50gf.cm
2.5	Shaft Push pull Strength	≥8kgf
2.6	Click slip-out force
2.7	Shaft wobble (mm p-p)	≤0.3mm
2.8	Shaft stop Strength	>5kg.cm
2.9	Shaft wobble (mm p-p)	≤0.3mm
2.10	Rotating life	10,000 cycles

DURABILITY CHARACTERISTICS

3.1	Storage Temperature Range	-30ºC~+80ºC
3.2	Operation Temperature Range	-20ºC~+70ºC
3.3	Soldering Heat Characteristic	260°C/2.5±0.5S

Related Products

Changzhou Kainar Electronic Co., Ltd is an export-typed enterprise in China, Specializing in manufacturing various kinds of potentiometers. Since 1992 our factory was established, it has been well managed and developed continuously. Now we own the advanced production equipments and the excellent production teams.

Our main products are potentiometers, encoders, switch and knobs. We apply automated production, now we hold nearly 80 employees. Our products are more than 20 series, 300 different specifications, the annual output is more than 35 million pieces.

Our products measure up the RoHS environment requirement. We manage the quality adopted ISO9001: 2000 standard.

Our products are mainly exported to Korea, Pakistan, Poland, Switzerland, Italy, Germany, Russia etc. We enjoy the high reputation in abroad.

Continuously innovation is the motive for the development of an enterprise, so we are looking forward to your all kinds of co-operation.

Our products can be used for home appliance, communication, lampls and lanterns, medical equipment, automobile, toys, stage audio, instrument.
