(A-C1NT Series) Open Loop Mode Hall Effect Current Transmitter Sensor

Name: (A-C1NT Series) Open Loop Mode Hall Effect Current Transmitter Sensor
Brand: all-electronics-online.com
SKU: 752584885
Availability: InStock
Rating: 4.5 (52 reviews)

Price:	US $ 12.21-14.1/Piece
Trade Terms:	FOB,CFR,CIF
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	A-C1NT
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Model:	a-C1nt Series Current Transmitter
Supply Voltage:	+24V
Power Consumption:	+35+ Io Ma
Zero Current:	@IP=0 4+-0.1 Ma
Offset Drift:	@ -40~+85c <+-0.005mA/C
Linearity:	Less Than 0.1
Bandwidth:	@ -1db 0~150kHz

Product Description

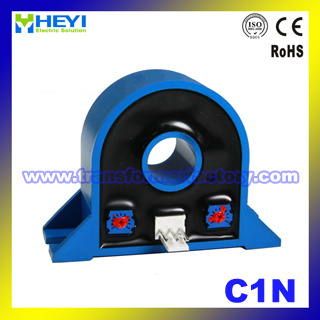

A-C1NT series hall effect current Transmitter is an open loop device based on the measuring principle of the hall effect, with a galvanic isolation between primary and secondary circuit. It provides accurate electronic measurement of AC or pulsed currents.

Electrical data (Ta=25ºC±5ºC)

Type	A-C1NT- 5A	A-C1NT- 10A	A-C1NT- 20A	A-C1NT- 25A	A-C1NT- 50A	Unit
Rated current(Ipn AC)	5	10	20	25	50	A
Measure range(Ip AC)	0-10	0-20	0-30	0-37.5	0-75	A
Rated output	@Ip=±Ipn AC 4~20±1%					mA
Supply voltage	+24V					V
Power Consumption	+35+ Io					mA
Zero current	@Ip=0 4±0.1					mA
Offset drift	@ -40~+85ºC ≤±0.005					mA /ºC
Output drift	@ -40~+85ºC ≤±0.005					mA /ºC
Linearity	@Ip=0-±Ipn ≤1					%FS
Response time	≤200					ms
Galvanic isolation	@ 50HZ,AC,1min 2.5					KV
Bandwidth	20~20000					HZ

Applications

·Variable speed drives
·Welding machine
·Battery supplied applications
·Uninterruptible Power Supplies (UPS)
·Electrochemical

Remarks:
1. All dimensions are in mm.
2. General tolerance ±1mm.
3. Elucidation: 1:+24V 2: 0V 3:I0UT

Directions for use

1. When the current will be measured goes through a Transmitter, the current will be measured at the output end.(Note: The false wiring may result in the damage of the Transmitter)
2. The output amplitude of the transmitter can be adjusted according to users' requirements.
3.Custom design in the different rated input current and the output current are Transmitter.

Standards

·UL94-V0.
·EN60947-1:2004
·IEC60950-1:2001
·EN50178:1998
·SJ 20790-2000

General date

	Value	Unit
Operating temperature(TA)	-40 to +85	ºC
Storage temperature (TS)	-40 to +125	ºC
Mass(approx) (M)	53	g
