AC 220V 50Hz 600kg Electric Rolling Shutter Door Motor
Rolling Door Motor Specifications:
1)Max Upgrade Weight:600KG
2)Max Upgrade Height:6M
3)Rated Current:3.5A
4)Output Torque:412 N.m
5)Rotation Speed:5.2 r/min
6)Chain Number:10A
Data sheet for Rolling Shutter Door Motor
Model No. | Max Upgrade Weight
(KG) | Max Upgrade Height
(M) | Output Power
(W) | Current Rating
(A) | Output Torque (N.m) | Rotation
(r/min) | Chain NO. |
| 220V 50Hz (230V 60Hz) |
| YZ-300-1P | 300 | 4.5 | 250 | 2.5 | 168 | 4.0 | 08B |
| YZ-500-1P | 500 | 6 | 370 | 3.5 | 345 | 5.9 | 10A |
| YZ-600-1P | 600 | 6 | 370 | 3.5 | 412 | 5.2 | 10A |
| YZ-800-1P | 800 | 6 | 400 | 1.3 | 650 | 4.8 | 10A |
| 380V 50Hz (380V 60Hz) |
| YZ-800-3P | 800 | 6 | 370 | 1.3 | 650 | 4.8 | 10A |
| YZ-1000-3P | 1000 | 10 | 400 | 1.5 | 810 | 4.2 | 12A |
| YZ-1300-3P | 1300 | 10 | 600 | 2.0 | 1050 | 4.2 | 12A |
| YZ-1500-3P | 1500 | 10 | 800 | 2.5 | 1220 | 3.8 | 12A |
| YZ-2000-3P | 2000 | 10 | 1200 | 4.5 | 2450 | 3.6 | 12A |
Rolling Shutter Motor Working environment and conditions:
1) Voltage and frequency is in line with the product nameplate.
2) Short-time work system, continuous working not exceeding 5 mins.
3) Roller Door Motor are using 220V or 380V AC power supply;
4) Can be matched with manually lock button and security locking;
Shutter Door Motor Functions:
1) Shell: Aluminium alloy, solid and light;
2) Remote control: long-distance operation;
2) It is convenient to manual operation when power failed;
3) Thermal protection device could protect rolling door from damage and motor burned;
4) Operations are stable, low noise, small vibration.
Application of Door Motors:
Widely used in shopping malls, hotels, warehouses, garages, banks, shops, factories and other buildings' rolling door opening and closing. It is an ideal accessory products of modern architecture.

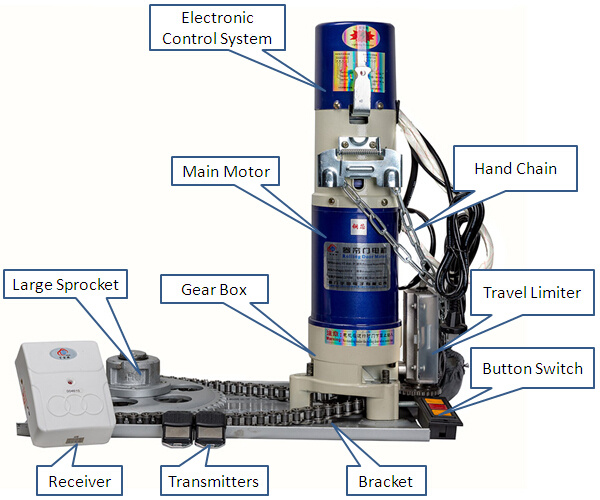

The Main Structure of Rolling Door Motor:

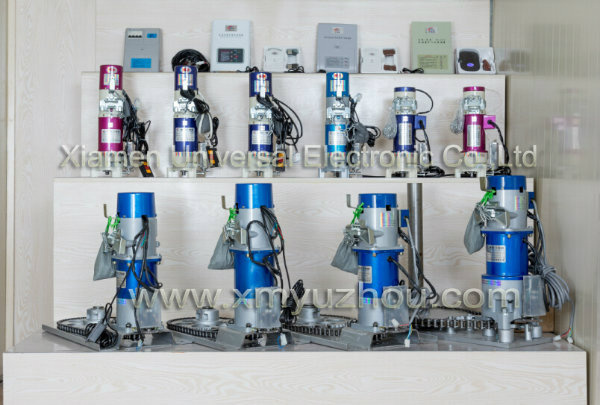

Door Motors Show:
Rolling Shutter Motor Installation Layout:
