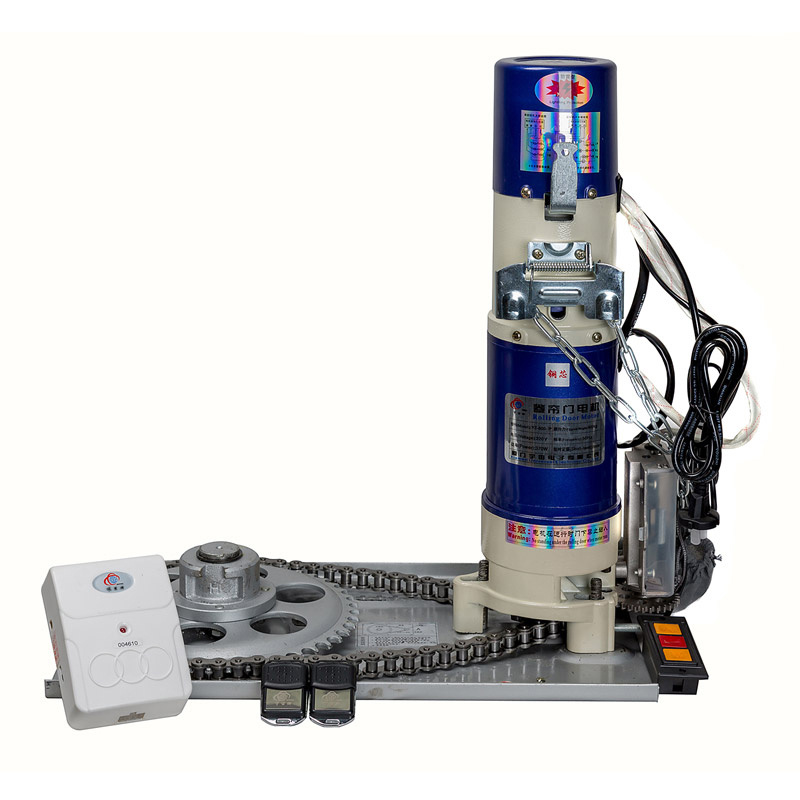

Automatic Industrial Roll Up AC Shutter Door Motor YZ-600kg-1P
Shutter Door Motor Parameters:
1)Max Upgrade Weight: 600KG
2)Max Upgrade Height: 6M
3)Rated Current: 3.5A
4)Output Torque: 412 N. M
5)Rotation Speed: 5.2 r/min
6)Chain Number: 10A
Shutter Door Motor Accessories:
Shutter Door Motor Working environment and conditions:
1) Voltage and frequency is in line with the product nameplate.
2) Short-time work system, continuous working not exceeding 5 mins.
3) Roller Door Motor are using 220V or 380V AC power supply;
4) Can be matched with manually lock button and security locking;
Shutter Door Motor Specifications:| Model No. | Max
Upgrade
Weight
(KG) | Max
Upgrade
Height
(M) | Power
(W) | Current
Rating
(A) | Output
Torque
(N.m) | Rotation
(r/min) | Chain
NO. |
| 220V 50Hz (230V 60Hz) |
| YZ-300-1P | 300 | 4.5 | 180 | 2.2 | 168 | 3.8 | 08B |
| YZ-500-1P | 500 | 6 | 370 | 3.5 | 345 | 5.9 | 10A |
| YZ-600-1P | 600 | 6 | 370 | 3.5 | 412 | 5.2 | 10A |
| YZ-800-1P | 800 | 6 | 400 | 4.2 | 650 | 4.8 | 10A |
| YZ-1000-1P | 1000 | 10 | 800 | 5.8 | 810 | 4.2 | 10A |
| 380V 50Hz (380V 60Hz) |
| YZ-800-3P | 800 | 6 | 370 | 1.3 | 650 | 4.8 | 10A |
| YZ-1000-3P | 1000 | 10 | 400 | 1.5 | 810 | 4.2 | 12A |
| YZ-1300-3P | 1300 | 10 | 800 | 2 | 1050 | 4.2 | 12A |
| YZ-1500-3P | 1500 | 10 | 800 | 2.5 | 1220 | 3.8 | 12A |
Shutter Door Motor Functions:
1) Shell: Aluminium alloy, solid and light;
2) Remote control: Long-distance operation;
2) It is convenient to manual operation when power failed;
3) Thermal protection device could protect rolling door from damage and motor burned;
4) Operations are stable, low noise, small vibration.
Shutter Door Motor Application:
Widely used in shopping malls, hotels, warehouses, garages, banks, shops, factories and other buildings' rolling door opening and closing. It is an ideal accessory products of modern architecture.
