| Theory: |
Chain Operating Roller Shutter Motor |
| Power Supply: |
220V 50Hz |
| Max Lifting Force: |
600kg |
| Max Hoist Height: |
6m |
| Number Of Stator: |
Single-Phase |
| Function: |
Control |
| Number Of Poles: |
1 |
| Brand: |
Universal |
Product Description

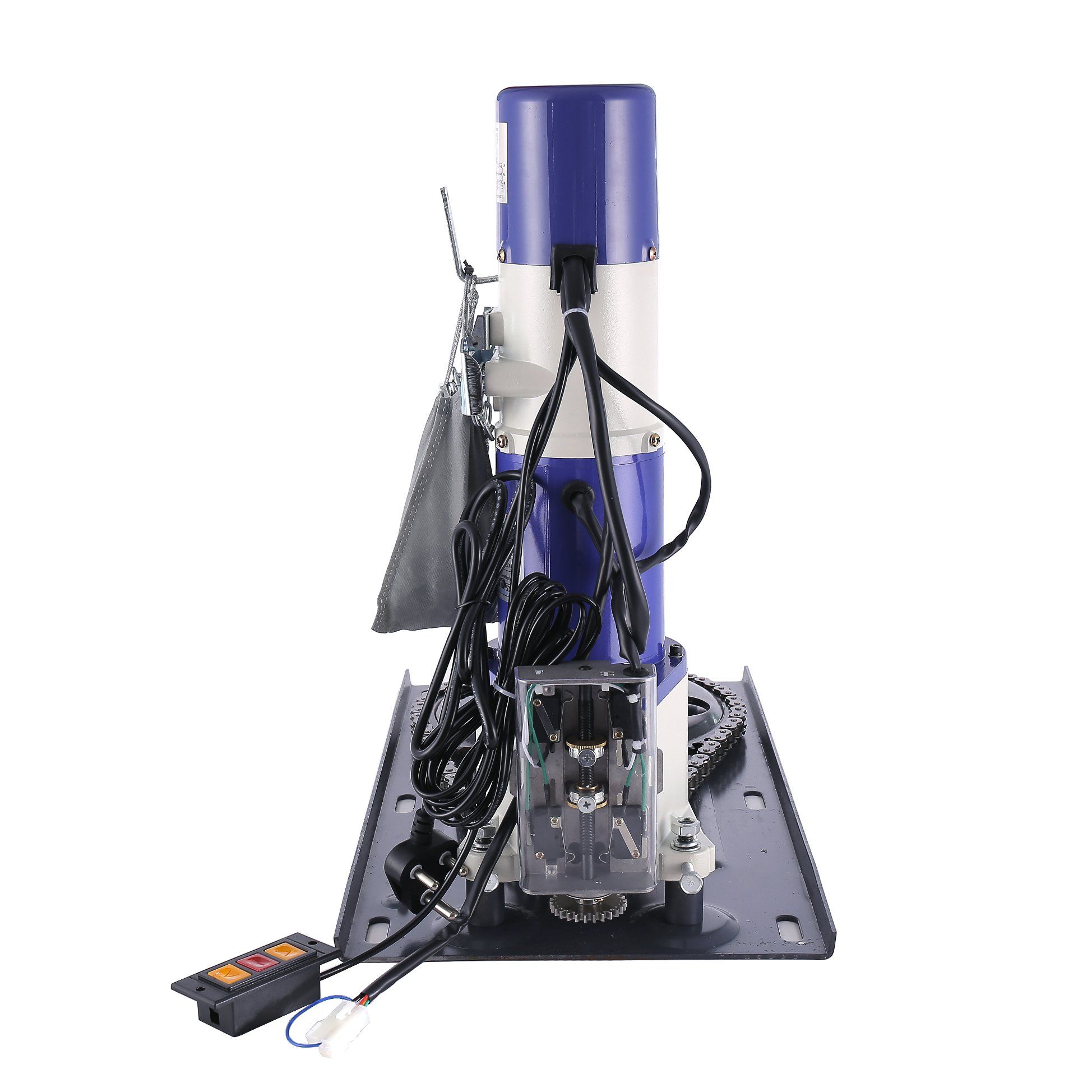

Chain Operating Roller Shutter Motor Specifications:
1)Max Upgrade Weight: 600KG
2)Max Upgrade Height: 6M
3)Rated Current: 3.5A
4)Output Torque: 412 N. M
5)Rotation Speed: 5.2 r/min
6)Chain Number: 10A
Working environment and conditions:
1) Voltage and frequency is in line with the product nameplate.
2) Short-time work system, continuous working not exceeding 5 mins.
3) Roller Door Motor are using 220V or 380V AC power supply;
4) Can be matched with manually lock button and security locking;
Motor Functions:
1) Shell: Aluminium alloy, solid and light;
2) Remote control: Long-distance operation;
2) It is convenient to manual operation when power failed;
3) Thermal protection device could protect rolling door from damage and motor burned;
4) Operations are stable, low noise, small vibration.
Application of Motors:
Widely used in shopping malls, hotels, warehouses, garages, banks, shops, factories and other buildings' rolling door opening and closing. It is an ideal accessory products of modern architecture.
Why Choose Us?
Xiamen Universal Electronic Co., Ltd, with our strong R&D capabilities and strict product quality control, our Motors have been well received and have been gaining popularity both at home and overseas. All products passed numerous insulation tests in heat, sound and wind, which meet the recent trend of energy saving. Our good reputation in innovation and quality has brought in numerous exporting business and inland trade. If you have any interest in our motors, please browse our website for further imformation or contact us immediately.
Our Service:
Any inquiry/question will be reply in 24 hours during working days.
Sample order: Available, the customers should charge the sample fee and freight cost.
OEM for customers is available.
Delivery time: 2-4 weeks after order confirmation.
Terms of Payment: T/T, Paypal, Western Union, etc.
Warranty: 2 Years
Accessory size chosing: 4 inches, 5 inches, 6 inches
Packing: Carton packed fill with foam;
One set in 2 cartons: 1CTN for main motor, 1 CTN for accessories
Terms of Shipping:
By Express: FedEx/DHL/UPS/TNT/EMS, etc.
Air/Sea Freight: Goods will be delivered by air or sea according to customer's order.
Agent designated by client: Please tell us the contact detail of your shipping agent and we will arrange the delivery.
Contact Person
Amy Wu
Xiamen Universal Electronic Co., Ltd
No. 318. South Tongji Road, Jimei District, Xiamen City, Fujian, China
Mobile: 86-15606008788
Tel: 86-592-5782488
Fax: 86-592-5664223
Model No. | Max
Upgrade Weight
(KG) | Max
Upgrade Height
(M) | Output Power
(W) | Current Rating
(A) | Output
Torque (N.m) | Rotation
(r/min) | Chain NO. |
| 220V 50Hz (230V 60Hz) |
| YZ-300-1P | 300 | 4.5 | 250 | 2.5 | 168 | 4.0 | 08B |
| YZ-500-1P | 500 | 6 | 370 | 3.5 | 345 | 5.9 | 10A |
| YZ-600-1P | 600 | 6 | 370 | 3.5 | 412 | 5.2 | 10A |
| YZ-800-1P | 800 | 6 | 400 | 1.3 | 650 | 4.8 | 10A |
| 380V 50Hz (380V 60Hz) |
| YZ-800-3P | 800 | 6 | 370 | 1.3 | 650 | 4.8 | 10A |
| YZ-1000-3P | 1000 | 10 | 400 | 1.5 | 810 | 4.2 | 12A |
| YZ-1300-3P | 1300 | 10 | 600 | 2.0 | 1050 | 4.2 | 12A |
| YZ-1500-3P | 1500 | 10 | 800 | 2.5 | 1220 | 3.8 | 12A |
| YZ-2000-3P | 2000 | 10 | 1200 | 4.5 | 2450 | 3.6 | 12A |
