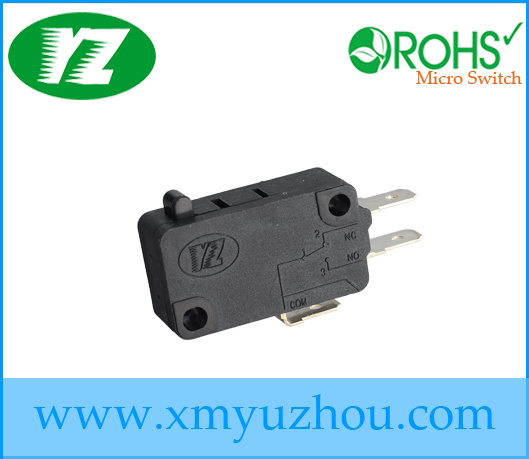

Electronic 16A Micro SwitchProduct Model: V-16-1ACType : Shrapnel-type Structure
Specifications:
*Actuator forms: no Lever
*Ratings: 4(16)A / 250(125)VAC *Connect forms: SPDT *Terminal types: 4.8*0.5 mm *Operating force: 1N-3N(100gf-300gf)*Ambient air temperature: 125°CCharacteristics and usage*Safe reliable basic switch
*Long life,high reliability, sensitive.
*Variety of levers and contact terminals.
*A variety of models with low operating force to high force are sensitivity.*Nice appearance,tight configuration,characteristic,quick action and high sensitivity.
-Widely used in microwave ovens, air conditions, electric cookers, dishwashers, cleaners, water heaters, electric drills, joysticks, TV games, time recorders, solder gun, mixer, food processor, juice maker, alarm,shredder machine,etc.
-High quality precision can satisfy most industries including automotive, white goods, security, vending and office automation and include standard types, low torque sealed switches and a number of industry specific models.
Micro Switches controls of "On and Off" action. Easy for people to manipulate the applications. We could offer you high quality switches. Just take one simple action, you can set up all your electronic equipment. All our switch are activated by leaver or button. If you need some special forms, please contact us for further information. We could make 16A Micro Switches to fit kinds of your max-needs.
Brief Introduction of Our Company:
Xiamen Universal Electronic Co., Ltd, is a professional company of switch control device and semiconductor component separator, shutter motors etc electrical appliance company. After years of efforts of all colleagues, the support of customers and suppliers, we now have the business department of the electronics switch and Integrated Department of Market Operation. The business department of the electronics switch is engaged in R & D and manufacturing of the medium and small electronic switches; The Integrated Department of Market Operation is responsible for the Integration Services of information gathering, selling, trading and so on. Our products cover a wide range, including micro switch, tact switch, push switch, metal dome switch, relay, low-voltage devices, rectifier bridge, ect. Those products are widely exported to more than 40 countries all over the world.
Micro Switch Structure:
Certificates:
Contact Information:
Name: James Yan
Mobile: +86 13388659290
Tel: 86-579-86878277
Thank you for visiting our website. If you have more questions, please connect us freely. We will answer you as soon as possible.
| Item | Value |
| Operating Speed | 0.1mm~1m/s(Related with actuator forms) |
| Operating Frequency | Mechanical 60 cycles/min;Electrical 30 cycles/min |
| Insulation Resistance | >=100 MΩ(500VDC) |
| Contact resistance | <=30mΩ(Initial value) |
Test Voltage | Between terminals of the same polarirty | AC1000V,50/60Hz,1min |
Between current-carrying metal
And ground(case),and between
Each terminal and non-carrying
metal parts |
AC3750V,50/60Hz,1min |
| Vibration resistance | 10-55Hz,1.5mm Double amplitude |
Shork Resistance | Destruction : OF>0.5N:1000m/s ²(approx.100G)max
OF<=0.5N:500m/s ²(approx.50G)max
Malfunction: OF>0.5N:300m/s ²(approx.30G)max
OF<=0.5N:200m/s ²(approx.20G)max |
| Life Expectancy | Mechnical>=5000000 cycles
Electrical>=50000 cycles |
| Degree of protection | IEC IP67 |
| Degree of protection against electric shock | Class I |
| PTI(Tracking Resistance) | 175 |
| Ambient air temperature | 125 degree 60%RH below(No ice and dew) |
| Ambient air humidity | 85% Rhbelow(about +5~+35 degree) |
| Weight | Approx.5.95g(No lever) |
Xiamen Universal Electronic Co., Ltd is a professional manufacturer of Rolling Door Motor, Tubular Motor, Micro Switch and semiconductor component separator, etc. After years of practical experience, efforts of all colleagues, the support of customers and suppliers, now we have Mechanical & Electrical Department, Electronic Components Department and Integrated Department of Market Operation. There are more than 40 series products, with over 500 kinds of specifications. Mechanical & Electrical products are widely used in shopping malls, hotels, warehouses, banks, factories and other buildings rolling door opening and closing; Electronic Components are mainly used in home appliances, industrial control, automotive electronics and other areas. We have done business with more than 40 countries all over the world and earned a good reputation.
Main products:
Rolling Door Motor, Roller Shutter Motor, Garage Door Motor, Rolling Shutter Motor, Automatic Door Opener, Tubular Motor, Micro Switch, Tip Over Switch, Tilt Switch, Safety Switch, Bridge Rectifier, etc.
Superior Service:
Being a professional manufacturer for many years, we always supply quality product at competitive prices with superior service. We keep the principle of "Quality First, Customers Supreme" and always try to meet customers' Requirements at any time. Any inquiries will be replied within 1 business day.
Quality Assurance:
We have QC department to make inspect every step of production, so we can make sure good quality products for customers.
Sample Order:
Sample order is available, normally, it takes about 7 days to make new samples.
Welcome to inquire from our company if you have any requirement. We are always positive and ready to offer excellent service.
