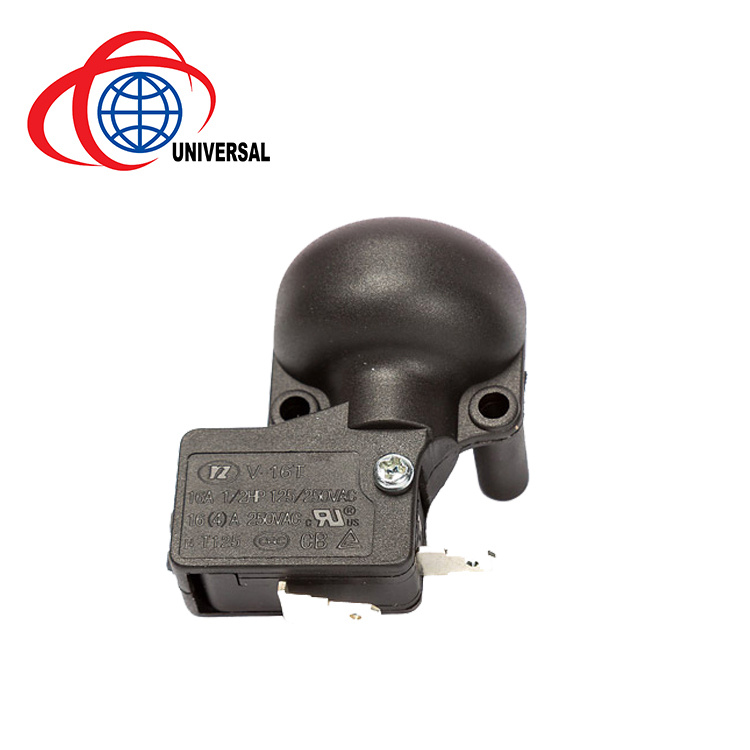

Tilt Switch for Electrical Heaters

Model: V-16TA

Features of Tilt Switch:
-Falll-Protect Switch
-Nice Appearance
-Reliable quality
-High sensitivity

Safty Switches Working Principle:

- As the main body is standing, Fall-protective switch's sphere with its gravity is on the lever of switch, so that Micro switch can work with load.

- When the main body is inclining, Fall-protective switch's sphere with its gravity will off the lever of switch and Micro switch can't work without load.

Xiamen Universal Electronic Co., Ltd
No. 318. South Tongji Road, Jimei District, Xiamen City, Fujian, China
Mobile: 86-15606003688
Tel: 86-592-5782488
Fax: 86-592-5664223

Item			Value
Fall-Protect			Action Angle:30-50°;Reset Angle:>15°;The Error of Action Angle:±5°
Operating Frequency			Mechanical 60 cycles/min;Electrical 6 cycles/min
Insulation Resistance			100 MΩ(500VDC)
Contact Resistance		Gold-plated	Below 15 mΩ
		No Gold-plated	30-40 mΩ
Test Voltage	Between terminals of the same polarirty		AC1000V,50/60Hz,1min
	Between current-carrying metal And ground(case),and between Each terminal and non-carrying metal parts		AC2000V,50/60Hz,1min
Vibration resistance			10-55Hz,1.5mm Double amplitude
Shork Resistance			Let switch fall freely from 200mm high into the cement flool or Armor plate horizontal. One time,one side(Up,dowm,left,right,front,back)
Life Expectancy			Mechnical>=5000000 cycles Electrical>=10000 cycles
Degree of protection			IEC IP40
Degree of protection against electric shock			Class I
PTI(Tracking Resistance)			175
Ambient air temperature			125 ºC 60%RH below(No ice and dew)
Ambient air humidity			85% Rhbelow(about +5~+35 ºC)
Weight			Approx.39.7g

Prod Model:	V-16TA
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Theory:	Tilt Switch
Rated Current:	16A
Operating Frequency:	Mechanical 60 Cycles/Min
Package:	300PCS/CTN
Carton Size:	370mm315mm360mm
Certificates:	Ce, CB, TUV, CQC, etc
Pressing Type:	Push-Button
Protection:	Dust-Proof
Size:	Small-Sized
Environment:	﹤250℃
Breaking Capacity:	Micro-Current
Breaking Form:	Single Type
Application:	Electric Heaters
Brand:	Universal
Certification:	RoHS
