Prod Model: |
S2100S |
IP Rate: |
IP65 |
Voltage: |
220V/380V |
Power: |
0.75-11kw |
Apply: |
Fan and Pump |
Control Mode: |
V/F Control |
Phase: |
1/3 Phase |
Output Frequency: |
0-400Hz |
Types: |
AC-DC-AC |
MOQ: |
1 PC |
Supply Power: |
AC 220V |
Application: |
Single-phase Transducer |
Output Type: |
Triple |
Principle Of Work: |
V/F Control Transducer |
Switch Mode: |
PWM Control |
Main Circuit Type: |
Current |
Function: |
Fan and Pump |
Brand: |
Machtric |
Product Description

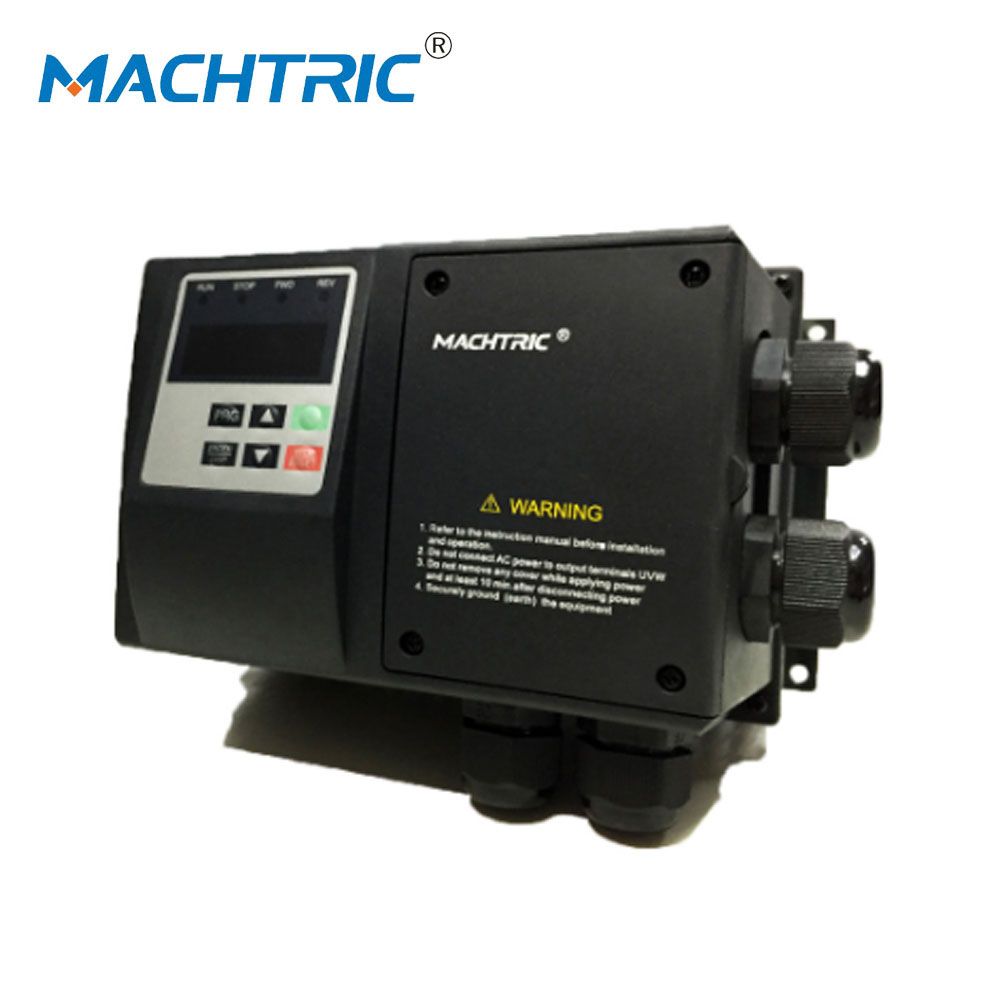

AC frequency inverter 220V 380V motor speed drive S2100SProduct specification: Model | S2100S |
Input | Rated voltage,Frequency | 3 AC 380V / 220V; 50-60 Hz |
Voltage Range | 380V: 330V~440V;220V: 170-240V |
Output | Voltage Range | 380 V: 0~380 V; 220V: 0-220V |
Frequency Range | 0.10~400.0 Hz |
Control method | V/F control,Space verctor control |
Indication | Operating status/Alarm definiton/interactive guidance;eg,frequency setting,the output frequecy/current,DC bus voltage,the temperature and so on. |
Control Specification | Output Frequency Range | 0.10~400.00 Hz. |
Frequency Setting Resolution | Digital input: 0.01 Hz. Analog input:0,1% of maximum output frequency |
Output Frequency Accuracy | 0.01 Hz. |
V/F Control | Setting V/F curve to satisfy various load requirements |
Torque Control | Auto increase:auto riase torque by loading condition;Manual increase:enable to set 0.0~20% of raising torque |
Multifuncional Input Terminal | 8 multi-function input terminals,realizing fuctions including fifteen section speed control,program running, four-section acceleration/deceleration speed switch,UP/DOWN function and emergency stop and other functions |
Multifuntional Output Terminal | 3 multi-function output terminals for displaying of running,zerospeed,counter,external abnormity,program operation and other infornation and warnings |
Function description:1) plus pump, deduct pump
2) dormancy, awake
3) timing change pump
4) Anti freezing function
4) alarm: high voltage, low voltage, low water level
