| Prod Model: |
MSD |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia |
| Divide Ratio: |
Arbitrarily Divide |
| Fixed Out: |
Servo Alarm |
| Connected Devices: |
Can,RS485,USB |
| The Circuit Time Parameter: |
About 47us |
| Offset Setting: |
0-450r/Min |
| Color: |
Black |
| Dynamic Brake Function: |
The Main Power off,Servo Alarm ,Sevo off .Overtrav |
| Warranty: |
One Year |
| Size: |
Depend |
| Application: |
High Frequency Converter Transducer |
| Principle Of Work: |
Vector Control Transducer |
| Main Circuit Type: |
Current |
| Output Type: |
1/3 Phase |
Product Description
Welcome to Machtric Automation Equipment .
Download the catalog of Machtric Servo Drive as below :
https://drive.google.com/open?id=0B6CaUFVdbNQVeWZ6WHZxbWt3Q00
Download the manual of Machtric Servo Drive as below :
https://drive.google.com/open?id=0B6CaUFVdbNQVVUltdEg0T2d5QWc

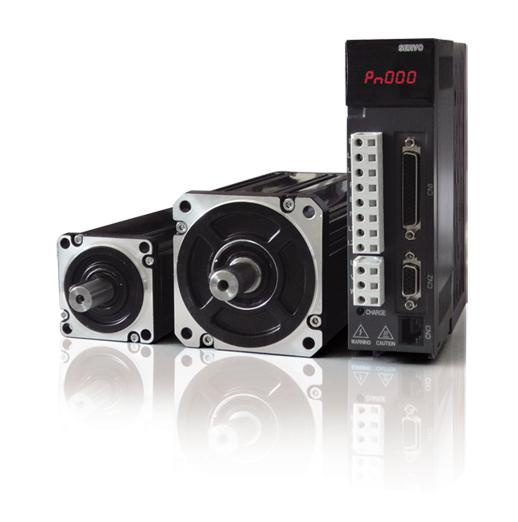

MSD Servo Drive
--Wide speed range ,the maximum is 6000r/min
--High precision positioning ,can reach 0.009
--High reliability ,all use international brands IC
--Fast response frequency ,strong overload capacity,no overshoot .
--Low frequency ,large torque output
--Anti-interference and self-protection are strong
--The German instrument motor control dedicated floating-point
processor,speed of operation is high to 150MHZ
--Support RS485 ,CAN,USB etc ,port
--The ATE automatic detection system, the product quality is reliable .
--Card type ultrathin structure,the appearance is
Beautiful.structure is compact
--According to the customers' requirement .
develop to meet the needs of customers.
The working current of servo drive
| The type of servo drive | Continuous output effective current (A) | Maximum output effective current (A) |
| MSD100-20A-2 | 1.6 | 4.8 |
| MSD100-40A-2 | 2.8 | 8.4 |
| MSD100-70A-2 | 3.8 | 11.4 |
| MSD100-150A-2 | 9.0 | 27.0 |
| MSD100-200A-4 | 8.4 | 25.2 |
| MSD100-350A-4 | 12.0 | 36.0 |
| MSD100-500A-4 | 17.0 | 51.0 |
| MSD100-700A-4 | 21.0 | 63.0 |
| MSD100-900A-4 | 26.0 | 78.0 |
Note: current parameter are the standard related to the maximum power ,if you have special requirepment ,Please relate this company and the agent of the compay .
Quanzhou Machtric Automation Equipment Co., Ltd., together with three leading enterprises and several affiliated organizations in China and Taiwan has been established to supply "Total Project Solutions" in Industrial Automation.Sanch is geared to integrate the development, manufacture and systems engineering for local and international clients alike.
Our professional teams of engineering, product development, manufacturing and integration staff, devote themselves to the development and application of motor, electric, electronic, microelectronic, information and control technology.
We continue to maintain close co-operation with scientific research institutions both at home and abroad, in order to provide "intelligent" products that not only offer the best solutions, but also have a "humanized" approach to functionality.
At present, our manufacturing capacity is over 100 thousand devices per annum.
This includes products such as:
A/C Frequency Inverters (INVERTER)
Thyristor power controller
Circular knitting machine
Intelligent Control Instruments
Peripheral equipment for Industrial Process Control (IPC)
Microcomputer Controllers for various applications and many others.
In order to service the Chinese market, we have already established dozens of marketing, distribution agents and service organizations, to cover the Northern, Eastern, Central and Southern areas.A Pathway Management System and CRM Customer Relationship Centre with high-efficiency logistic and linkage service has also been established.
SANCH have already applied their range of products and services to the following industries;Textile, dye, ceramic, transportation, building, metallurgy, chemical, light, military ---etc.
SANCH philosophy is to continually improve the electric management platform to account for all facets of applications, thus maximising the competitiveness of technology, quality, service and efficiently in accordance with the principle of satisfying our customers and creating excellent products.
SANCH actively promote a philosophy of, maximising production outputs and yet minimizing energy consumption, using modern technological developments.
Our goal is to achieve "Automation---Energy Saving---Green World", and we will try our best to improve the environment and society as a whole.
