Ad-S1220AA AC12V DC20A Switching Power Supply 240W
| Price: |
US $ 30-35/Piece |
| Min Order: |
50/Piece |
| Pay Type: |
L/C,T/T,Western Union,Paypal |
1.Main Features:>
Universal AC input /Full range
>Built-in EMI fliter
>High efficiency,Long life and high reliability
>Protections:Short circuit/Over load /Over Voltage/Over temperature
>Can be customized according to user selection ( Current and Voltage can be adjusted)
Certificated by
UL,TUV,CCC,CE,UL,CB,FCC,and RoHsThis 12V 20A power supply didn't have cooling fan. So it is very quiet for indoor use. Most 12V 20A power supply in the market include a noisy fan for cooling purpose. It worked with led strip lights and other device need constant voltage at the 12V such as CCTV cameras, 3D printers etc.
If you need more output power supply, Here is12V 30A power supply
2.Specifications:| MODEL | AD-S05500AA | AD-S09400AA | AD-S12300A | AD-S15240AA | AD-S24150AA | AD-S4875AA |
| OUTPUT | DC VOLTAGE | 5V | 19V | 12V | 15V | 24V | 48V |
| RATED CURRENT | 60A | 50A | 40A | 32A | 20A | 10A |
| CURRENT RANGE | 0 ~ 60A | 0 ~ 36A | 0 ~ 32A | 0 ~ 20A | 0 ~ 18A | 0 ~ 10A |
| RATED POWER | 300W | 450W | 480W | 480W | 480W | 480W |
| RIPPLE & NOISE (max.) | 120mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 120mVp-p | 120mVp-p |
| VOLTAGE ADJ. RANGE | 10 ~ 13.2V | 12 ~ 15V | 13.5 ~ 18V | 20 ~ 26.4V | 26 ~ 32V | 41 ~ 56V |
| VOLTAGE TOLERANCE | 1.0% | 1.0% | 1.0% | 1.0% | 1.0% | 1.0% |
| LINE REGULATION | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% |
| LOAD REGULATION | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% | 0.5% |
| SETUP, RISE, HOLD TIME | 200ms, 50ms, 20ms at full load |
| INPUT | VOLTAGE RANGE | 100 ~ 240VAC (110VAC input can be custom-made) |
| FREQUENCY RANGE | 47 ~ 63Hz |
| EFFICIENCY (Typ.) | 84% | 84% | 84% | 86.0% | 87.0% | 88% |
| AC CURRENT | 5.8A/220Vac |
| INRUSH CURRENT (max.) | Cold Start:70A/220Vac |
| LEAKAGE CURRENT | 3.5mA |
| PROTECTION | OVER VOLTAGE | | 105 ~ 135% of rate load |
| Protection type : Fold back current limiting, recovers automatically after fault condition is removed |
| Protection type : Hiccup mode, recovers automatically after fault condition is removed. |
| FAN CONTROL,O.T.P. | RTH1 or RTH250ºC FAN ON,45ºC FAN, 70ºC output shut down |
| ENVIRONMENT | WORKING TEMP. | -10 ~ +60ºC, 20 ~ 90% RH non-condensing |
| WORKING HUMIDITY | 20 ~ 90% RH non-condensing |
| STORAGE TEMP., HUMIDITY | -20 ~ +85ºC, 10 ~ 95% RH |
| TEMP. COEFFICIENT | 0.03%/ºC (0 ~ 50ºC) |
| VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes |
| SAFETY & EMC | SAFETY STANDARDS | Design refer to UL1950, TUV EN60950-1 |
| WITHSTAND VOLTAGE | I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC |
| ISOLATION RESISTANCE | I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC |
| EMI CONDUCTION & RADIATION | Compliance to EN55022 (CISPR22) Class B |
| HARMONIC CURRENT | Compliance to EN61000-3-2,-3 |
| EMS IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11;ENV50204,Light industry level,criteria A |
| OTHERS | MTBF | 138.6K hrs min. MIL-HDBK-217F (25ºC) |
| DIMENSION | 210*115*50mm(L*W*H) |
| PACKING | 0.8KG;30pcs/24Kg |
3.Model:
4.Circuit Block diagram

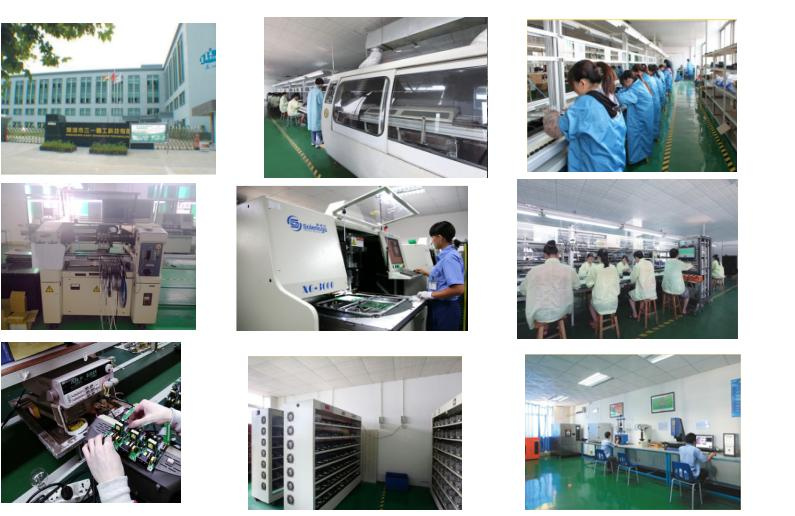

5.Factory Profiles
6.Certificate
7.Contact
SHENZHEN SANYI TECHNOLOGY CO.,LTD
Web: www.szsanyi.com
Attn:Rubychen
Phone:+86 15207552952
Tel: +86 755 28986673
Add: Floor 4, Block 1,HongJiaTai Industrial Area, XinTun Village,AiLian Community, LongGang District,Shenzhen 518172,China
| Prod Model: |
AD-S1220AA |
| Input Frequency Range: |
50/60Hz |
| Output Type: |
Single |
| Warranty: |
2 Years |
| Output Power: |
401 - 500W |
| Input Voltage: |
110-220V |
| Connection Mode: |
Series Switching Power Supply |
| Starting Mode: |
Self-excited Switching Power Supply |
| Voltage Regulating Mode: |
Frequency Modulation Type |
| Power Supplying System: |
Terminal Power Distribution Equipment |
| Certification: |
FCC |
| Brand: |
Sanyi Power |
SHENZHEN SANYI TECHNOLOGY CO. Ltd established in 2004 is a high-tech company integrating R&D, manufacture, and marketing. We are specialized in a series of products including switch power supply, adapter, LED power supply, LED driver, outdoor waterproof adapter, surveillance power supply, EPS power supply, adjustable light LED driver, and so on. These products are widely used in security & protection system, LED lighting and display, industrial control, commercial equipment, data communication, solar power inverter, etc. Our factory covers over 5, 000 square meters and operate under TUV(GMC) guidelines. Monthly, it outputs more than 2, 000, 000 power supply units.
We are equipped with all kinds of production and testing facilities including the automated production lines, the switch power supply test system, the EMC testing system, RoHS testing instruments, environment testing chamber, high temperature aging room, etc. Every product has a full load rate of 100%, and the annual failure rate is less than 0.2%. With excellent quality and service, our products have been always popular and satisfactory around the world. The brand "AP Electric" affiliated to SANYI has become one of the most famous brand in Chinese power supply market.
We also apply the ERP enterprise resource management system to optimize our enterprise workflow. An energetic, intelligent, and creative R&D team keeps innovating and ensuring our lead in this industry. Till now, a considerable amounts of national patents have been achieved. Meanwhile, we adhere "AP electric, seeking increasing perfection" as our belief. Our company has been qualified by ISO 9001 certificate of quality system, and all of our products have been certificated by UL, TUV, CCC, CE, UL, CB, FCC and RoHS.
