| Prod Model: |
TUL |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Measuring Range: |
0.5~30m |
| Resolution: |
Range<10m:1mm; >10m: 10mm |
| Frequency: |
~40kHz |
| Launch Angle: |
6 - 12 |
| Blind Area: |
0.20~0.9m |
| LCD Display: |
Available |
| Supply Voltage: |
220VAC/24VDC |
| Output Signal: |
4~20mA Standard (or Optional RS485.RS232 When Orde |
| Degree Of Protection: |
IP65.IP67.IP68 |
| Warranty: |
1 Year |
| Type: |
Ultrasonic Sensor |
Product Description

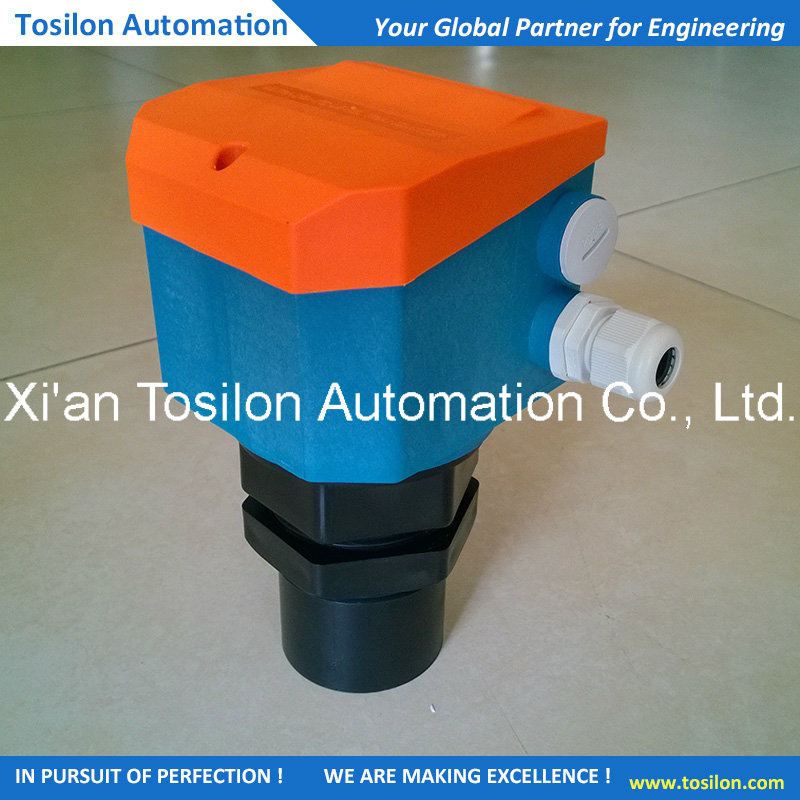

Tosilon Adjustable Ultrasonic Liquid Level Transmitter for Water Tank (CE, Ex Approved)
Design and Manufacturing according to CE Standard
Introduction
Product has automatic power adjustment, gain control, to a false target, and temperature compensation. U. S. Imports of chip processing and advanced testing computing technology to improve the measurement accuracy of the instrument, for the interference signal suppression function to ensure that the real measurement results. The products can be widely used for a high degree of measurement of the level of a variety of liquid and solid materials can also be used for distance measurement.
Brief Technical Paramters
Range: 0.5~30m
Accuracy: 0.25%, 0.5%, as required
Resolution: Range<10m: 1mm; >10m: 10mm
Frequency: ~40KHZ
Launch Angle: 6o - 12o
Blind Area: 0.20~0.9m
LCD Display: Available
Supply Voltage: 220VAC/24VDC, as required
Output Signal: 4~20mA Standard (Or optional RS485. RS232 when ordering)
Maximum Load: 750 Ohm
Case Material: PA6. ABS
Degree of Protection: IP65. IP67. IP68
Ambient Temperature (oC): -20~+55
Mounting Thread: M66x3, as required
For Technical Requirements, please kindly contact Tosilon. We will provide you with detailed technical requirements. Thank you!
For more information, please contact Tosilon
Your Global Partner for Automation
www.tosilon.com
| Power Supply | 24V DC |
| Output | 4-20mA |
| Measuring Range | 0~5m, 0~10m, 0~15m, 0~20m, 0~25m, 0~30m |
| Display | 6-digit LCD |
| Launch Angle | 6 o to 12 o |
| Level Mode | Current Distance / Current Level |
| Blind Area | 0.25~0.90m, it is in proportion to measuring range. |
| Resolution | <10m, 1mm |
| ≥10m, 10mm |
| Class of Protection | IP66, IP67 |
| Accuracy | 0.25%F.S, 0.5%F.S |
| Ambient Tempt.( o C) | -15 to +55 |
| Relative Humidity | <95% |
| Installation Type | Thread Connection / Flange |
| Thread Spec. | M66x3, as required |
| Enclosure | PA6 GF30, Aluminium, as required
|
As a China leading mass flowmeter manufacture, Tosilon Automation, establish in 1989, has been engaged in and leads the advanced technology in Coriolis Mass Flow Meter, Density Meter and Flow Metering System which are more effective, efficient and innovate.
In the past 20 years, by cooperating with Northwestern Polytechnical University, Huazhong University of Science and Technology, Xi'an Shiyou University and CSIC Xi'an Dong Yi Science Technology & Industry Group Co., Ltd, financially supported by Provincial Science Technology Program, numbers of achievements and breakthroughs had been made in product-design and production process.
As a leading company in industrial measuring field in China, Tosilon offers complete solutions to flow, density, level, pressure, explosion protection, oil condition monitoring systems, etc. Presently, Tosilon's instrumentation has acquired certifications including CE, FCC, IECEx, ATEX. By years of efforts in improving and modifying, Tosilon has its featured products professionalized to meet the needs from major industries covering Oil & Gas Industry, Petrochemical Industry, Chemical Industry, Mineral Industry, Food Industry, Wine Industry, Paper Making, Power Plant, Drilling Mud Field, Pharmaceutical Industry, aviation, etc. Tosilon is always committed to the innovation and improvements in the technology, providing advanced products, solutions, and offering professional services to clients.
