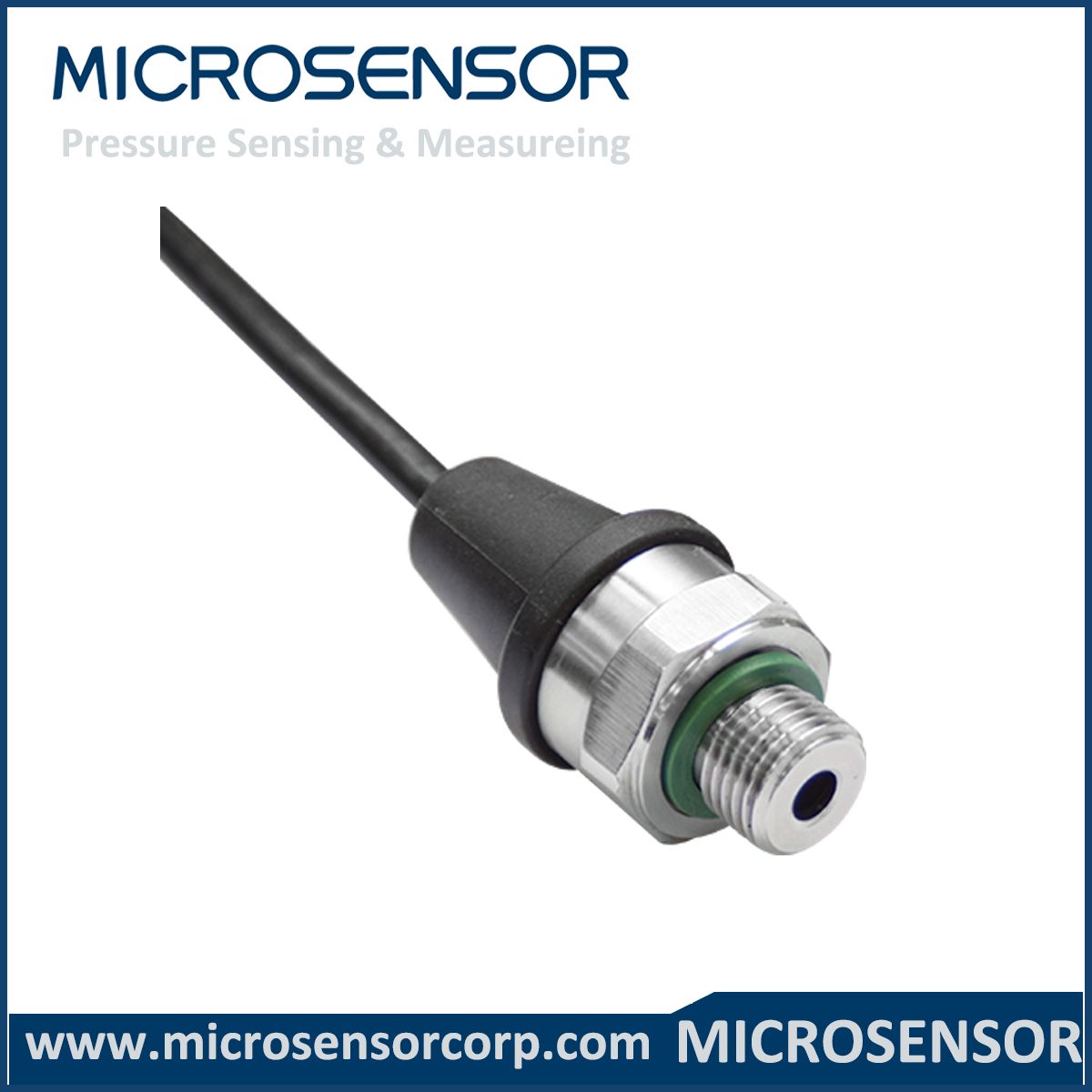

Air 2-Wire 6 Psi Water Pump Pressure Sensor MPM4501

Features
•Pressure range: 0.6MPa, 1MPa, 1.6MPa, 2MPa for option
•Micro-fused silicon technology without filling oil
•Resistance to water hammer, with high overload pressure ability
•Compact construction, cost efficiency
•Temperature compensation and linear correction

Application
•Variable frequency pump
•Energy and water treatment system
•Building automation system
•Compressor

Introduction:
MPM4501 Pump pressure sensor is a cost-effective product which adopts micro-fused silicon pressure sensor and special designed amplifier circuit. With linear correction and temperature compensation, it can effectively resist water hammer effect, solve the problem of momentary overload pressure and also could meet different needs for pressure measurement and control in various environmental conditions. The product is batch produced in automatic production line and all the specifications are strictly controlled. The whole transmitter experiences a strict testing for element, semi-finished and completed product and aging screening, which makes it more stable and has a good consistency. It could be widely used in the fields like VF constant pressure water supply, compressor, building automation system and water treatment etc.

Specification:
1. Pressure range: 0MPa~0.6MPa, 1MPa, 1.6MPa, 2MPa
2. Accuracy: 1.0 (within compensated temperature range)
3. Zero thermal drift: ±0.02 %FS/ºC Span thermal drift: ±0.02 %FS/ºC
4. Overload pressure: 2×FS Burst pressure: 6MPa
5. Power supply: 5±0.5V DC Output signal: 0.5V~4.5V DC
6. Compensated temperature: 0ºC~70ºC Storage temperature: -20ºC~100ºC
7. Insulation resistance: ≥100MΩ@250V DC
8. Media compatibility: compatible with stainless steel 17-4PH and NBR
9. Protection: IP67

Construction Material:
1. Housing: stainless steel 1Cr18Ni9Ti
2. O-ring: NBR
3. Sensor: stainless steel 17-4PH
4. Plug housing: PBT
5. Cable: Φ5.1mm PE cable with 3-core Cable sheath: PA

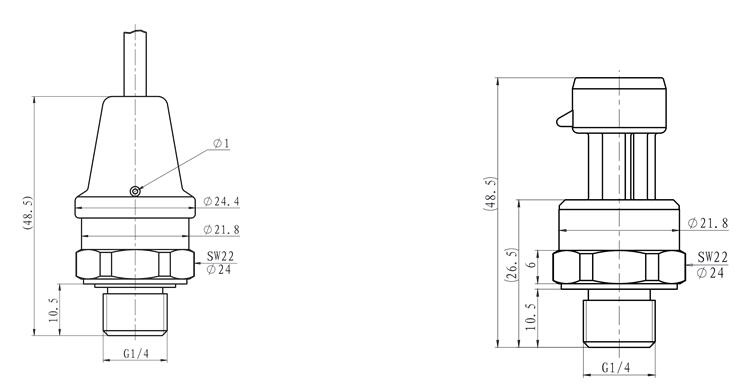

Outline Construction:
(Unit: mm)

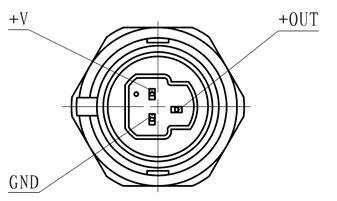

Electric Connection:

Cable	Plug
Red (+V)	+V
Green (+OUT)	+OUT
Black (GND)	GND

Order Guide:

MPM4501	Pump Pressure Sensor
	Range	Measured range: 0MPa~0.6MPa,1MPa,1.6MPa,2MPa
	[0~X]MPa	X: actual measured range
		Code	Output signal
		K	0.5V~4.5V DC
			Code	Others
				Plug
				Cable (default: 0.5m)
				G1/4 male
				G3/8 male

MPM4501 [0~1]MPa K the whole spec.

Order Note:
1. If you have special requirement, please contact our company freely and also note it in the order;
2. Customization is available.

Prod Model:	MPM4501
Construction Mterial:	Stainless Steel
Output Signal:	0.5V~4.5V DC
Storage Temperature:	-20ºC~100ºC
Compensated Temperature:	0ºC~70ºC
Thread Type:	M, G, R. NPT et.as you require
