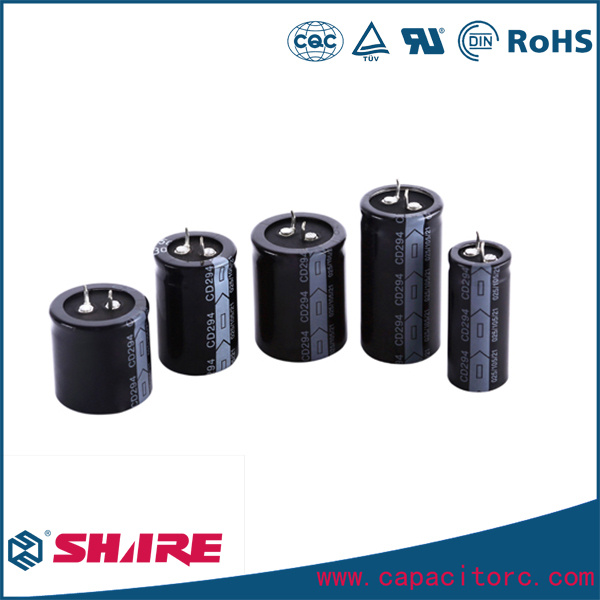

Aluminium Electrolytics Capacitors Starting Capacitor

Name: Aluminium Electrolytics Capacitors Starting Capacitor
Brand: all-electronics-online.com
SKU: 802077345
Availability: InStock
Rating: 4.9 (57 reviews)

Price:	US $ 0.1-1/Piece
Min Order:	1000/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Aluminium Electrolytics Capacitors 50V Audio Capacitor

Capacitor Features:
1. Load life 3000 hours at 105ºC.
2.Wide temperature rang,small size,large capacity.

Technical Data and Sepecifications:

Item	Characteristics
Temperature	-40~+105ºC											-25~+105ºC
Voltage	6.3~100VDC											160~450VDC
Capacitance	0.1~10000μF											0.47~220μF
Leakage Current	I=0.01CV or 3(μA) whichever is greater.											I=0.03CV+10(μA)
	(After rated voltage applied for 2 minutes)
Capacitance	±20% at 120Hz, 20ºC
Dissipation Factor	WV	6.3	10		16			25		35			50		63~100		160		450
	tanσ	0.25	0.20		0.17			0.15		0.12			0.10		0.10		0.20		0.25
	Tanσ shall be added 0.02 with increase of every 1000μF, when capacitance is over 1000μF.
Stability & Impedance	WV/z(120hZ)			6.3	10		16		25		35~100			160~250		315~350		350~450
	Z-25ºC / 20ºC			8	6		5		3		3			7		10		15
	Z-40ºC / 20ºC			10	8		6		4		3			-		-		-
Load Life	Meet following requirements after applying rated voltage for 2000hrs at 105ºC
	Capacitance Change					Within ±20% of initial value
	Dissipation Factor					Not more than 200% of the specified value
	Leakage Current					Initial specified value or less
Shelf Life	Meet the same requirements as endurance after applying without voltage for 1000hrs at 105ºC.
Applications	For high quality, reliability application, high CV product.

Prod Model:	CD13
Type:	Aluminum Electrolytic Capacitor
Application:	Refrigerator
Package Type:	Through Hole
Capacitance:	500UF ~20000UF

SHARE ELECTRONIC Company is a world-leading capacitor producer.

Our company was set up in 2008, NingGuo province. Since then, our company has

Been drived by an innovation system which centered on the needs of our

Customers. Such kind of system provid us a sustaining and healthy development

And help us to become one of the largest capacitor producer around the world. We

Has an annual aluminium electrolytic capacitor production capacity of 500 million

And our customers are covered more than 30 countries and regions all over the

World.

Our company has a scientific mangement and strong technical force. We estabished

A quality control system in accordance with the idea that quality is the basis of

Survival.

In the Internet era, we implement two strategic transformation. One is the business

Transformation. It means that we paid more attention on saling service instead of

Saling products. The other is the business mode transformation. We changed our

Business mode from the traditional one to a win-win situation. The orgainzational

Structure of SHARE is changed corresponding to the needs of the market.

It forms the organizational strucuture of flat network with the innovative basis of

Independent marketing units, driving the employees directly facing the market to

Acquire and satisfy the fragment and personnalized demand of the customers.

SHARE is becoming the leading global brand with the innovation through a winwin

Business form in the era of the Internet.
