Aluminum Alloy High Efficiency Pen-Displacement Sensor

Name: Aluminum Alloy High Efficiency Pen-Displacement Sensor
Brand: all-electronics-online.com
SKU: 821598135
Availability: InStock
Rating: 4.5 (33 reviews)

Price:	US $ 130-150/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

Prod Model:	Lvdts-2mm
Excitation Power:	5kHz(1-10kHz)
Warranty:	12 Months
Displacement Range:	2mm,5mm,10mm
Dybamic Characteristic:	10Hz (Max)
Material:	Aluminum Alloy

Product Description

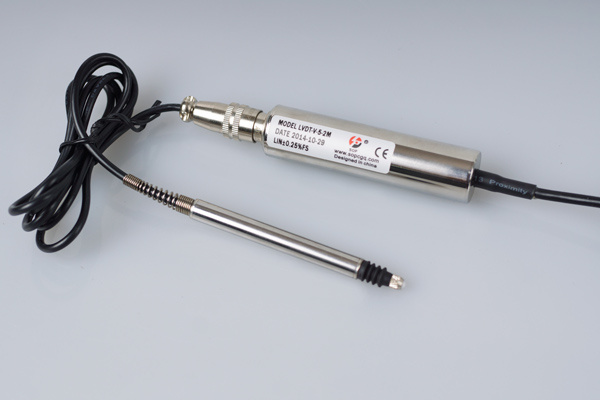

Aluminum Alloy High Efficiency Pen-displacement Sensor

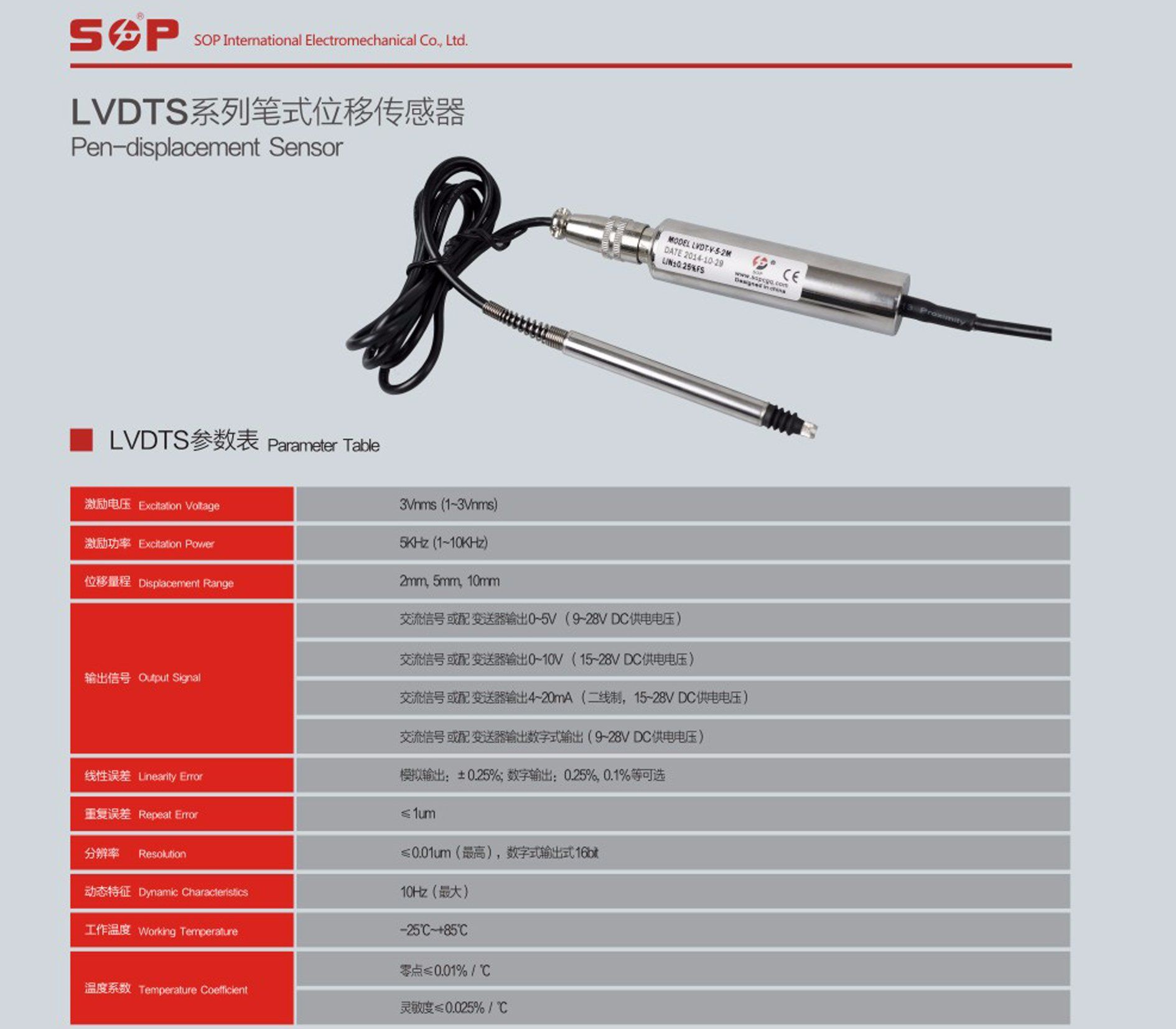

Pen-Displacement Sensor Parameter Table:

Excitation voltage	3Vnms(1~3Vnms)
Excitation power	5Hz(1-10KHz)
Displacement range(mm)	2, 5, 10
Output signal	Ac signal or Transmitter output 0-5V( 9-28V DC supply voltage )
	Ac signal or Transmitter output 0-10V(15-28V DC supply voltage )
	Ac signal or transmitter output 4-20mA(two wires , 15-28V DC supply voltage)
	Digital output (9-28V DC supply voltage)
Linearity error	Analog output:±0.25%,±0.5% or others, digital output:0.25%,0.1% or others
Repeat error	≤1um
Resolution	≤0.01µm(most ),digital output: 16bit
Dynamic characteristics	10Hz (most )
Working temperature	-25°C~+85°C
Temperature coefficient	Zero point ≤0.01%/°C
Temperature coefficient	sensibility≤0.025%/°C

Product Features:
Aluminum alloy shell, lightweight appearance
Nti-corrosion and anti rust, usage is very long
Rugged construction, compact size, easy to install

Displacement sensor Advantage:
*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.
