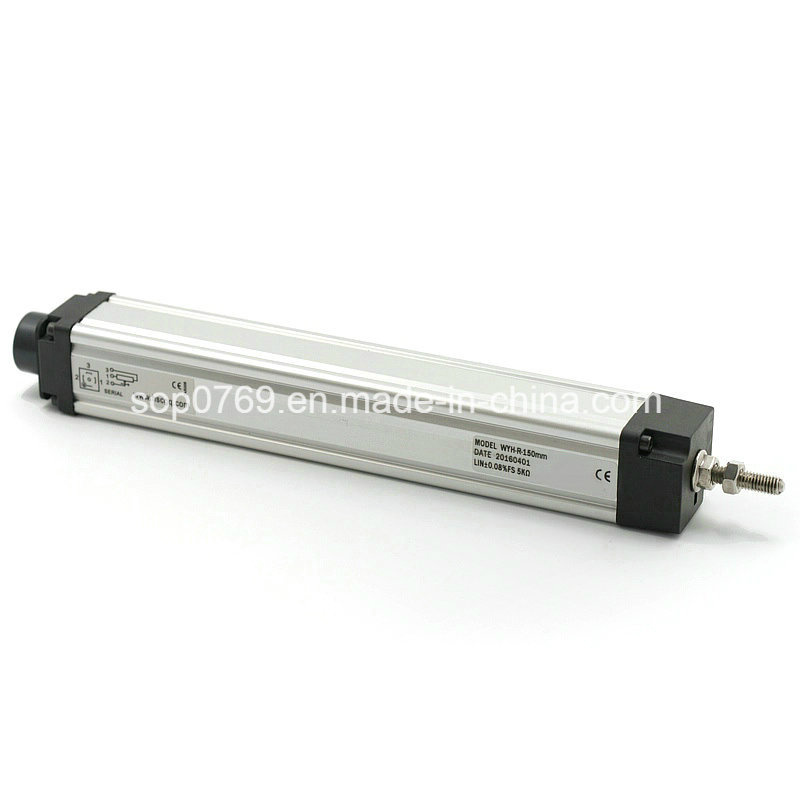

New Design Optical Displacement Sensor From China

Name: New Design Optical Displacement Sensor From China
Brand: all-electronics-online.com
SKU: 689078631
Availability: InStock
Rating: 5 (56 reviews)

Price:	US $ 55-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

High quality captive displacement sensor from China

We offer one of the largest variety of Linear Draw Wire Sensors in measuring ranges from 100mm up to 100000mm. A variety of configurations are available, providing alternative features. A number of outputs are available, including Poteniometer, Voltage, Current,and Quadrature Encoder.

1. Principle

Draw-wire displacement sensor measures linear movements using a highly flexible steel cable. The cable drum is attached to a sensor element which provides a proportional output signal.

2. Features

1. rugged construction, compact size, easy to install

2. economic cost, and cost savings for customers

3. cylinders, testing machines and other industry has achieved large-scale applicatIons, reliability

3. Displacement sensor Advantage

*Absolute encoder, multi-output.

* Compact structure and light weight.

* Straight line measurement, easy to install.

* Anti-dust, anti-vibration, durable.

* Groove for cable, each circle trip is the same, high repetition accuracy.

* Multi-strand soft stainless steel rope, corrosion-resistant type.

* Economic and practical.

Key Features

0 to 5000mm measuring range

Rugged, compact design

Profiled enclosure

Analog wire sensor

Protected to IP67

CE Approved

Note:

Wrong wiring may damage the sensor

Make sure wire in the power off state

Do not let go after wire is pulled out, otherwise the sensor could be easily damaged

Do not exceed the total length of the wire

Please ensure the cleanness of the equipment and wire line to prolong the service life

Avoid external force

Package :

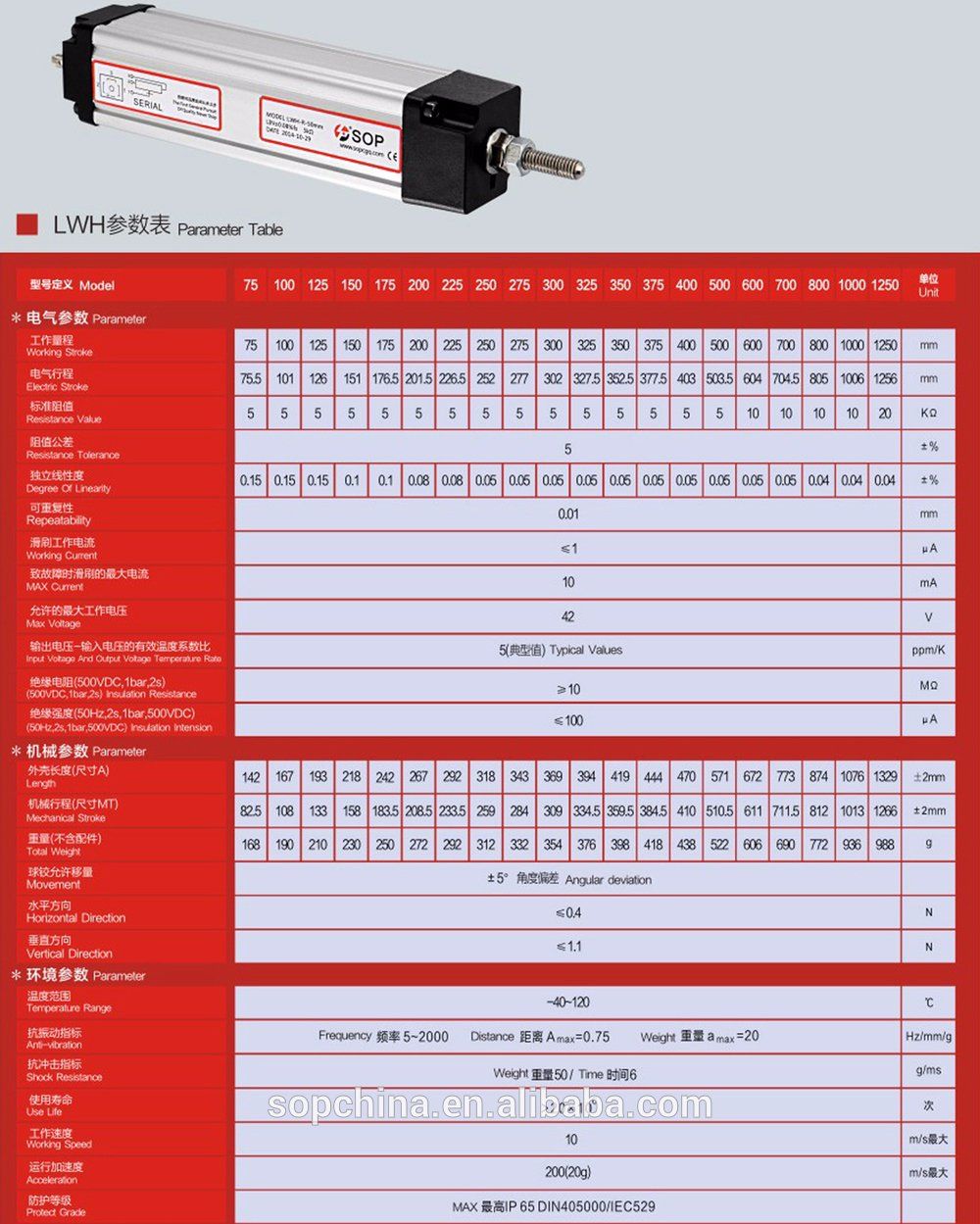

Prod Model:	KTC-75mm
Feature:	Linear Excellent, High Speed
Max Stroke:	1250mm
Warrenty:	12 Months
Working Speed:	10m/S
Material:	Aluminum Alloy

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
