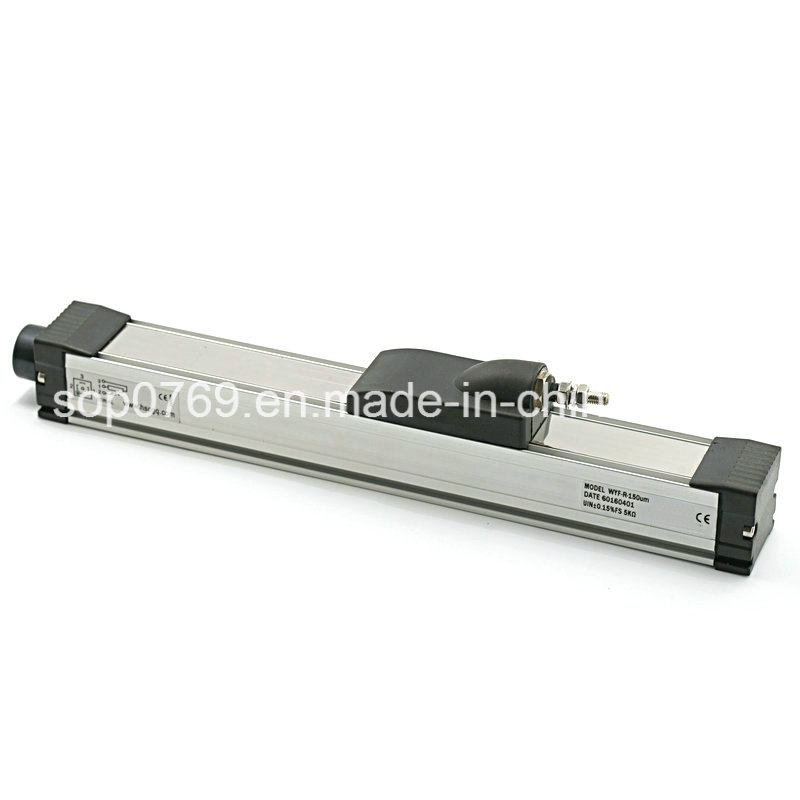

High Speed Wood-Working Machinery Slider Displacement Sensor

Name: High Speed Wood-Working Machinery Slider Displacement Sensor
Brand: all-electronics-online.com
SKU: 820480995
Availability: InStock
Rating: 4.7 (145 reviews)

Price:	US $ 100-120/Piece
Min Order:	1/Piece
Pay Type:	L/C,T/T,D/P,Western Union,Paypal

Contact Supplier

Showroom Product Company Profile

High Speed Wood-working Machinery Slide Displacement Sensor

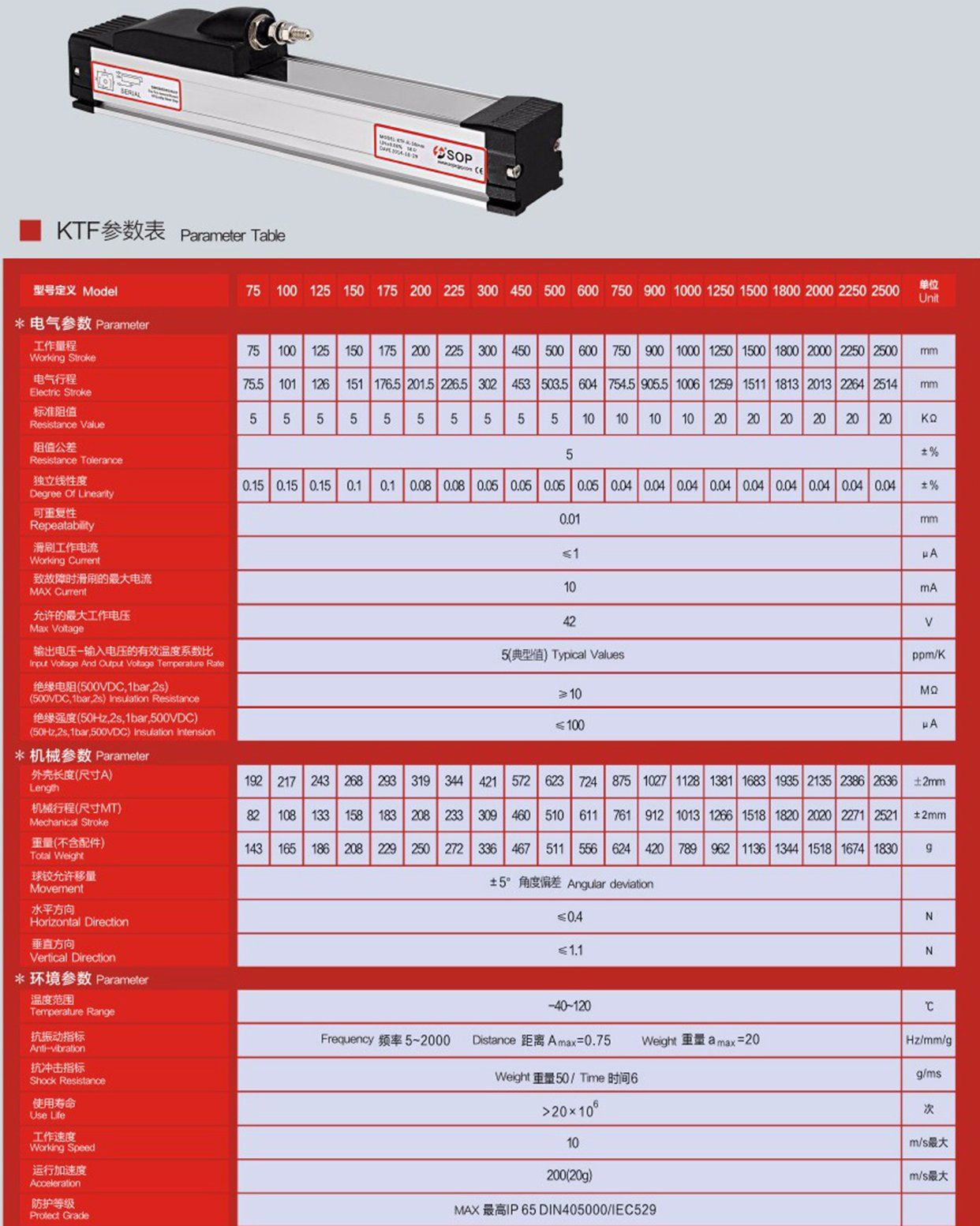

Repeatability	Working Speed	Working Current	Working Stroke	Temperature Range	Horizontal Direction	Vertical Direction
mm	m/s	μA	mm	ºC	N	N
0.01	10	≤1	75-2500	-40~120	≤0.4	≤1.1

Slider Sensor feature:

No pole design
Spherical
Usage life is longer, Times could reach fifty million
Non-linearity smaller
Resolution rate is higher than 0.01mm
High speed
Din43650 standard plug and socket
Protection grate is ip65(install down is ip57)
Could equip with voltage and current (2line, 3line) module

Displacement sensor Advantage

*Absolute encoder, multi-output.
* Compact structure and light
* Straight line measurement, easy to install.
* Anti-dust, anti-vibration, durable.
* Groove for cable, each circle trip is the same, high repetition accuracy.
* Multi-strand soft stainless steel rope, corrosion-resistant type.
* Economic and practical.

We offer one of the largest variety of Linear Draw Wire Sensors in measuring ranges from 100mm up to 100000mm. A variety of configurations are available, providing alternative features. A number of outputs are available, including Poteniometer, Voltage, Current, and Quadrature Encoder.

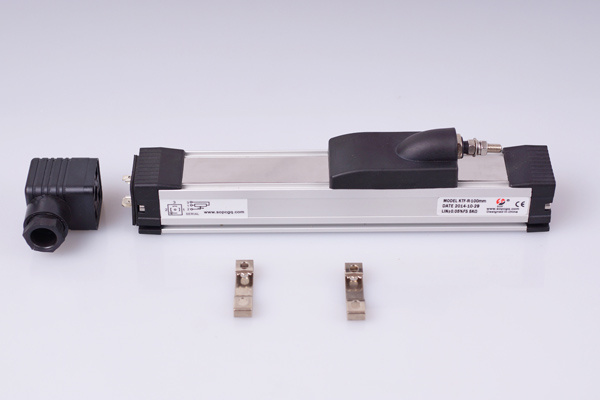

Pakage:

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.

Prod Model:	KTF-100mm
Application:	Wood-Working Machinery
Feature:	High Speed, Linear Displacement
Working Speed:	10m/S
Warranty:	12months
Material:	Aluminum Alloy
