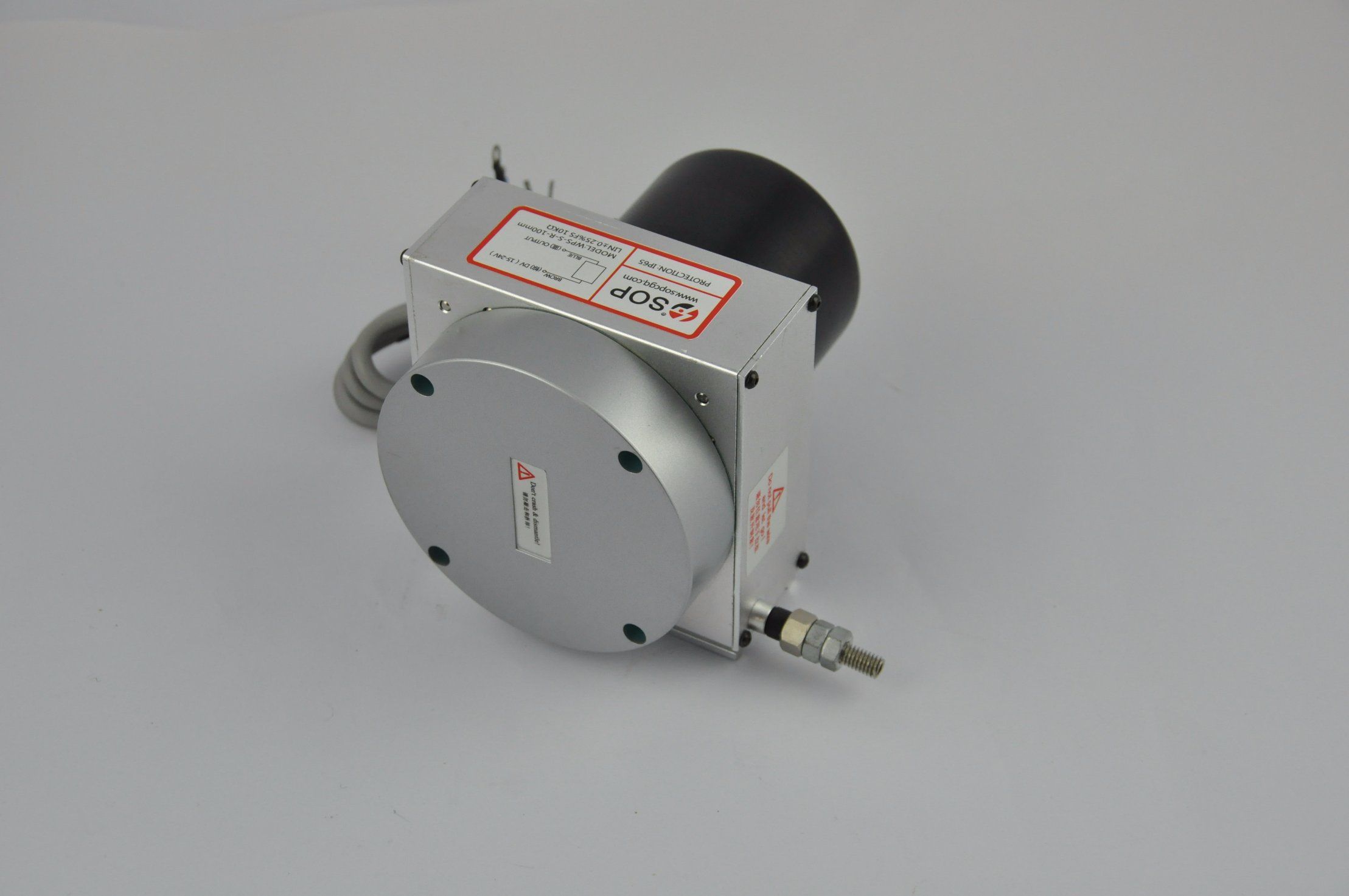

hot sale High accuracy Wire Rope Sensor

We offer one of the largest variety of Linear Draw Wire Sensors in measuring ranges from 100mm up to 100000mm. A variety of configurations are available, providing alternative features. A number of outputs are available, including Poteniometer, Voltage, Current,and Quadrature Encoder.

1. Principle

Draw-wire displacement sensor measures linear movements using a highly flexible steel cable. The cable drum is attached to a sensor element which provides a proportional output signal.

2. Features

1. rugged construction, compact size, easy to install

2. economic cost, and cost savings for customers

3. cylinders, testing machines and other industry has achieved large-scale applicatIons, reliability

Repeatability	Working Speed	Working Current	Working Stroke	Temperature Range	Horizontal Direction	Vertical Direction
mm	m/s	μA	mm	ºC	N	N
0.01	5	≤1	10-100	-40~120	≤0.4	≤1.1

3. Displacement sensor Advantage

*Absolute encoder, multi-output.

* Compact structure and light weight.

* Straight line measurement, easy to install.

* Anti-dust, anti-vibration, durable.

* Groove for cable, each circle trip is the same, high repetition accuracy.

* Multi-strand soft stainless steel rope, corrosion-resistant type.

* Economic and practical.

Key Features

0 to 5000mm measuring range
Rugged, compact design
Profiled enclosure
Analog wire sensor
Protected to IP67
CE Approved

Note:

Wrong wiring may damage the sensor

Make sure wire in the power off state

Do not let go after wire is pulled out, otherwise the sensor could be easily damaged

Do not exceed the total length of the wire

Please ensure the cleanness of the equipment and wire line to prolong the service life

Avoid external force

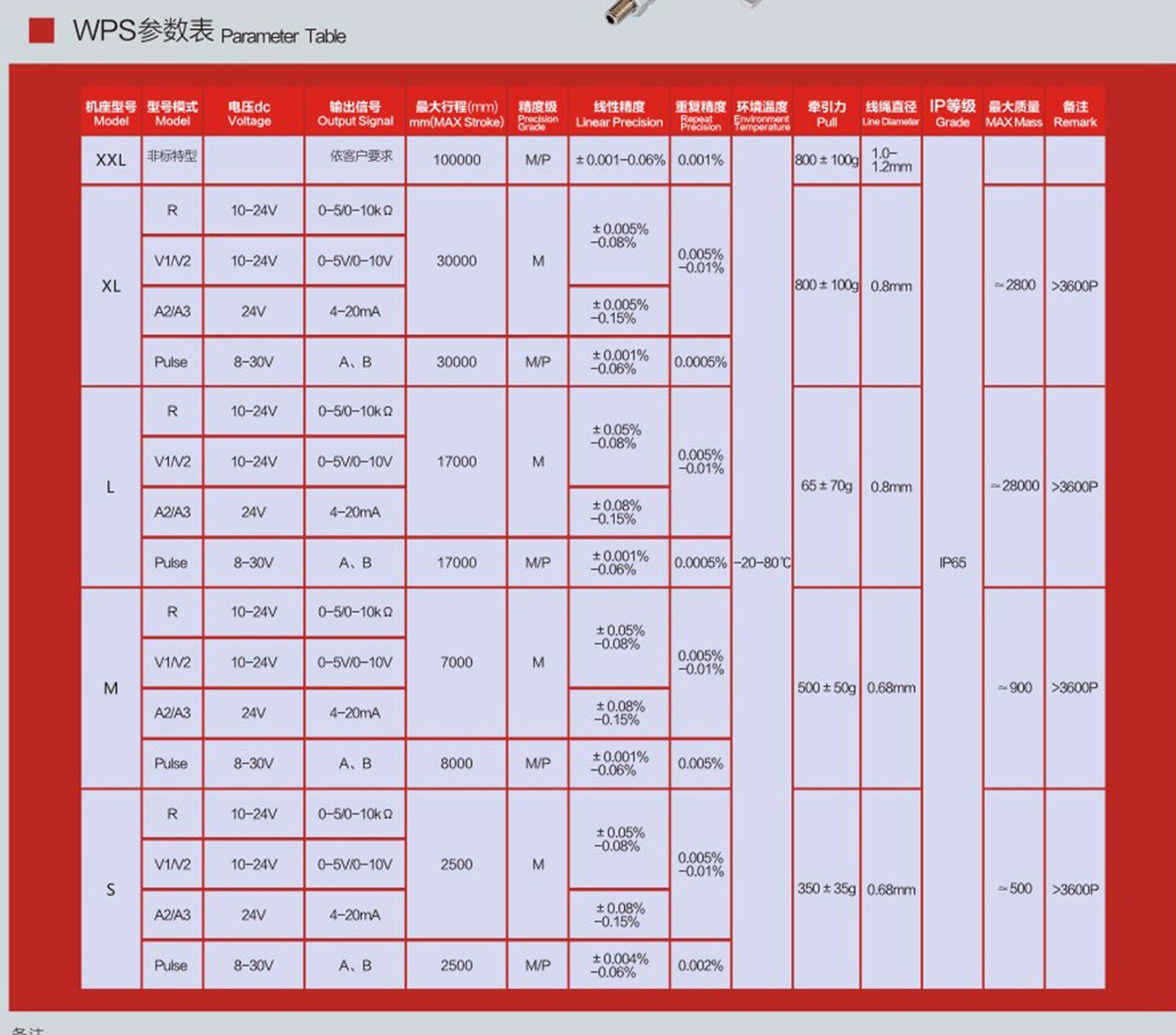

Prod Model:	WPS rope sensor
Repeatability:	0.01mm
Pricision Grade:	M/P
Max Stroke:	10-100000mm
Warrenty:	12 Months
Material:	Aluminum Alloy
