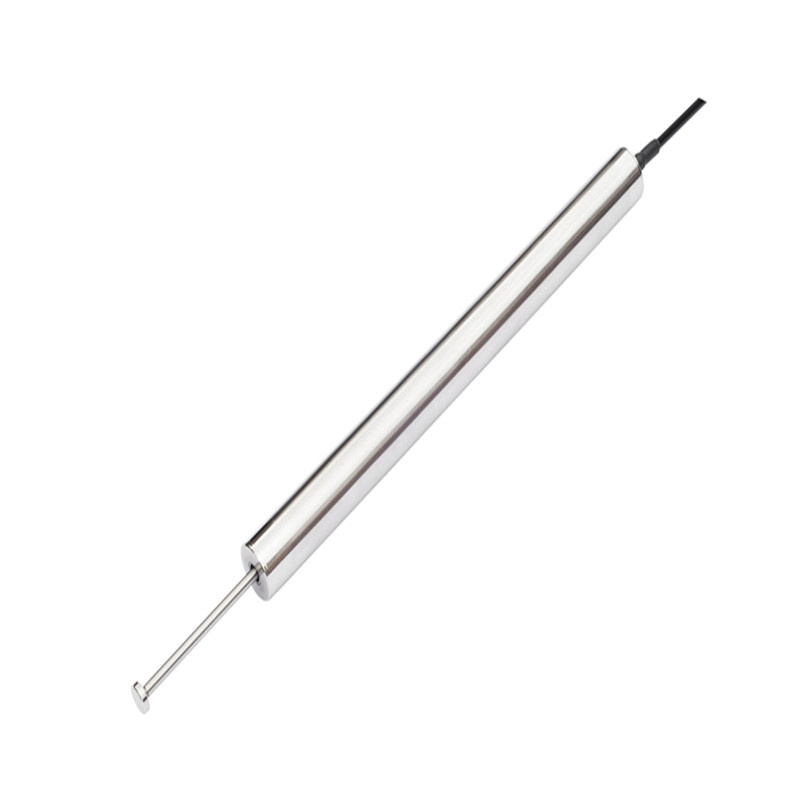

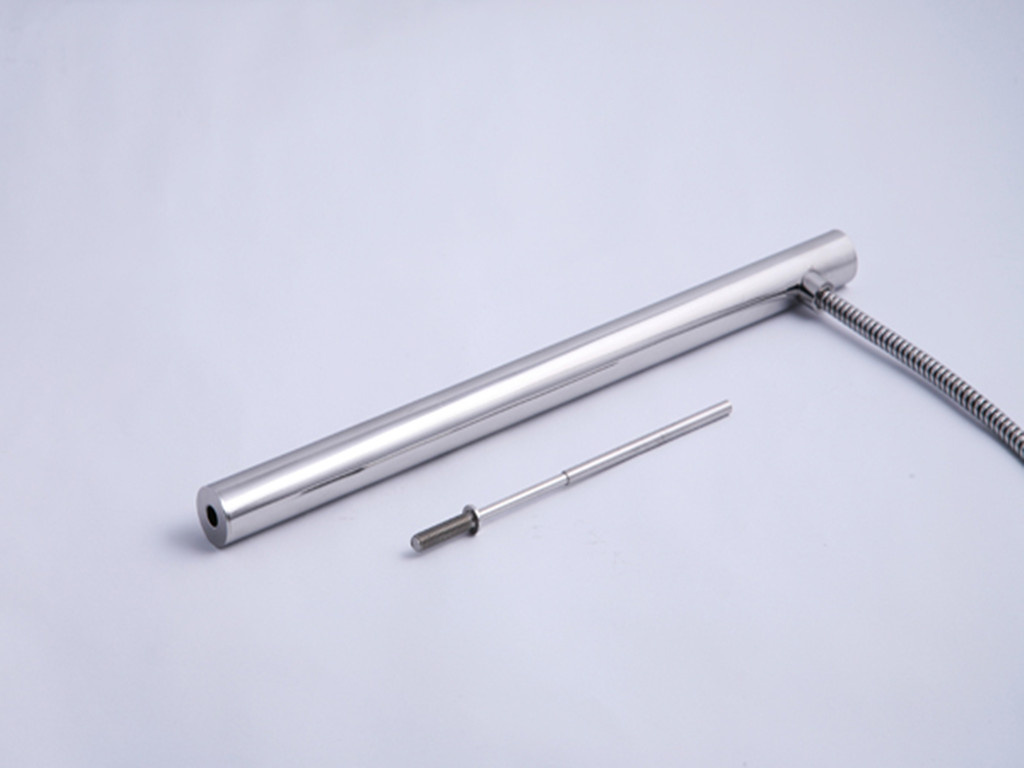

LVDT Short Distance Displacement Addy Current Transducer for Custom

eter	SDVG12 Series
Displacement Range(mm)	2	2.5	5	8
Dimension A(mm)	68	112	115	121
Dimension B(mm)	19.6	20.3	23.3	30.3

LVDT is widely applied in Aerospace, Machinery, Construction, Textile, Railway way,Coal mine, Metallurgy, Plastic, Chemical industry and Academic research,which is used to measure the distance, vibration,thickness, expansion and so on.
DC-Operated LVDT performs excellently by 9-28 voltage DC power supply,suit able for high precision and high repeatability measurement, output standard signal 0-5v or 4-20mA to be identified by computer or PLC. We also provide digital output.

After-sale Service
Experienced suggestion for sensor installation and use.
12 months warranty. Long-term technical support.
Our warranty doesn't include misusing and man-made damages.

Common Problems and solutions:
1. insufficient power supply capacity Zhao-----electronic ruler shows fluctuations to provide a stable power supply capacity
2. FM interference and electrostatic disturbance----electronic device displays the number fluctuation signal lines and electric lines to separate on-line slot
3. display data regularly beat, or fail to display data----check that the line is broken or shorted
4. caused by poor installation will display digital watches----install need for neutral linear displacement sensor is very good, but parallelism can allow +-0.5MM errors, point can allow +-12 of error
5. sensor wiring error----correctly connect the power cord and output lines.
Technical knowledge
Electrical factors that affect the accuracy:
1. two-wire current output A2, maximum load, linear precision lower than minimum load 0.02%FS
2. three-wire current output type A3, maximum load, linear precision lower than minimum load 0.04%FS
3. voltage-output V1,V2 for empty, you need to load, load resistance cannot be less than 500kΩand precision than when you unloaded decreased 0.25%FS
4. resistance output type R-load type, you need to load, load resistance cannot be less than 500kΩ and accuracy than when you unloaded decreased 0.25%FS.

Prod Model:	SDVG12
Dymatic Characteristics:	Max 10Hz
Power Supply:	AC
Application:	Custom Short Distance Transducer
Output:	Digital or Anolog
Repetitive Error:	Less 0.01% of Fs
Material:	Aluminum Alloy

Founded in 1994, SOP Mechanical & Electrical Co., Ltd is specilized in manufacturing high pressure and high efficiency air blowers, precision vacuum pumps and parts, the tools. Products are sold widely in the demestic and overseas market. It gets high reputation.

High pressure air blowers are widely applicable for the machinery, exhaust, of the powder and granules, the suction conveyance, the liquid agitation, bottle packing, combustion the air supply to the aquatics, cooling of the radiation equipments and the environments in the manufacture industries.

We possess over 30 engineers and technicians. Work on the area of 6000 square meters. It is divided into blower R & D, Production Dept. Electric Motor R & D, Production Dept, Vacuum Pump R & D, Production Dept. It has all the advanced and necessary lathes, driller, broacher, balancing machine, constant temperature over etc.

Welcome customers from all countries, we firmly provide you quality products and perfect after-sales services.
